off grid split wall mounted solar ac air conditioners for home with CE

MODEL : AC/DC-24000BTU

LEAD TIME : 7-15days

PRODUCT ORIGIN : CHINA

SHIPPING PORT : GUANGZHOU/FOSHAN

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Whatapp:+86 13690853732

Produt Details

AC/DC solar air conditioner 24000BTU system configuration:

SUNCHEES 24000BTU Solar Air Conditioner System

System Basic Information

Solar panel rated output power: 3000W

12 hours at night+daytime when there is enough sunshine

Solar panel

Solar panel

FS500W mono solar panel

Vmp:54V  Voc:63V

Imp 9.26A   Size : 2090*1106*35mm

25 years life time  (CE TUV) 10 years warranty

Glass:3.2mm Tempered

Terminal block:: IP65 with MC4 connector

Connect way:2pcs panels in series, 3 series in Parallel connect to charge controller

Solar charge controller

Solar charge controller

Solar charge controller : CP48V/60A

Charger efficiency :99%

Charging mode intelligent control

Size :368*290*127mm , weight :2.8kg

24000BTU Air conditioner

 Air conditioner

Air conditioner model: DC 48V/24000BTU

Power supply : cooling +Heating

5 years warranty for compressor

EER W/W :4.98  Cooling Rated current :27.29A

Starting current: 3.5A, Max. Current: 37.5A

Indoor/Outdoor noise level:≤45/40/35dB/<56dB

Ambient temp (cooling/heating):18~50℃/-15-34℃

Application area:30-45m2

Indoor unit size :1040*220*327mm   16.5KG

Outdoor unit size :910*340*700mm  62KG

Gel Battery

Gel Battery

Capacity:12V/150AHfull sealed

Solar power Gel battery,

Service life:5-6 years ,

Size:484*171*214mm

Connect way:4PCS in series .2 series in Parallel

panel rack

panel rack panel rack

(Slope)      (Flat)

Slope Rooftop or Flat rooftop

wind load:55m/s,snow load:1.5kn/m2

structure :Anodized Aluminum + stainless steel, Angle adjustable, 10 years warranty



Cables

 Cables

4mm2 pv cable 100M

terminals and MC4

battery connect terminal

DC breakers

Advantage:

  • Low energy consumption,solar power utilization rate more than 95%
  • Saving electricity 50%-80%
  • No battery,no controller,solar panel connect directly
  • Economical price
  • 24hours working per day

Application:

  • Suitable for place with stable 220V AC city grid power supply and mostly use the air conditioner at daytime.
  • Packing details:
  • Solar panels are packed in carton and pallet
  • Air conditioner unit is packed in Carton with Polyfoam

Our campany:

Corporate environment

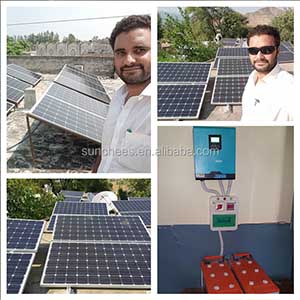

 Solar Air Conditioner System case:

Air conditioning packagingBuyer's installation drawing

Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • Air conditioner compressor has 5 years warranty ,other parts have 2 years warranty,ship the free main circuit board by DHL or FEDEX for service
