200kW Solar System Battery Pack
Our newly introduced 200kW three-phase hybrid solar-plus-storage system is a robust, industrial-grade solar solution designed for large commercial buildings, manufacturing plants, island resorts, and agricultural projects. This system is capable of generating power independently—operating entirely off-grid—and ensures continuous, uninterrupted power supply around the clock. Are you still plagued by frequent power outages? Are you concerned about soaring electricity bills? Consider exploring this solar power system; it offers a definitive solution to these challenges.

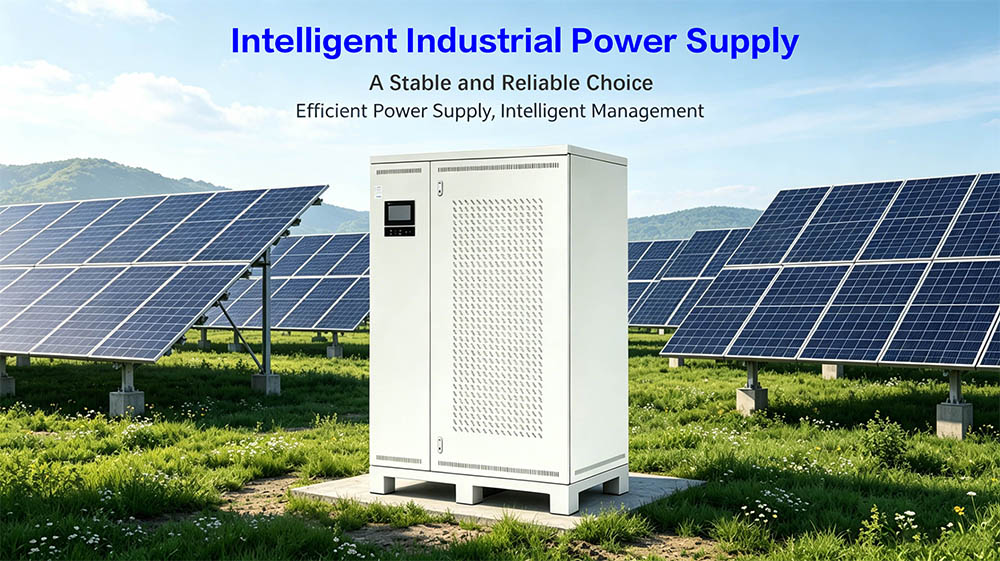

The system features a high-efficiency monocrystalline silicon solar array, a 200kW/380V three-phase hybrid inverter, and a high-capacity Lithium Iron Phosphate (LiFePO4) battery bank. It has been specifically optimized for the high-temperature, high-humidity, and coastal climatic conditions typical of tropical regions; all components are engineered to industrial-grade standards—featuring anti-corrosion and rain-proof designs—to ensure long-term, stable operation in outdoor environments.

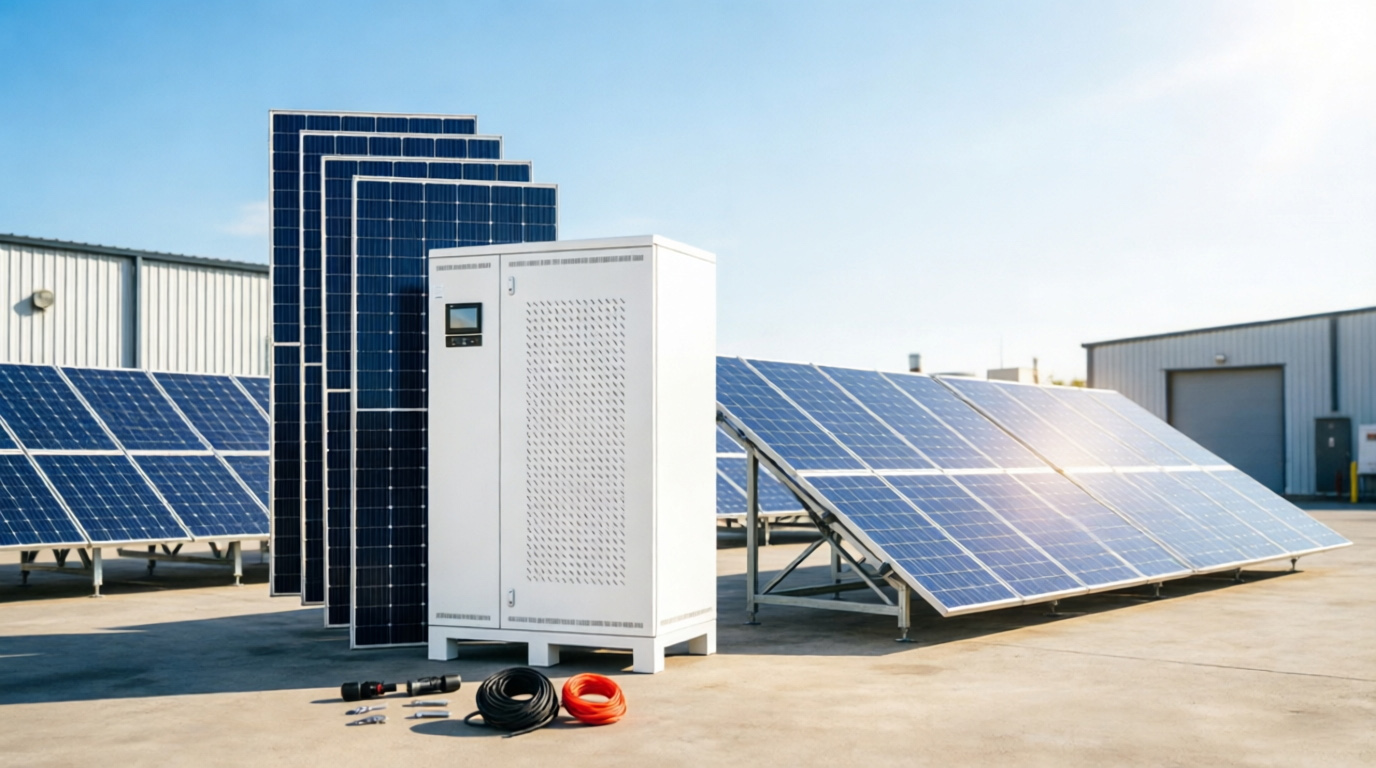

What does a 200 kW solar system include?
| Item | Model | Description | Quantity |
| 1 | Solar Panel | Mono 600W Longji | 330 pieces or Customized |
| 2 | Commercial Energy Storage System | 100kw 768v off grid solar Energy storage system | 2PCS |
| 4 | Mounting Support | Ground or Slope roof or Flat roof optional | 330 sets or Customized |
| 5 | Cables and others | 6mm2 PV cable 200M | Customized |
| MC4 terminal connectors | |||
| battery cable |
Note: The 200kw solar system accessories are complete and can be installed directly according to the installation drawings. Online guidance can also be provided. If you have additional ideas, you can communicate at any time.
200KW OFF GRID SOLAR POWER SYSTEM
Suitable for daily power consumption : <950KWH
Allowable max loads power : 200KW
Battery capacity : 482KWH
| Parameter Name | Parameter Value |
|---|---|
| Solar Panel - Max power | 600W |
| Solar Panel - Solar Cell | Monocrystalline |
| Solar Panel - Maximum Power Current (IMP) | 13.90A |
| Solar Panel - Output Tolerance | ±3% |
| Solar Panel - MaximumPowerVoltage(VMP) | 39.18V |
| Solar Panel - Open Circuit Voltage(VOC) | 47.40V |
| Solar Panel - Short Circuit Current(ISC） | 14.01A |
| Solar Panel - Temperate coefficient of Isc | 0.05%/℃ |
| Solar Panel - Frame | Aluminum alloy frame |
| Solar Panel - Temperature range | －40℃～ +85℃ |
| Solar Panel - Product Dimension | 2115 * 1052 *40 mm |
| Solar Panel - Weight | 20.5 kg |
| Solar Panel - Certificates | TUV、IEC,CE |
| Solar Panel - Warranty | 25Years |
| Solar Inverter - Rated power | 100000W |
| Solar Inverter - Model | HC300k-215kWh-02B |
| Solar Inverter - Battery chemistry | LiFePO4@GF |
| Solar Inverter - Total Capacity | 215kWh |
| Solar Inverter - Nominal Capacity | 280Ah |
| Solar Inverter - Nominal voltape | 768V |
| Solar Inverter - OperatingVoltage Range | 650V-864V |
| Solar Inverter - Max Charging Current | 140A |
| Solar Inverter - Max Discharge Cument | 140A |
| Solar Inverter - Operating RH | 10%~90% |
| Solar Inverter - Working Altitude | <3000m |
| Solar Inverter - LWH | 1460*1400*2203mm |
| Solar Inverter - Rated Output Power | 105kW |
| Solar Inverter - Max AC Current | 167A |
| Solar Inverter - Max DC Power | 126kW/1 Min |
| Solar Inverter - Rated Operating Voltage | 230/400Vac |
| Solar Inverter - Approved Grid Fregvency Range | 50Hz±5Hz |
| Solar Inverter - Voltape Deviation | < 5% Linear load Phase <3 |
| PV combiner-PV array input numbers | 6 |
| PV combiner-Max single PV array current | 10A |
| PV combiner-Single PV array fuse | 10A |
| PV combiner-Output numbers | 1 |
| PV combiner-Max output current | 40A |
| PV combiner-Reference weight (N.W/G.W) | 5.3/9.3 |
| PV combiner-Machine size (D X W X H) | 340*300*140mm |
| PV combiner-Packaging size (D X W X H) | 450*420*245mm |
| PV combiner-Ground wire size | ≥6mm2 |
| PV Cables - Rated Voltage | DC:1.8kv ACU./U:0.6/1kv |
| PV Cables -Cross Section | 4mm2 |
| PV Cables -Color | Red /Black |
| PV Cables -Application | Solar panel, inverter, combiner box, PV power station |
| PV Cables -Rated current | 55A |
| PV Cables -Number of cores | NO |
| PV Cables -conductor | copper wire structure NO./mm 56 /0.3 |
| PV Cables -Conductor stranded outside diameter | 2.58mm |
| PV Cables -Test voltage kV / min | 6.5/5 No breakdown |
| PV Cables -Operating voltage AC / DC (KV) | 0.6 ~ 1.0/1.8 |
| PV Cables -conductor resistance (20 °C) | 40~+90°C |
| PV Cables -Conductor | ≤4.75Ω / km |
| PV Cables -Maximum operating temperature | 120 ℃ |
| PV Cables -Working environment temperature °C | -40 ~ +90 |
