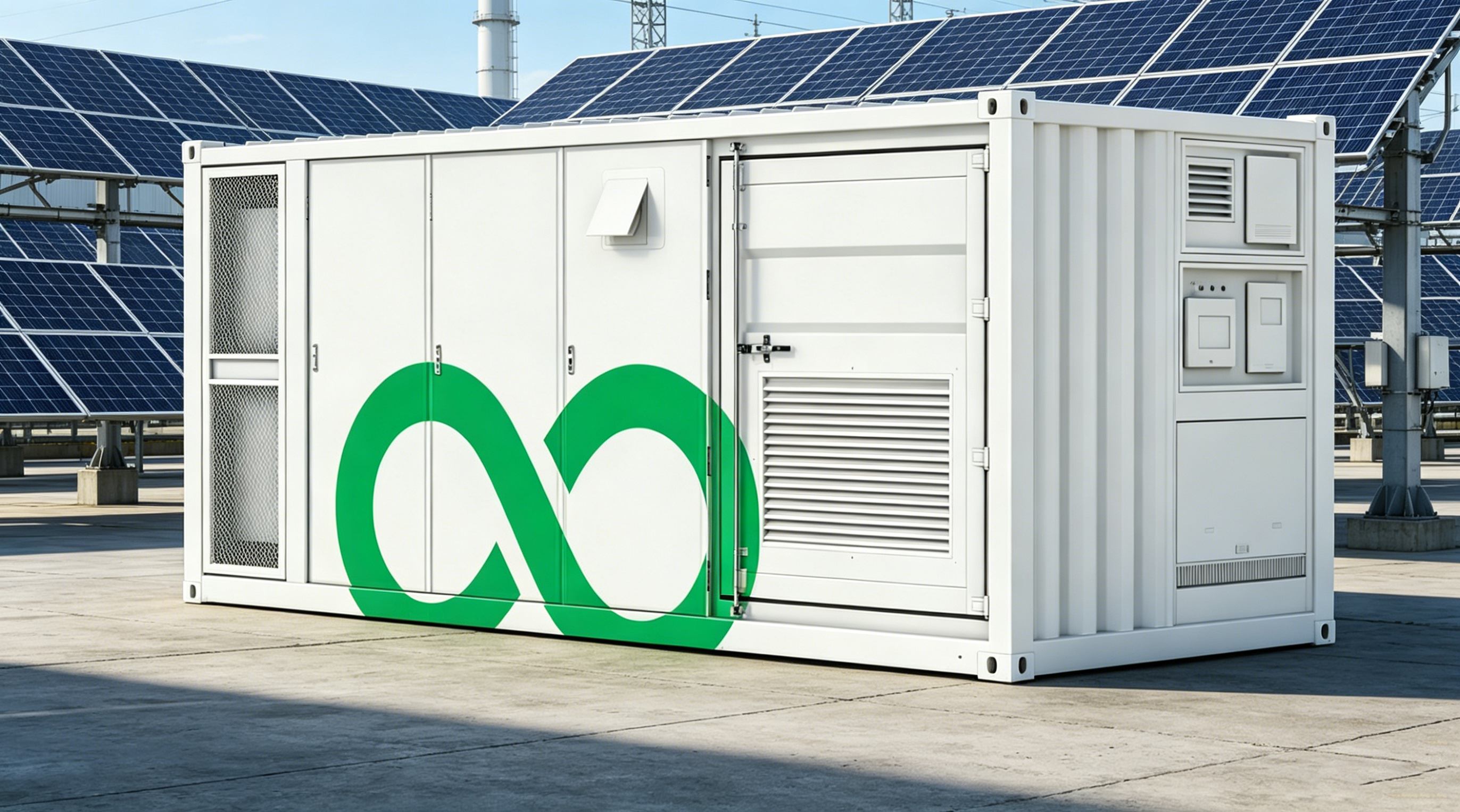

500kW Solar Energy Storage Cabinet

Highly integrated, one-stop deployment

Integrated design. All core equipment is pre-installed inside the cabin. When delivered, it is a complete system, significantly simplifying on-site installation and commissioning work.
Quick deployment, "plug and play"
The compact structural design reduces the occupation of the site and lowers the costs of on-site construction and integration.

Safe and reliable, unafraid of harsh environments

Using high-security lithium iron phosphate battery cells ensures system safety from the very beginning.
Integrates independent fire alarm and automatic fire control systems, providing active safety protection.
Comprehensive intelligent monitoring ensures that risks can be detected and handled promptly.

Intelligent and efficient, with significant returns

Advanced liquid cooling temperature control, with higher heat dissipation efficiency and better temperature uniformity
A single compartment can provide a large capacity of 2.5MWh for energy storage, meeting the application requirements of various scales and supporting more flexible energy strategies.
1500V high-voltage platform, reducing energy transmission losses and enhancing the overall system efficiency of the power station

Industrial-grade design, sturdy and durable

The intelligent BMS, liquid cooling system and automatic control system work in deep synergy, ensuring that the system operates stably and reliably under any working conditions.
Supporting remote data access and fault diagnosis significantly reduces the frequency and difficulty of on-site operation and maintenance, enabling unmanned operation and achieving cost savings in maintenance.
The standardized battery packs and cluster-level design ensure the consistency and reliability of the system, and also simplify the later maintenance and expansion.

Parameter Name	Parameter Value
Solar Battery Energy Storage Cabinet - Product model	UBT-2.5MNYBB
Solar Battery Energy Storage Cabinet - System configuration	6P416S
Solar Battery Energy Storage Cabinet - Cell model	3.2V/314Ah
Solar Battery Energy Storage Cabinet - DC voltage range	1164.8~1497.6V
Solar Battery Energy Storage Cabinet - Rated power ofbattery cluster	0.5P
Solar Battery Energy Storage Cabinet - Rated power of energy storage system	0.5MW
Solar Battery Energy Storage Cabinet - Weight	S23T
Solar Battery Energy Storage Cabinet - DC compartment dimensions	(L6058W2438H2591) mm
Solar Battery Energy Storage Cabinet - Fire protection configuration	Aerosol + Water Spraying System Liquid
Solar Battery Energy Storage Cabinet - Battery temperaturecontrol method	cooling
Solar Battery Energy Storage Cabinet - Circulation performance	8000 times / day, 1 Cycle(@ 25 + 3°C,0.5P), 90% DOD
Solar Battery Energy Storage Cabinet - Waterproof rating	IP55
Solar Battery Energy Storage Cabinet - Operating temperature	-30°C~55°C
Solar Battery Energy Storage Cabinet - Operating humidity	s95%, no condensation
Solar Battery Energy Storage Cabinet - Communication protocol	MODBUS RTU/TCPIEC104、IEC61850
