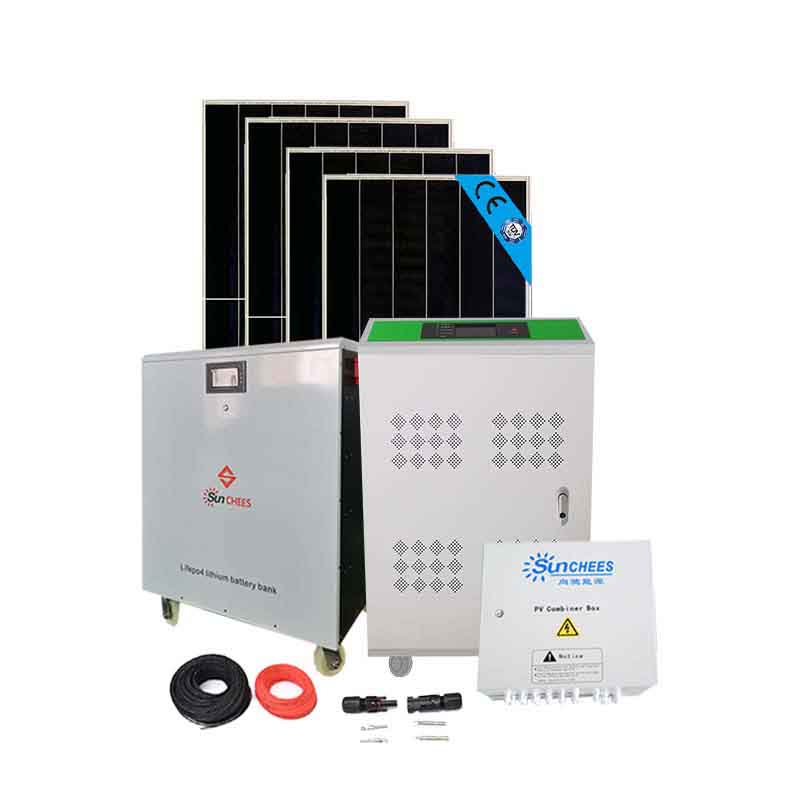

10KW solar power system
10KW solar power system
10KW solar power system

10KW solar power system

10kw Solar Energy System Home Use Solar Panel 10000 Watt Solar Power Plant 10 Kw Price

MODEL : SP-10KW

SYSTEM TYPE : Off-Grid Solar System

PRODUCT ORIGIN : CHINA

SHIPPING : Support Express · Sea freight · Land freight · Air freight

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Produt Details

10KW off grid solar system configuration:

 Off grid solar power supply system Model: SPS10KW
System Basic Information  Solar panel rated output power: 10.26KW
Suitable for daily power consumption : <64KWH
Allowable max loads power : 10KW
panel Mono                        Poly Solar panel               type: SP500W Half Cell mono
Max power :500w / Vmp:40.5V  Voc:48.7V Solar Cell Use  Half Cell
Imp 12.34A    Size : 2176*1098*40mm
25 years life time  (CE TUV) Warranty:10 years ,ship the free one for service
Connect way:4pcs solar panel in series is each string. 5 string connect to PV combiner
Effieiency performace:25%years 80%,20years 85%.10 years 90%
Total : 20PCS Terminal block: IP65 with MC4 connector
Pv combiner   Pv combiner              Model: PC10-96V
Multiple PV strings inputs ;Simplify wiring between PV array and controller
protections to controller ;  thunderstorm& surge protection
Total :1PC  Warranty : 2 years , ship the free one for service
Charge controller  Charge controller                          model:96V/100A
Charging efficiency; 90%-95%, Charging efficiency; 90%-95%,
temperature compensation, various protection functions;
Total : 1 Set Warranty: 2 years,  ship the free a main board for service

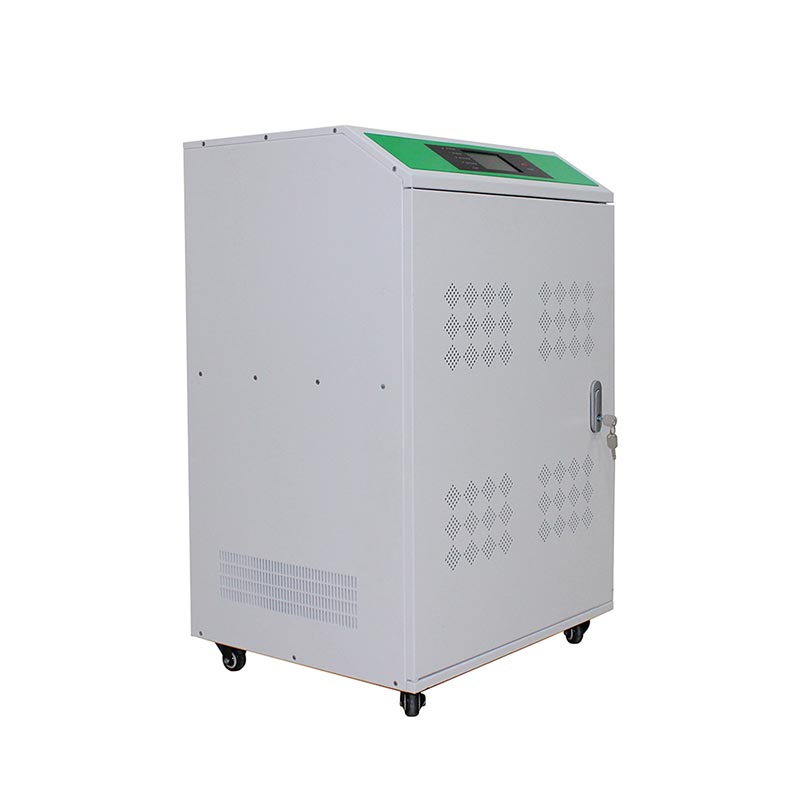

Pure Sine Wave IGBT Inverter  Pure Sine Wave IGBT Inverter
Model: SI10kw DC input:96v  Output: 110v,120v,220v,230v,240v(optional)
Use copper transformer; Bypass function with AC charger
Product size:590*470*730mm /  Weight:110KG
Total : 1 Set  warranty :2 years , ship the free a main board by DHL or FEDEX for service
Gel battery   Solar power Gel battery                      Capacity:12V/200AH
Servicelife : 5-6years Size:522*240*219mm / Weight:59KG
 Connect way: 8pcs battery in series is each string. 2 string connect to solar hybrid inverter
Total : 16PCS  warranty : 2 years, ship the free one for service
panel Solar panel rack      Slope Rooftop or Flat rooftop
including complete fittings, wind load:55m/s,snow load:1.5kn/m2  structure:Anodized Aluminum+stainless steel, Angle adjustable
Total : 1 Set
PV cable PV Cable
 30pcs 16mm2*35CM battery cable
8pcs 16mm2*1M battery cable  4mm2 PV cable 100M



10KW  solar system load reference:

10Kw Solar home System
Load Name Load'S Watt Qty Total Watt
Lights 11w 20 220w
Fan 80w 4 320w
Computer(LCD display) 150w 2 300w
Printer 250w 1 250w
Fax Machine 150w 1 150w
Refrigerator 120w 2 240w
Washing Machine 300w 1 300w
Microwave 1500w 1 1500w
Electric Cooker 300w 1 300w
Air Conditioner(1HP) 750w 4 3000w
Satellite Tv Receiver/Vcd 25w 1 25w
Color Tv(32 inch) 150w 2 300w
Water Pump 200w 1 200w
Total 7105w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the off grid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads



Advantage:

  • 100%green energy,no pollution,no noise
  • High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
  • Stand-alone system,easy installation and operation
  • Nice after-sale service,provide installation guide and technical support

Packing details:

  • Solar panels are packed in carton and pallet
  • PV combiners and inverter are packed in wooden box
  • Solar charge controller,gel battery,and cables are packed in carton
  • Solar panel racks are in cartons and bulk packing​

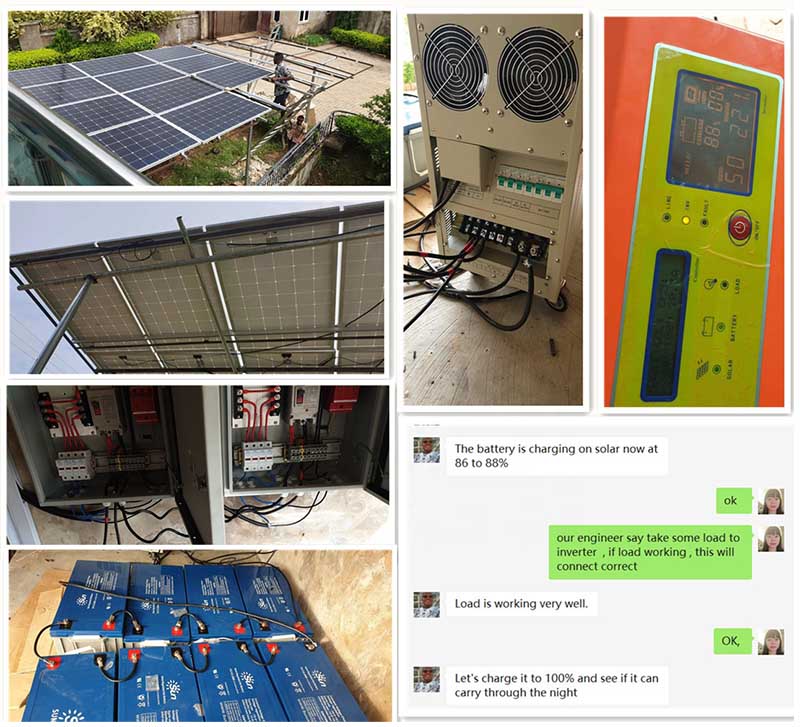

10kw solar system case:

10kw solar system case
