5KW Solar And Wind Hybrid System

5KW off grid solar & wind hybrid power system configuration:

System Basic Information				Wind generator    power:5000W, daily average energy: 24kWh Supply power for air-condition, refrigerator, water pump, washer
Wind generator				Model		WT5000
				Rated power		5000W
				Starting wind speed		4m/s
				Working wind speed		3-25m/s
				Rated wind speed		10m/s
				Security wind speed		40m/s
				Rated DC voltage		48V/96V
				Rated rotate speed		260 r/m
				Rotor diameter		5000mm
				Protection		Electromagnetic torque control and electricity brake
				Type		3phases permanent magnetism synchronization generator
				Blade material		Extra-strong fiber glass
				Packing material		Plywood box and foam material
				Packing dimension		910*520*630mm
				Wind turbine main bodyweigt		150kg
Wind controller				WC5kw/96v wind charger controller Wind Turbine Maximum Input: 100A Unload Voltage（factory default）: 112V
Gel Battery				Capacity:12V/200AH full sealed Solar power Gel battery, Service life:6-8 years , Size: 522*240*219mm weight:56KG Connect way: 4pcs batteries in series, 2 series in parallel
Off-Grid inverter				Pure sine wave inverter         Model: SI5KW DC input: 96V AC output: 110/120/220/230/240V; with grid charger build-in Protection against overload, short circuit, anti-reverse, discharger, etc.
Guy cable tower				9m tower; It help fasten wind generator in safe altitude. Use steel material with rust prevention. Easy to install
Cable				1)16pcs 16mm2*35CM battery cable connect 4pcs 16mm2*1M battery cable connect 2)16mm2 cable 100M 3) Battery terminals

How does the system work:

• When there is sunshine and wind, the solar panels and wind turbine will generate power and stock in the battery bank,then inverter will convert the battery DC power to AC power and take the loads
• When there is no sunshine,no wind and battery power is used out, the inverter will automatically switch to use city electricity to take the loads

Advantage:
Compare to only solar or only wind power system,solar&wind hybrid system can generate and supply power more stably

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

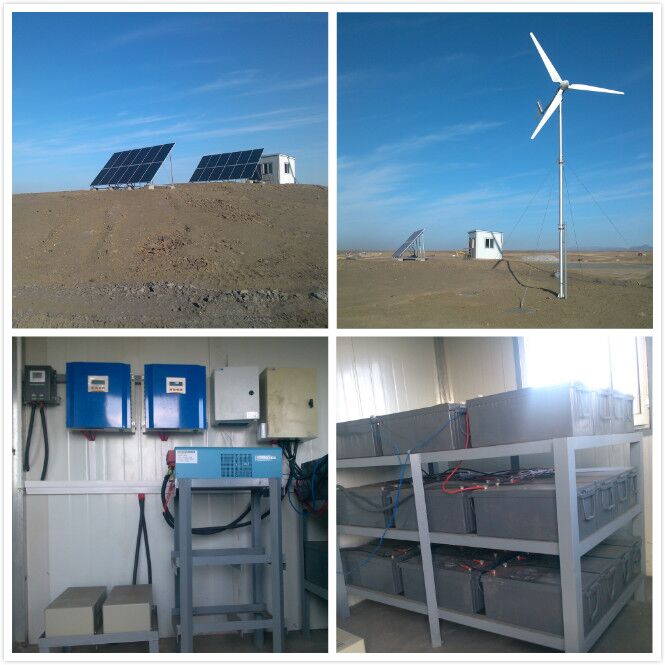

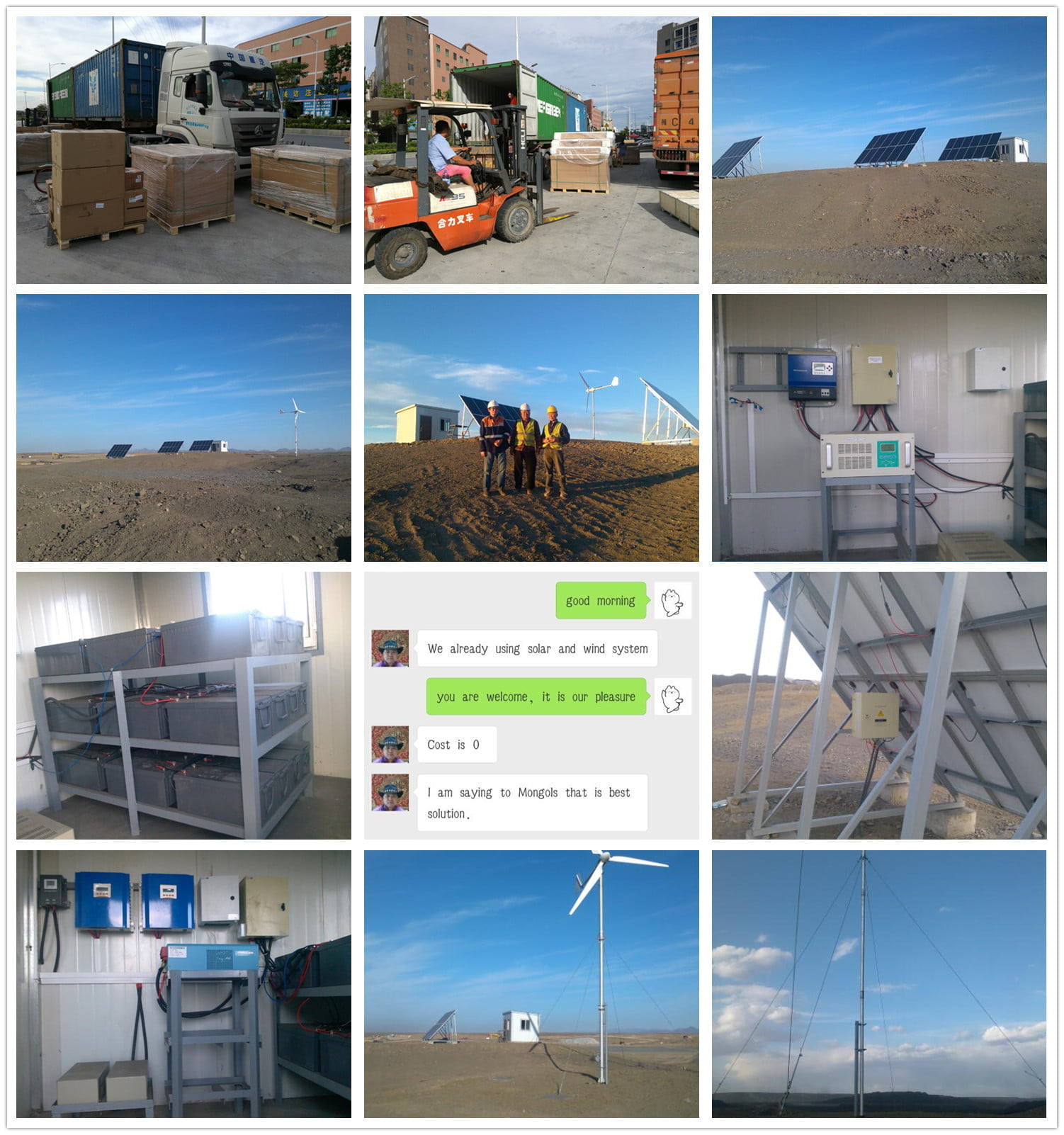

Wind system case：

Packing details:

• Solar panels are packed in carton and pallet
• Wind turbine is packed in wooden box
• Hybrid charge controller,inverter,gel battery,and cables are packed in carton
• Solar panel racks and wind turbine pole are in cartons and bulk packing

​

Warranty policy:

• Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
• Gel battery has 2 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
• Wind turbine,inverter,charge controller have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement.

​
