Solar Air Conditioner System
Home - Product - Solar Air Conditioner System
9000BTU Solar Air Conditioner System
9000BTU Solar Air Conditioner System
9000BTU Solar Air Conditioner System
9000BTU Solar Air Conditioner System

9000BTU Solar Air Conditioner System

DC power off grid dc 48V 100% home 9000BTU 18000BTU solar air conditioner prices

MODEL : AC/DC-9000BTU

LEAD TIME : 7-15days

PRODUCT ORIGIN : CHINA

SHIPPING PORT : GUANGZHOU/FOSHAN

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Produt Details

AC/DC solar air conditioner 9000BTU system configuration:

SUNCHEES 9000BTU Solar Air Conditioner System

System  basic Information

Solar panel rated output power: 2000W

6 hours at night +daytime when there is enough sunshine

Solar panel

panel

FS500W mono solar panel

Vmp:54V  Voc:63V

Imp 9.26A   Size : 2090*1106*35mm

25 years life time  (CE TUV), 10 years warranty

Glass:3.2mm Tempered

Terminal block:IP65 with MC4 connector

Connect way:2pcs panels in series, 2 series in Parallel connect to charge controller

Solar charge controller

Solar charge controller

Solar charge controller : CP48V/60A

Charger efficiency :99%

Charging mode: intelligent control

Size :192*180*117mm , weight :1.1kg

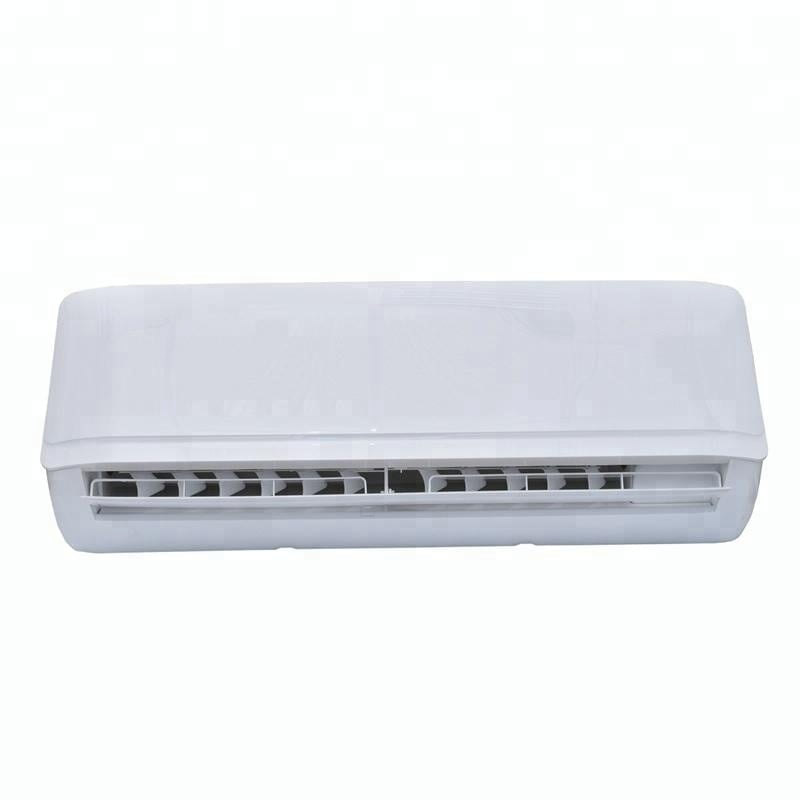

9000BTU Air conditioner

Air conditioner

Air conditioner model: DC 48V/9000BTU

Power supply : cooling +Heating

5 years warranty for compressor

EER W/W :5.35  Cooling Rated current :9.89A

Starting current: 1.5A, Max. Current: 21.87A

Indoor/Outdoor noise level:<40/33/28dB/<48dB

Ambient temp (cooling/heating):18~50℃/-15-34℃

Application area:10-20m2

Indoor unit size :850*185*290mm   8.2KG

Outdoor unit size :835*320*540mm  35KG

Gel Battery

Gel Battery

Capacity:12V/100AH full sealed

Solar power Gel battery,

Service life:5-6 years ,

Size:329*172*214mm

Connect way:4PCS in series as a string

panel rack

panel rack panel rack

(Slope)      (Flat)

Slope Rooftop or Flat rooftop

wind load:55m/s,snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel, Angle adjustable, 10 years warranty



Cables

Cables

4mm2 pv cable 50M

terminals and MC4

battery cables

DC breakers

Advantage:

  • Low energy consumption,solar power utilization rate more than 95%
  • Saving electricity 50%-80%
  • No battery,no controller,solar panel connect directly
  • Economical price
  • 24hours working per day



Application:

  • Suitable for place with stable 220V AC city grid power supply and mostly use the air conditioner at daytime.
  • Packing details:
  • Solar panels are packed in carton and pallet
  • Air conditioner unit is packed in Carton with Polyfoam

Our campany:

Corporate environment map

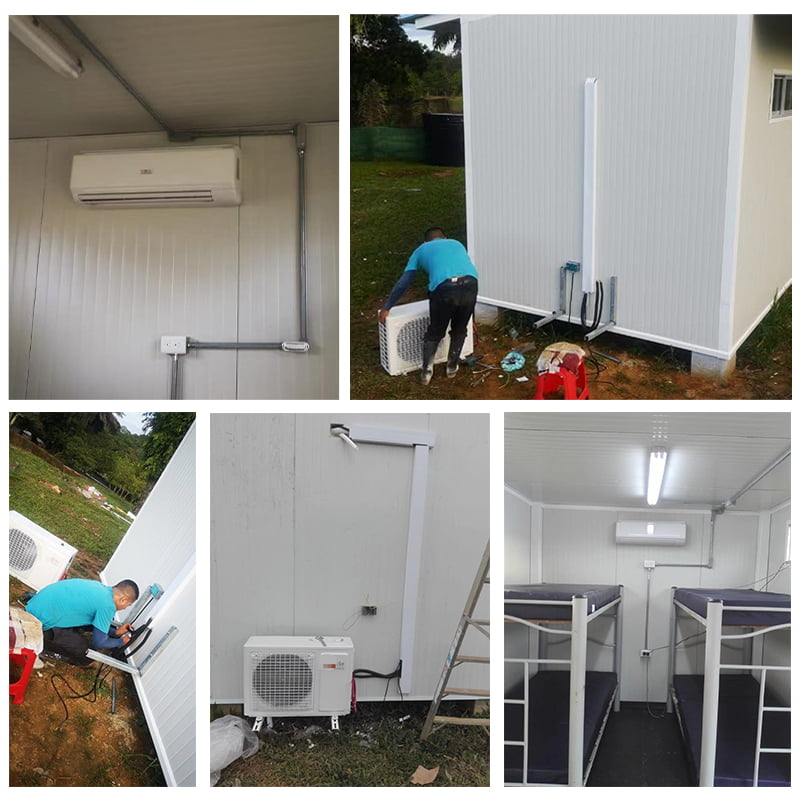

Solar Air Conditioner System case:

Air conditioner buyer show picture

Air Conditioner package

Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • Air conditioner compressor has 5 years warranty ,other parts have 2 years warranty,ship the free main circuit board by DHL or FEDEX for service
