10KW Solar And Wind Hybrid System
10KW Solar And Wind Hybrid System
10KW Solar And Wind Hybrid System
10KW Solar And Wind Hybrid System

10KW Solar And Wind Hybrid System

Good Reputation High Quality 10kw hybrid solar wind power system wind turbine

MODEL : WSP-10KW

LEAD TIME : 7-15days

PRODUCT ORIGIN : CHINA

SHIPPING PORT : GUANGZHOU/FOSHAN

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Whatapp:+86 13690853732

Email: candy@sunchees.com

Product Details

10KW off grid solar & wind hybrid power system configuration:

SUNCHEES Off grid wind power systems-WTS10000
System Basic Information Wind generator    power:10000W daily average energy: 48kWh
Supply power for air-condition, refrigerator, water pump, washer

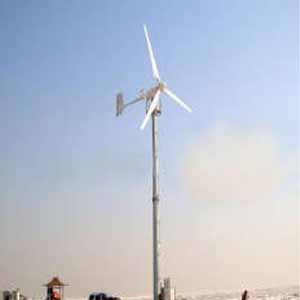

Wind generator

Wind generator

Model WT10000
Rated power 10000W
Starting wind speed 3m/s
Working wind speed 3-30m/s
Rated wind speed 10m/s
Security wind speed 45m/s
Rated DC voltage 120V
Rated rotate speed 200 r/m
Rotor diameter 7000mm
Protection Electromagnetic torque control and
electricity brake
Type 3phase permanent magnetism
synchronization generator
Blade material Extra-strong fiber glass
Packing material Plywood box and foam material
dimension 1160*600*740mm
N.W&G.W(kg) 310kg

Wind controller

Wind controller

WC10kw/120v wind charger controller Wind Turbine Maximum Input: 90A Unload Voltage(factory default): 106V Unload Current(factory default): 40A

Gel Battery

Gel Battery

Capacity:12V/200AH full sealed Solar power Gel battery, Service life:6-8 years
Size: 522*240*219mm weight:56KG
Connect way: 10pcs batteries in series, 2 series in parallel

Off-Grid inverter

Off-Grid inverter

Pure sine wave inverter,     Model: SI10KW DC input: 120V
AC output: 110/120/220/230/240V; with grid charger build-in Protection against overload, short circuit,
anti-reverse, discharger, etc.

Free stand    tower

Free stand    tower

12m tower;
It help fasten wind generator in safe altitude. Use steel material with rust prevention.
Easy to install

Cable

Cable



1)30pcs 16mm2*35CM battery cable connect 6pcs 16mm2*1M battery cable connect
2)16mm2 cable 100M
3) Battery terminals

How does the system work:

  • When there is sunshine and wind, the solar panels and wind turbine will generate power and stock in the battery bank,then inverter will convert the battery DC power to AC power and take the loads
  • When there is no sunshine,no wind and battery power is used out, the inverter will automatically switch to use city electricity to take the loads

Advantage:
Compare to only solar or only wind power system,solar&wind hybrid system can generate and supply power more stably

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

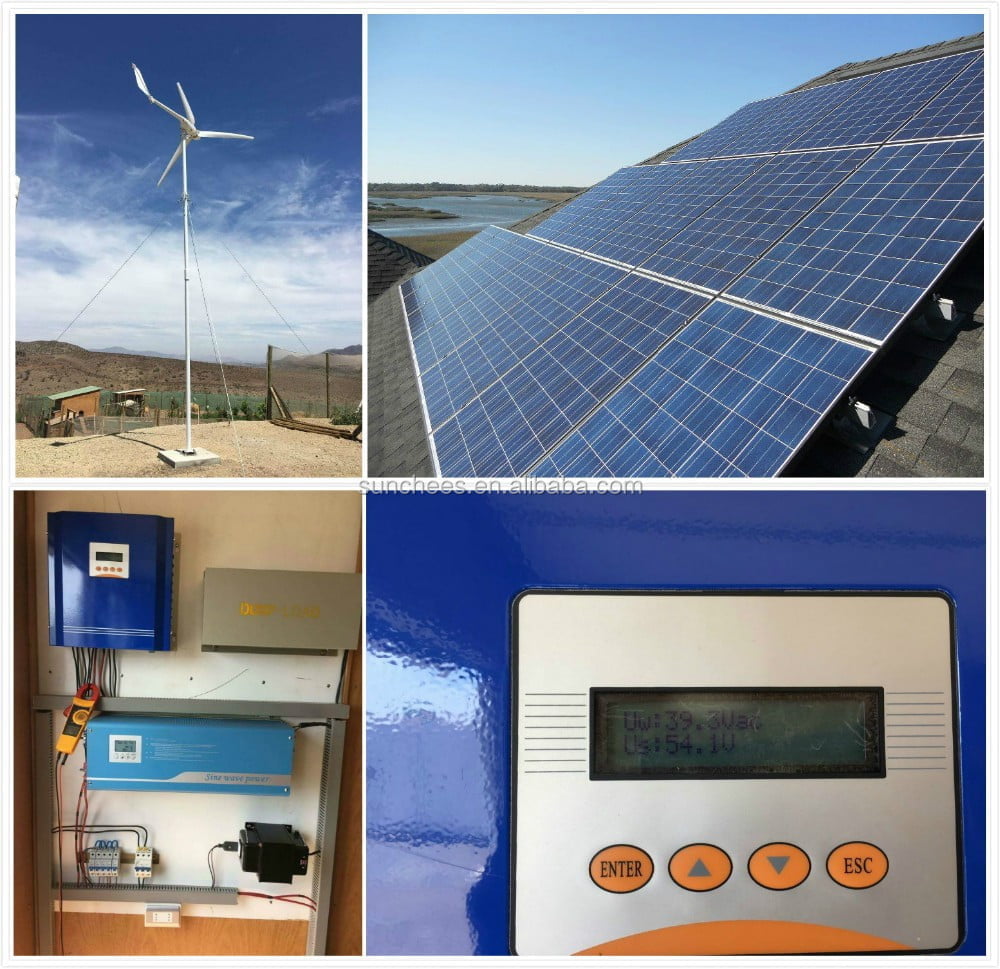

Wind system case:

Project buyer Show

Project buyer Show

Our factory:

Corporate environment

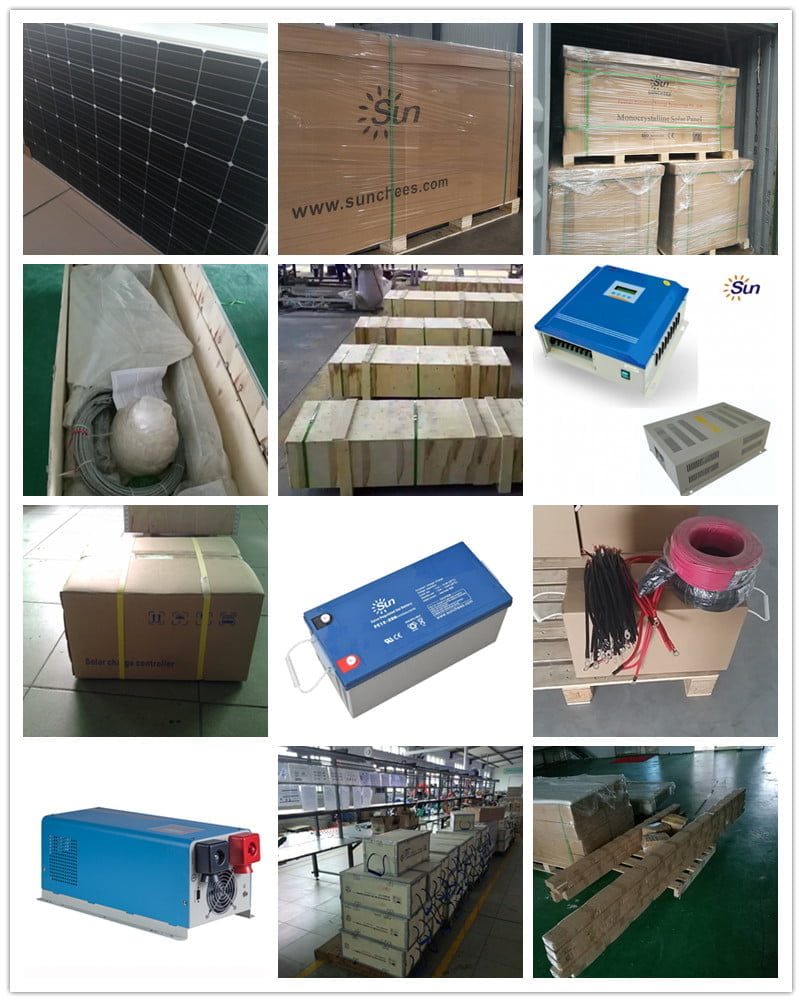

Packing details:

  • Solar panels are packed in carton and pallet
  • Wind turbine is packed in wooden box
  • Hybrid charge controller,inverter,gel battery,and cables are packed in carton
  • Solar panel racks and wind turbine pole are in cartons and bulk packing

package

Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • Gel battery has 2 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
  • Wind turbine,inverter,charge controller have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement.
