5Kw Solar System With Batteries China manufacture PV panel system 5000 watt solar off grid system 5kw for home

MODEL : SP-5KW

SYSTEM TYPE : Off-Grid Solar System

PRODUCT ORIGIN : CHINA

SHIPPING : Support Express · Sea freight · Land freight · Air freight

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Whatapp:+86 13690853732

Email: candy@sunchees.com

Product Details

5KW off grid solar system configuration:

 Off grid solar power supply system Model: SP5000W
System Basic Information  Solar panel rated output power:   5KW
Allowable max loads power : 5KW
Solar Backup System For Home Solar panel               type: SP500W Half Cell mono
Max power :500w / Vmp:40.5V  Voc:48.7V Solar Cell Use  Half Cell
Imp 12.34A    Size : 2176*1098*40mm
25 years life time  (CE TUV) Warranty:10 years ,ship the free one for service
Connect way:2pcs solar panel in series is each string. 5strings connect to PV combiner
Effieiency performace:25%years 80%,20years 85%.10 years 90%
 Mono                        Poly Total : 10PCS Terminal block: IP65 with MC4 connector
5Kw Off Grid Solar Inverter Price PV combiner                  Modell: PC4-48V
Multiple PV strings inputs ;Simplify wiring between PV array and controller
protections to controller    thunderstorm& surge protection
Total :1PCS  Warranty:2 years , ship the free one for service
Solar Pv Systems For Residential Hybrid Solar Inverter
Solar inverter with controller built it Inverter power:SI5000w/48v
With built-in MPPT controller :60A/48V
Charging efficiency:99%, Built-in AC charger (public network)
Output:110v,120v,220v,230v,240v(optional) Product size:520*420*222mm
Total : 1 Set     Warranty :2 years, ship the free a main board for service
Solar Backup System For Home Solar power Gel battery            13.31KWH(260AH/51.2V)
Capacity:12V/200AH
Servicelife : 5-6years Size:522*240*219mm / Weight:57KG
 Connect way: 20 pcs batteries in seriesconnect to inverter
Weight:57kgs
Total : 20Pcs   Warranty :2 years, ship the free one for service
Residential Solar Power Battery Storage Solar panel rack           Slope Rooftop or Flat rooftop
 including complete fittings, wind load:55m/s,snow load:1.5kn/m2  structure:Anodized Aluminum+stainless steel, Angle adjustable
Total : 1 Set
Off Grid Solar Inverter For Sale PV Cable
2pcs 16mm2*1M battery cable ;4mm2 PV cable 100M;MC4 terminal connectors



5Kw Solar System With Batteries load reference:

 5000w Solar home System
Load Name Load'S Watt Qty Total Watt
Lights 11w 8 88w
Fan 80w 2 160w
Computure 150w 2 300w
Printer 250w 1 250w
Fax Machine 150w 1 150w
Refrigerator 120w 1 120w
Washing Machine 300w 1 300w
Microwave 1000w 1 1000w
Electric Cooker 300w 1 300w
Air Conditioner 1500w 1 1500w
Satellite Tv Receiver/Vcd 25w 1 25w
Color Tv 100w 2 200w
Water Pump 200w 1 200w
Total 4513w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the off grid solar power system work:

  • This system not only has solar power system function,but also has city grid complement function and UPS function
  • At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
  • At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
  • When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

  • 100%green energy,no pollution,no noise
  • High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
  • Stand-alone system,easy installation and operation
  • Nice after-sale service,provide installation guide and technical support

Packing details:

  • Solar panels are packed in carton and pallet
  • PV combiners and inverter are packed in wooden box
  • Solar charge controller,gel battery,and cables are packed in carton
  • Solar panel racks are in cartons and bulk packing

Residential Solar Power Battery Storage

Our Factory:

5Kw Solar System With Batterie

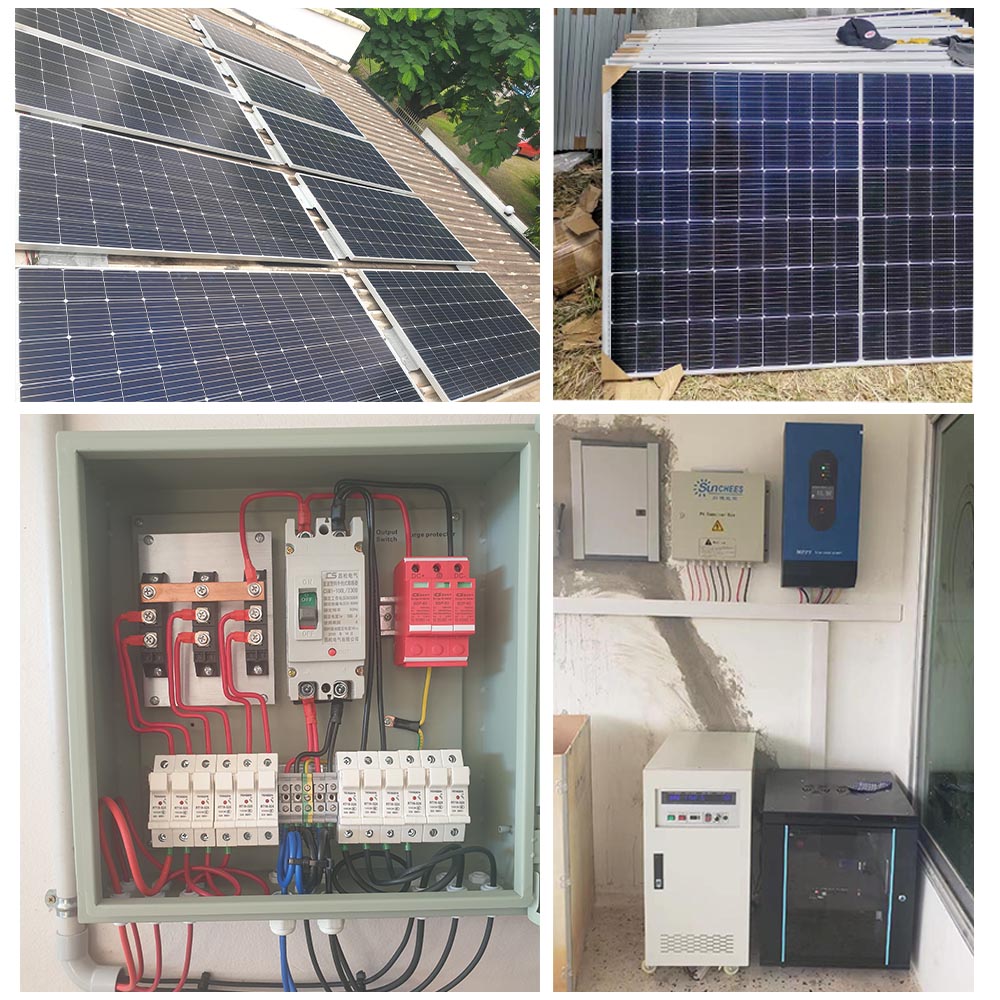

5KW Solar System Case:

Off Grid Solar Inverter ManufacturersOff Grid Dc To Ac Inverter

Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • lithium  battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
  • Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement
