6kw off grid Photovoltaic System Solar Kit 6000 Watt Solar Kit
6kw off grid Photovoltaic System Solar Kit 6000 Watt Solar Kit
6kw off grid Photovoltaic System Solar Kit 6000 Watt Solar Kit
6kw off grid Photovoltaic System Solar Kit 6000 Watt Solar Kit

6kw off grid Photovoltaic System Solar Kit 6000 Watt Solar Kit

6000 Watt Solar Kit Panel Pv Module Home Energy Project 3kw 5kw 6kw Plant Hybrid Solar Power System Price With Inverter

MODEL : SP-6KW

SYSTEM TYPE : Off-Grid Solar System

PRODUCT ORIGIN : CHINA

SHIPPING : Support Express · Sea freight · Land freight · Air freight

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Whatapp:+86 13690853732

Email: candy@sunchees.com

Product Details

6KW off grid solar system configuration:

 Off grid solar power supply system Model: SP6000W
System Basic Information  Solar panel rated output power: 6000W
Allowable max loads power : 6KW
Solar Battery Storage System Solar panel               type: SP500W mono solar panel
Max power :500w / Vmp:54V  Voc:62.4V Solar Cell Use  5BB ,A+ Grade
Imp 9.26A    Size : 2090*1106*35mm
25 years life time  (CE TUV) Warranty:10 years ,ship the free one for service
Connect way:3pcs solar panel in series is each string. 4 strings connect to PV combiner
Effieiency performace:25%years 80%,20years 85%.10 years 90%
Total : 12 PCS Terminal block: IP65 with MC4 connector
Solar Panel With Battery For Home PV combiner               Model: PC4-96V
Multiple PV strings inputs ;Simplify wiring between PV array and controller
protections to controller ;  thunderstorm& surge protection
Total:1PC  warranty:2 years, ship the free one for service
Solar System For Home Electricity Hybrid Solar Inverter
Solar inverter with controller built it Inverter power:SI6000w/48v
With built-in MPPT controller :120A/48V
WIFI function is optional
Charging efficiency≥95%, Built-in AC charger (public network)
Output:110v,120v,220v,230v,240v(optional) Product size:610*330*200mm
Total : 1 Set   Warranty :2 years, ship the free a main board for service
Rooftop Solar Panel Price Solar power gel battery                Capacity:12V/200AH
Servicelife : 5-6years Size:522*240*219mm / Weight:57KG
 Connect way: 8pcs battery in series is each string connect to solar hybrid inverter
Total : 8PCS  Warranty : 2 years , ship the free one for service
Diy Solar Panels For Home Solar panel rack            Slope Rooftop or Flat rooftop
including complete fittings, wind load:55m/s,snow load:1.5kn/m2  structure:Anodized Aluminum+stainless steel, Angle adjustable
Total : 1 Set
pv cable PV Cabel
7pcs 16mm2*35CM battery cable
4pcs 16mm2*1M cable  4mm2 PV cable 150M;MC4 terminal connectors



6000 Watt Solar Kit load reference:

6Kw Solar Panel System
Load Name Load'S Watt Qty Total Watt
Lights 11w 8 88w
Fan 80w 2 160w
Computure 200w 2 400w
Printer 250w 1 250w
Fax Machine 150w 1 150w
Refrigerator 120w 1 120w
Washing Machine 300w 1 300w
Microwave 1500w 1 1500w
Electric Cooker 300w 1 300w
Air Conditioner 1125w 1 1125w
Satellite Tv Receiver/Vcd 25w 1 25w
Color Tv 150w 2 300w
Water Pump 200w 1 200w
Total 4918w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

SUNCHEES Can Provide What Service To Your ?

1:Professional R&D Team

We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries,Won five-star praise from 100% customers

2:OEM/ODM Service

Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ,Three new products lead the market every year.

3:Perfect after-sales service system

Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.

Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;

2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;

3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.

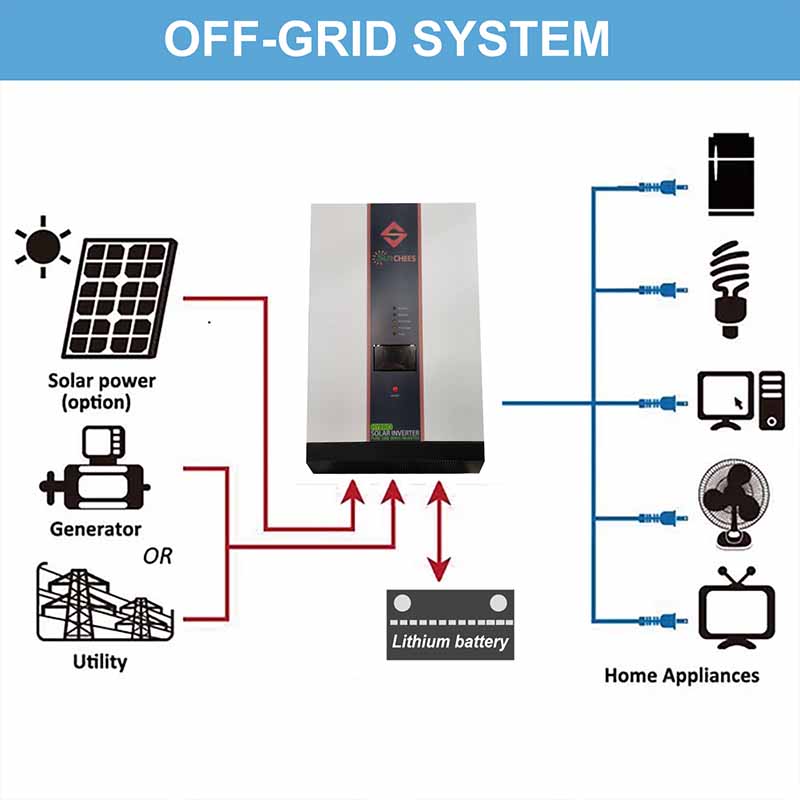

How does the off grid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

  • 100% green energy,no pollution,no noise
  • High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
  • Stand-alone system,easy installation and operation
  • Nice after-sale service,provide installation guide and technical support

6000 Watt Solar Kit​ Packing details:

Solar panels are packed in carton and pallet
PV combiners and inverter are packed in wooden box
Solar charge controller,gel battery,and cables are packed in carton
Solar panel racks are in cartons and bulk packing​

30A Mppt Solar Charge Controller package

6000 Watt Solar Kit case:

Adding Solar Panels To House

Our campany:

solar  system supplier

Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • lithium  battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
  • Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement
