3KW off grid solar & wind hybrid power system configuration:

SUNCHEES Off grid wind power systems-WTS3000
System Basic Information	Wind generator power: 3000W, daily average energy: 14.4kWh Supply power for air-condition,refrigerator,water pump, washer
Wind generator	Model	WT3000
	Rated power	3000W
	Starting wind speed	3m/s
	Working wind speed	3-25m/s
	Rated wind speed	10m/s
	Security wind speed	40m/s
	Rated DC voltage	48V/96V
	Rated rotate speed	300 r/m
	Rotor diameter	4000mm
	Protection	Electromagnetic torque control and electricity brake
	Type	3phases permanent magnetism synchronization generator
	Blade material	Extra-strong fiber glass
	Packing material	Plywood box and foam material
	Packing dimension	870560370mm
	Wind turbine main body weigt	150kg
Wind controller	WC3kw/48v wind charger controller , Rated Battery Voltage: 48V Wind Turbine Maximum Input: 125A Unload Voltage（factory default）: 56V Unload Current（factory default）: 60A
Gel Battery	Capacity:12V/200AH full sealed Solar power Gel battery, Service life:6-8 years , Size: 522240219mm weight:56KG Connect way: 4pcs batteries in series
Off-Grid inverter	Pure sine wave inverter Model: SI3KW DC input: 48V AC output: 110/120/220/230/240V output; with grid charger build-in Protection against overload, short circuit, anti-reverse, discharger, etc.
Guy cable tower	9m tower; It helps fasten wind generator in safe altitude.
	Use steel material with rust prevention. Easy to install
Cable	1)8pcs 16mm235CM battery cable connect 4pcs 16mm21M battery cable connect 2)10mm2 cable 100M 3) Battery terminals

How does the system work:

When there is sunshine and wind, the solar panels and wind turbine will generate power and stock in the battery bank,then inverter will convert the battery DC power to AC power and take the loads
When there is no sunshine,no wind and battery power is used out, the inverter will automatically switch to use city electricity to take the loads

Advantage:
Compare to only solar or only wind power system,solar&wind hybrid system can generate and supply power more stably

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

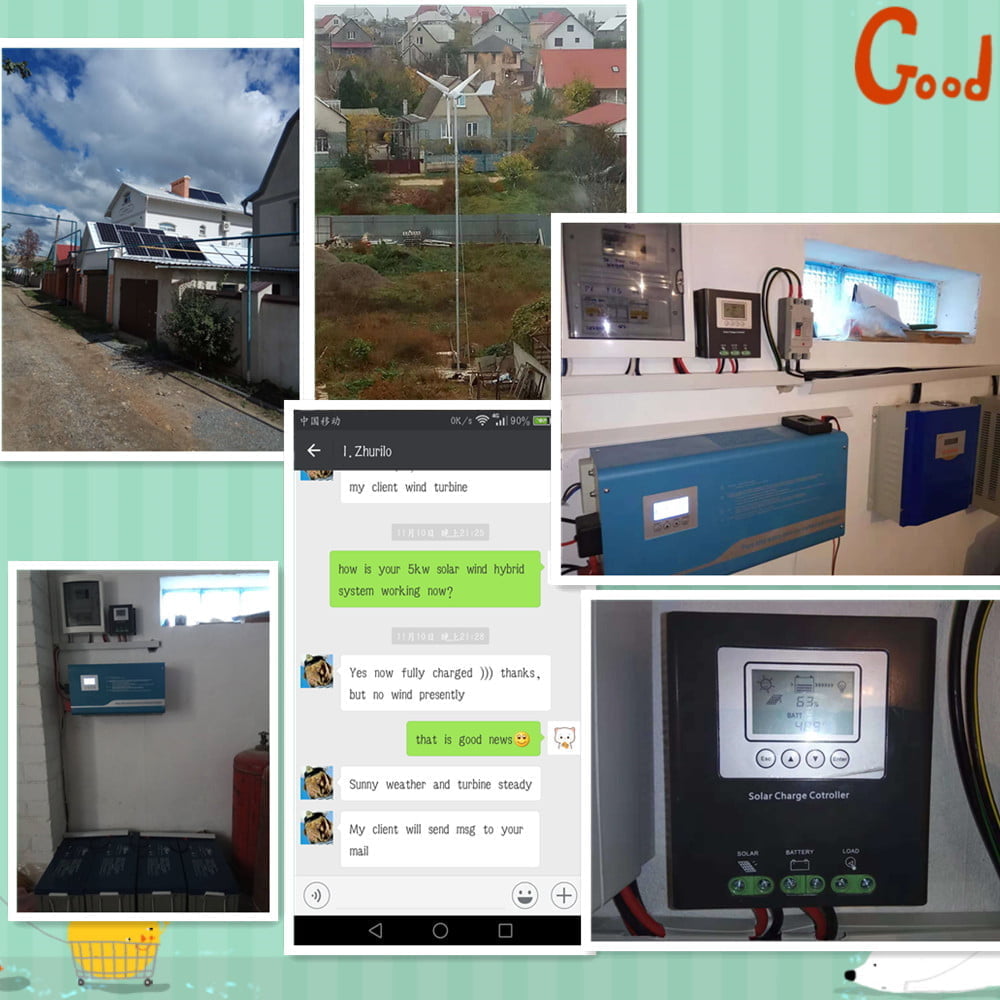

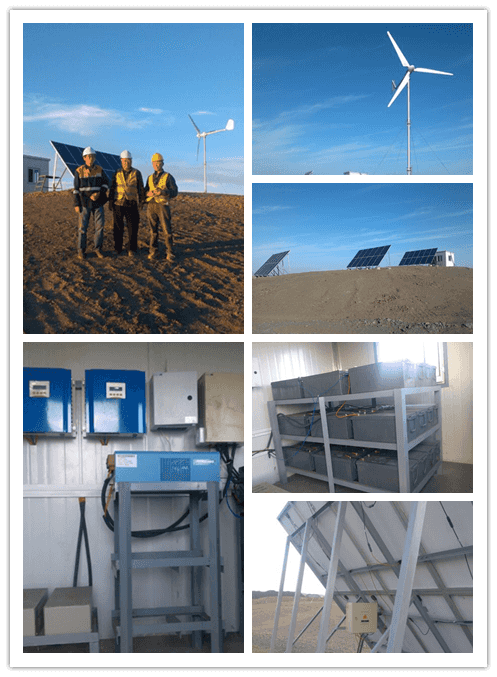

Wind system case：

Our factory：

Packing details:

Solar panels are packed in carton and pallet
Wind turbine is packed in wooden box
Hybrid charge controller,inverter,gel battery,and cables are packed in carton
Solar panel racks and wind turbine pole are in cartons and bulk packing

solar system package

Warranty policy:

Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
Gel battery has 2 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
Wind turbine,inverter,charge controller have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement.
