Looking for the best kit solar 12kw solar power system for home in 2026? Our 12KW full home solar power system is the perfect choice for households seeking reliable and sustainable solar energy for homes. Designed for efficiency, ease of installation, and long-term performance, this off-grid solar power system for homes delivers both power independence and smart technology integration.

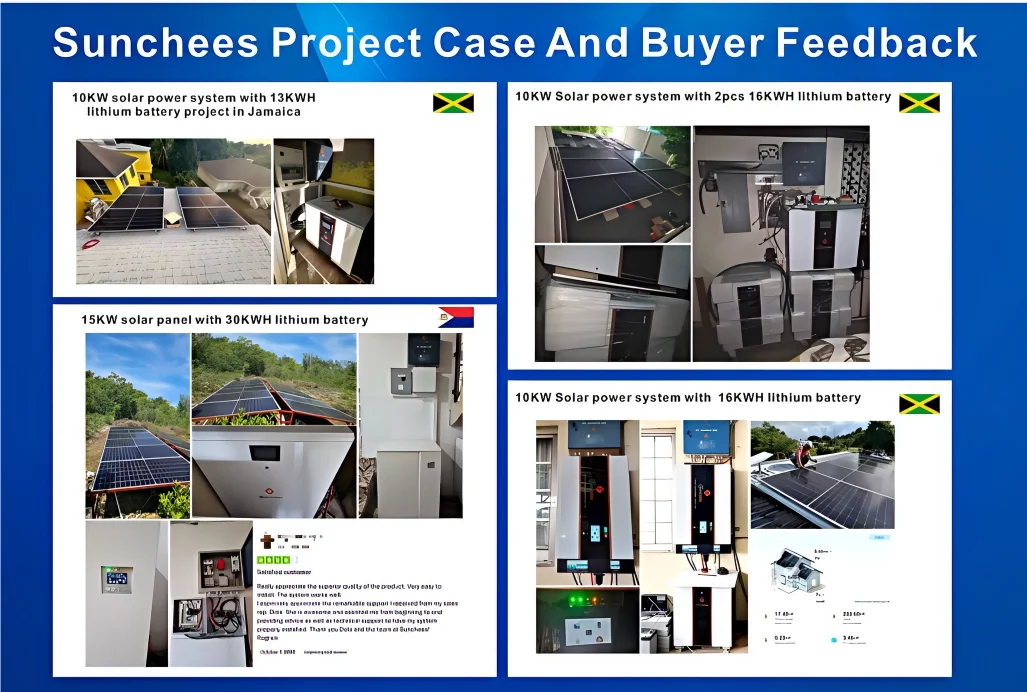

Sunchees Customer installation feedback and comments

12kw Kit Solar Package Includes

9600W PV&30.6kWh Battery
15x 600w Solar Panel-Black
1x 12000w 110V 220V MPPT Off-Grid Inverter
2x 51.2v 330ah Lifepo4 Battery
1x Pv-Inverter Cable
2x Pv Extension Cable
1x Combiner Box
1×Ground or Roof Mounting Support Kit
1200 meters 4mm² Solar-Grade Cable

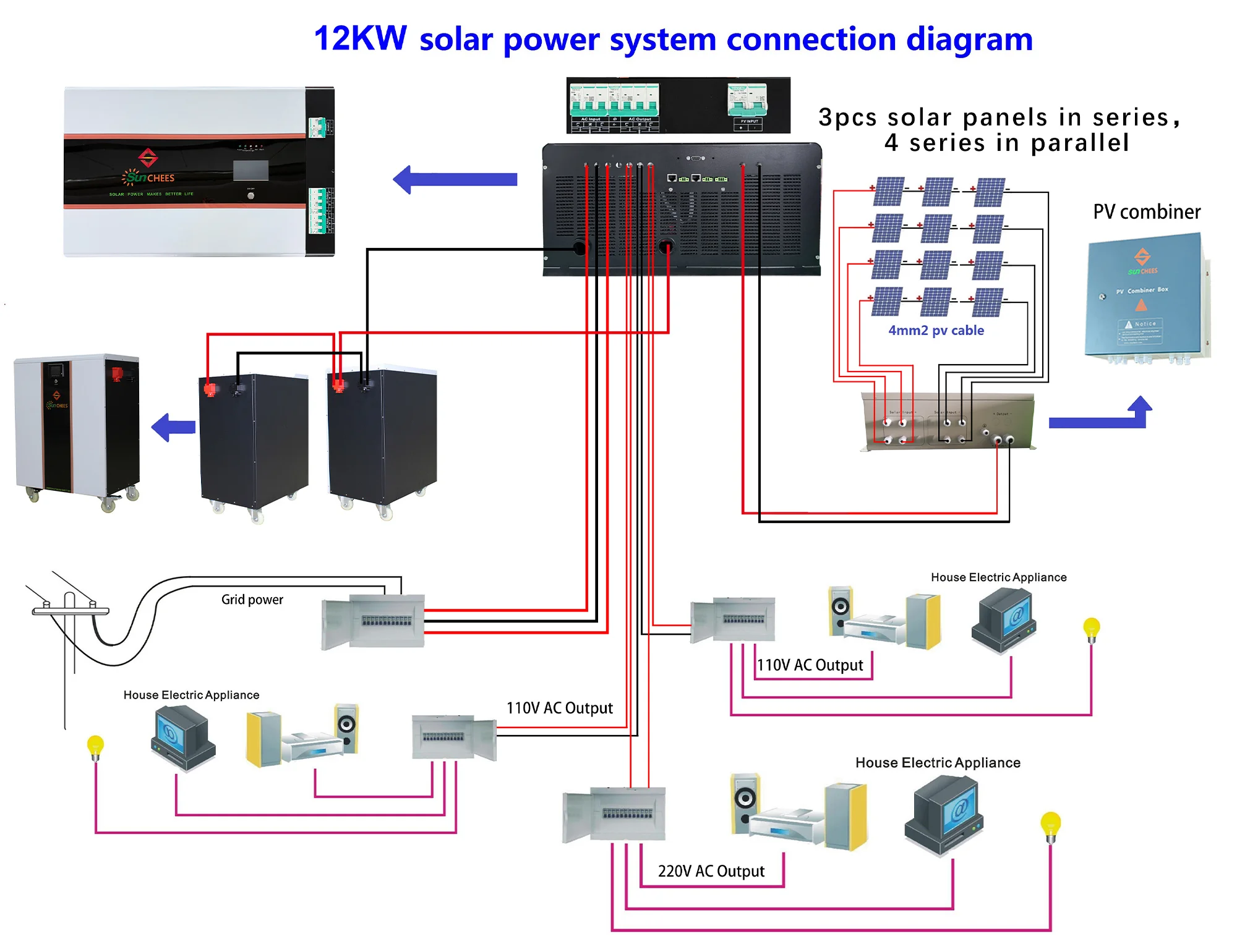

12kW Solar System Connection and Installation Reference

Why choose our inverter?

1. Lithium Battery Pack：95% DOD , More than 6000 cycle times
2. Long warranty period：10 years
3. Higher energy density, smaller volume for household.
4. Long Life and Safety.
5. Photovoltaic system：this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS)：the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
7. Expand ability： this battery pack can be easily expanded by adding expansion battery packs in parallel connection.

Our customers are located in 200 countries around the world

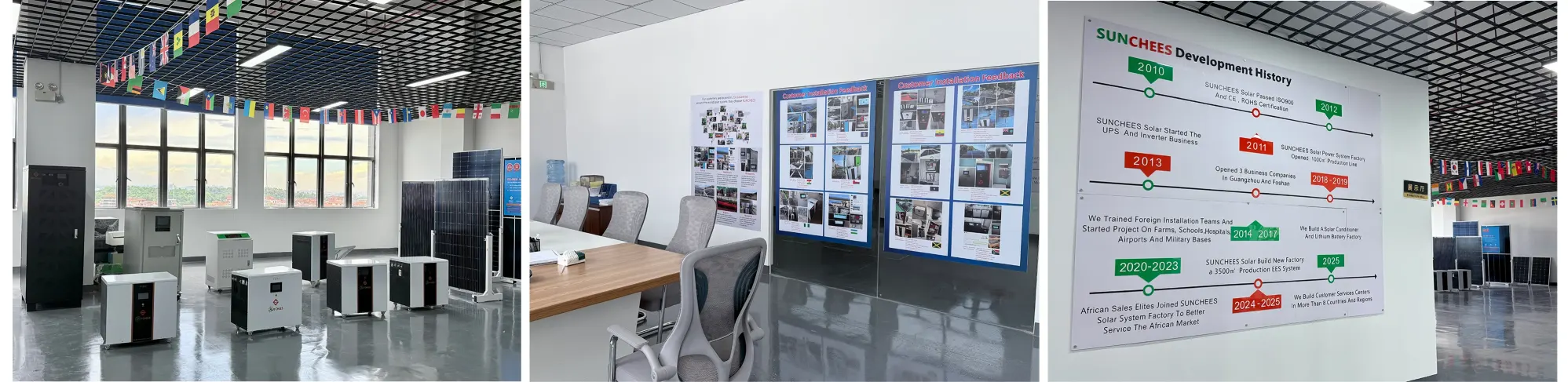

Company profile

Parameter Name	Parameter Value
Solar Panel - Max power	600W
Solar Panel - Solar Cell	Monocrystalline
Solar Panel - Maximum Power Current (IMP)	13.90A
Solar Panel - Output Tolerance	±3%
Solar Panel - MaximumPowerVoltage(VMP)	39.18V
Solar Panel - Open Circuit Voltage(VOC)	47.40V
Solar Panel - Short Circuit Current(ISC）	14.01A
Solar Panel - Temperate coefficient of Isc	0.05%/℃
Solar Panel - Frame	Aluminum alloy frame
Solar Panel - Temperature range	－40℃～ +85℃
Solar Panel - Product Dimension	2115 * 1052 *40 mm
Solar Panel - Weight	20.5 kg
Solar Panel - Certificates	TUV、IEC,CE
Solar Panel - Warranty	25Years
Solar Inverter - PV Charging Current Range	150A
Solar Inverter - Max Input Power	12000W
Solar Inverter - MPPT Voltage Range	72-150VDC
Solar Inverter - Battery Voltage Range	40-60VDC
Solar Inverter - Output	110V 220V
Solar Inverter - Output Wave form	Pure Sine Wave
Solar Inverter - Rated Output Power	12000W
Solar Inverter - Rated Battery Input Voltage	48V
Solar Inverter - Product size	630505840mm
LiFePO4 Lithium Battery - Battery Capacity	330Ah
LiFePO4 Lithium Battery - Battery Power	34000WH
LiFePO4 Lithium Battery - Battery Voltage	51,2V
LiFePO4 Lithium Battery - Maximum Charging Current	200A
LiFePO4 Lithium Battery - Discharge Voltage	89.6-113.4V
LiFePO4 Lithium Battery - Discharge Cut-Off Voltage	10V
LiFePO4 Lithium Battery - Operating Temperature	4°F to 140°F
LiFePO4 Lithium Battery - Cycle Life	≥6000
LiFePO4 Lithium Battery - Size	570405 810mm
LiFePO4 Lithium Battery - Lifespan	8-10 years
LiFePO4 Lithium Battery - Weight	115kg
PV combiner-PV array input numbers	6
PV combiner-Max single PV array current	10A
PV combiner-Single PV array fuse	10A
PV combiner-Output numbers	1
PV combiner-Max output current	40A
PV combiner-Reference weight (N.W/G.W)	5.3/9.3
PV combiner-Machine size (D X W X H)	340300140mm
PV combiner-Packaging size (D X W X H)	450420245mm
PV combiner-Ground wire size	≥6mm2
PV Cables - Rated Voltage	DC:1.8kv ACU./U:0.6/1kv
PV Cables -Cross Section	4mm2
PV Cables -Color	Red /Black
PV Cables -Application	Solar panel, inverter, combiner box, PV power station
PV Cables -Rated current	55A
PV Cables -Number of cores	NO
PV Cables -conductor	copper wire structure NO./mm 56 /0.3
PV Cables -Conductor stranded outside diameter	2.58mm
PV Cables -Test voltage kV / min	6.5/5 No breakdown
PV Cables -Operating voltage AC / DC (KV)	0.6 ~ 1.0/1.8
PV Cables -conductor resistance (20 °C)	40~+90°C
PV Cables -Conductor	≤4.75Ω / km
PV Cables -Maximum operating temperature	120 ℃
PV Cables -Working environment temperature °C	-40 ~ +90
