What’s in an hybrid solar system?

We assemble, wire, and test all the parts necessary to run your off-grid system right in our warehouse. Our designers are pros at building flexible systems that can be expanded if your energy needs change down the road.

10Kw Off Grid Solar System configuration:

	Half cell Solar panel Model : 470W-500W Vmp:40.5V *Voc:48.7V Size :2176109840mm* High reliability High efficiency up to 22% Life time : 25 years

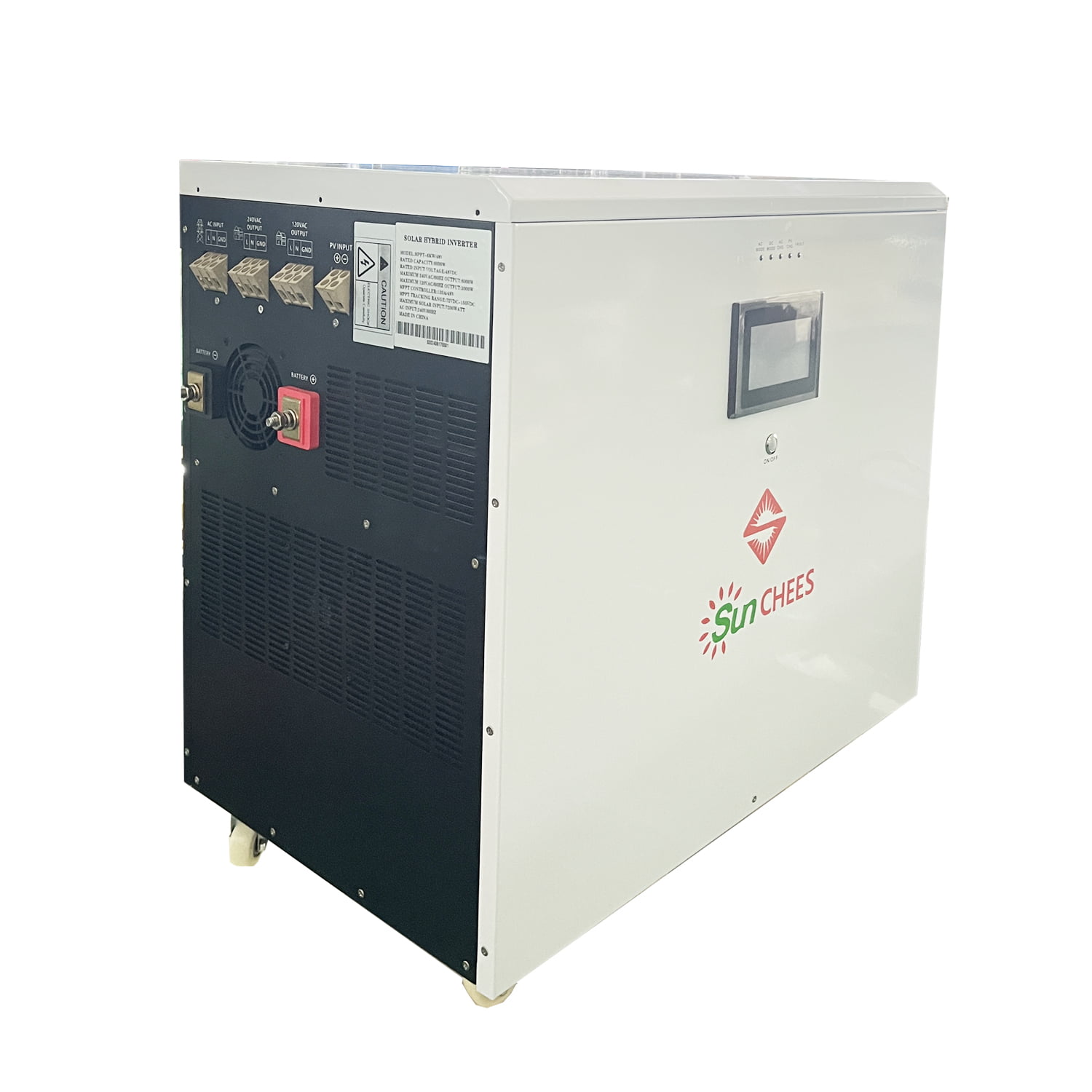

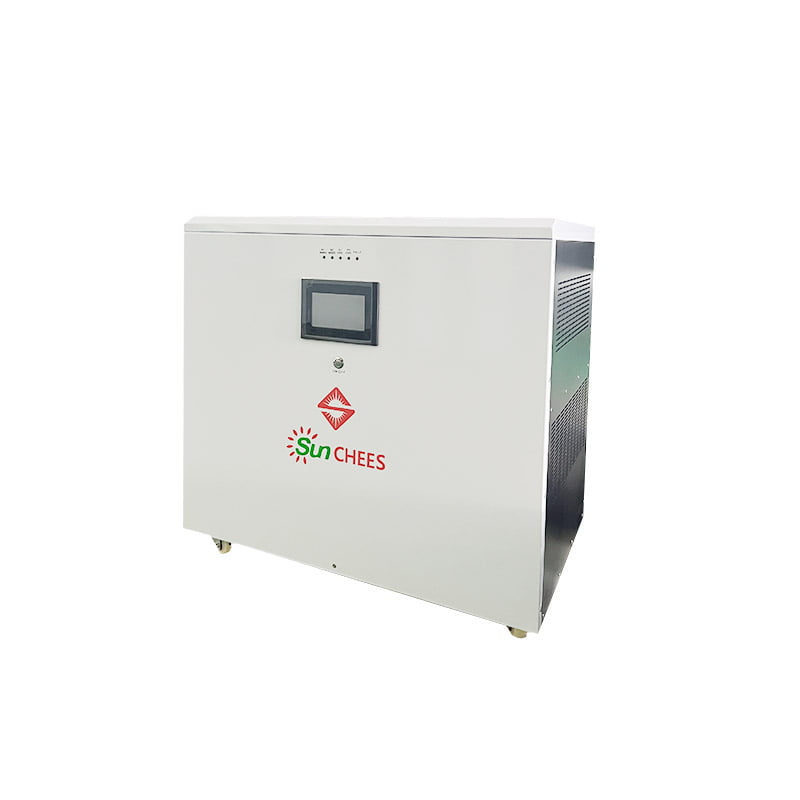

solar inverter with MPPT charger controller Touch color screen Intelligent control, easy operation Lithium battery , gel battery all acceptable pure sine wave inverter and a UPS fuction . Remote monitoring is Auail-able by Using WIFI monitoring kit.
	Lithium battery Nominal voltage : 51.2V Nominal Capacity : 260AH Cycles time: 6000 Life time : 10 years Weight:150KG Size:603412700mm
Main Disconnect Box DC Disconnect AC Disconnect Battery Disconnect PV Combiner Flexible Inputs Optional IP65 Protection Degree
	DC Cable & MC4 Connect & YBranch Cross Section:4mm2,6mm2 Optional Rated Voltage:600VDC(UL)/1000-VDC(TUV) Rated Current:55A,70A Colors:Black For STD,Red Optional. Lifetimes:≤25 years
PV Mounting System Mounting Rail & Rail Splice Kit: Al6005 & SUS304 Bolt. Mid & End Clamps:35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt Optional Cable Clip & Tie Optional Ground Clip & Lugs Optional

10KW solar system load reference:

10KW Solar home System
Load Name	Load'S Watt	Qty	Total Watt
Lights	11w	20	220w
Fan	80w	4	320w
Computer（LCD display）	150w	2	300w
Printer	250w	1	250w
Fax Machine	150w	1	150w
Refrigerator	120w	2	240w
Washing Machine	300w	1	300w
Microwave	1500w	1	1500w
Electric Cooker	300w	1	300w
Air Conditioner（1HP)	750w	4	3000w
Satellite Tv Receiver/Vcd	25w	1	25w
Color Tv（32 inch）	150w	2	300w
Water Pump	200w	1	200w
Total			7105w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

Why choose our inverter?

Sunchees Customer Installation Feedback and Comments

How does the 10000 Watt Solar System work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

10000 Watt Solar System Advantage:

100%green energy，no pollution，no noise
High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
Stand-alone system,easy installation and operation
Nice after-sale service,provide installation guide and technical support

Packing details:

Solar panels are packed in carton and pallet
PV combiners and inverter are packed in wooden box
Solar charge controller,gel battery,and cables are packed in carton
Solar panel racks are in cartons and bulk packing

10000 Watt Solar System case:

Company profile

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Hybrid Solar Energy System

Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

Solar Energy System Generator

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

Solar Lithium Battery Home Energy Storage System

Parameter Name	Parameter Value
Solar Panel - Max power	600W
Solar Panel - Solar Cell	Monocrystalline
Solar Panel - Maximum Power Current (IMP)	13.90A
Solar Panel - Output Tolerance	±3%
Solar Panel - MaximumPowerVoltage(VMP)	39.18V
Solar Panel - Open Circuit Voltage(VOC)	47.40V
Solar Panel - Short Circuit Current(ISC）	14.01A
Solar Panel - Temperate coefficient of Isc	0.05%/℃
Solar Panel - Frame	Aluminum alloy frame
Solar Panel - Temperature range	－40℃～ +85℃
Solar Panel - Product Dimension	2115 * 1052 *40 mm
Solar Panel - Weight	20.5 kg
Solar Panel - Certificates	TUV、IEC,CE
Solar Panel - Warranty	25Years
Solar Inverter - Model	8KW
Solar Inverter - Rated power	8000W
Solar Inverter - Rated voltage	24V/48V
Solar Inverter - Input Frequency	45-65Hz
Solar Inverter - Output Wave form	Pure Sine Wave
Solar Inverter - AC input voltage range	170-275VAC/80-135VAC
Solar Inverter - Battery voltage range	10.5-15VDC
Solar Inverter - Output voltage range	Inverter mode 110V/120V/220v/240v
Solar Inverter - Solar rated voltage	72V
Solar Inverter - Maximum input voltage	150V
Solar Inverter - Floating charge voltage	55V
Solar Inverter - Maximum efficiency	≥99%
Solar Inverter - Product size	805475230mm
LiFePO4 Lithium Battery - Battery Capacity	260Ah
LiFePO4 Lithium Battery - Battery Power	13312WH
LiFePO4 Lithium Battery - Battery Voltage	51,2V
LiFePO4 Lithium Battery - Maximum Charging Current	200A
LiFePO4 Lithium Battery - Discharge Voltage	89.6-113.4V
LiFePO4 Lithium Battery - Discharge Cut-Off Voltage	10V
LiFePO4 Lithium Battery - Operating Temperature	4°F to 140°F
LiFePO4 Lithium Battery - Cycle Life	≥6000
LiFePO4 Lithium Battery - Size	570405 810mm
LiFePO4 Lithium Battery - Lifespan	8-10 years
LiFePO4 Lithium Battery - Weight	115kg
PV combiner-PV array input numbers	4
PV combiner-Max single PV array current	10A
PV combiner-Single PV array fuse	10A
PV combiner-Output numbers	1
PV combiner-Max output current	40A
PV combiner-Reference weight (N.W/G.W)	5.3/9.3
PV combiner-Machine size (D X W X H)	340300140mm
PV combiner-Packaging size (D X W X H)	450420245mm
PV combiner-Ground wire size	≥6mm2
PV Cables - Rated Voltage	DC:1.8kv ACU./U:0.6/1kv
PV Cables -Cross Section	4mm2
PV Cables -Color	Red /Black
PV Cables -Application	Solar panel, inverter, combiner box, PV power station
PV Cables -Rated current	55A
PV Cables -Number of cores	NO
PV Cables -conductor	copper wire structure NO./mm 56 /0.3
PV Cables -Conductor stranded outside diameter	2.58mm
PV Cables -Test voltage kV / min	6.5/5 No breakdown
PV Cables -Operating voltage AC / DC (KV)	0.6 ~ 1.0/1.8
PV Cables -conductor resistance (20 °C)	40~+90°C
PV Cables -Conductor	≤4.75Ω / km
PV Cables -Maximum operating temperature	120 ℃
PV Cables -Working environment temperature °C	-40 ~ +90
