30KW  solar system configuration:

Three Phase Off grid solar power supply system: T-SP30KW
System Basic Information	Solar panel rated output power:31680W
	Suitable for daily power consumption : ＜162KWH
	Allowable max loads power : 30KW
Mono                        Poly	Solar panel               type: SP500W Half Cell mono
	Max power :500w / Vmp:40.5V  Voc:48.7V Solar Cell Use  Half Cell
	Imp 12.34A    Size : 2176*1098*40mm   Solar Panel  Effieciency : 22%
	25 years life time  (CE TUV) Solar Panel  Effieciency : 22%
	Connect way:
	10pcs solar panel in series is each string ,6 string connect to PV combiner
	Total : 60PCS	Terminal block: IP65 with MC4 connector
	PV combiner Model:PC6/384VDC;                          Multiple PV strings inputs. Simplify wiring between PV array and controller. protections to controller  thunderstorm& surge protection
	Charge controller controller model:384VDC/100A; Charging efficiency; 90%-95%, charging mode, intelligent control., temperature compensation, various protection functions;

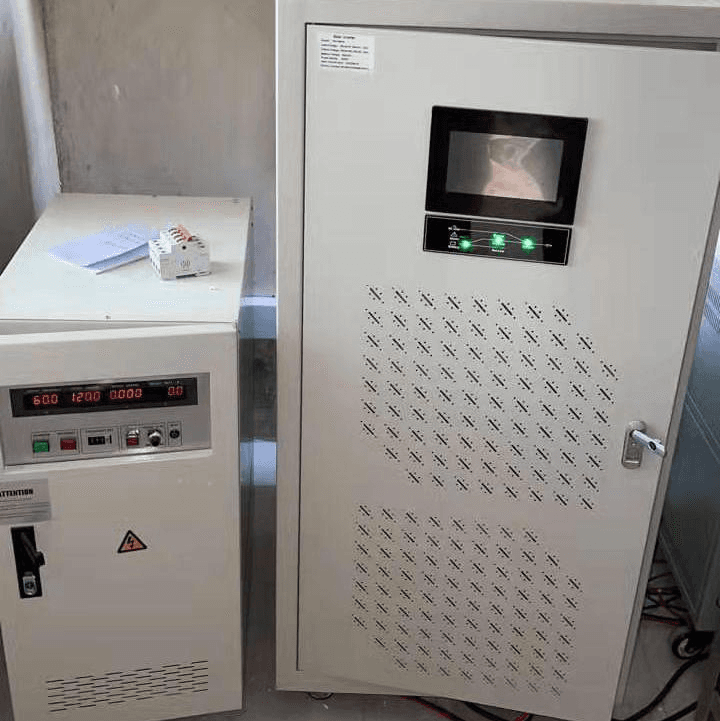

	Three Phase pure sine wave inverter
	Solar three phase Inverter power:TSC30kw/384VDC
	Charging efficiency; 90%-95%, Phase voltage setting:200 - 244VAC, pls confirm when order
	AC charger built-in connect city grid;Protection against short-circuit, over load, high-voltage and low-voltage protection
	Output:380/400/415V 50/60HZ
	Total : 1 Set
	Solar power gel battery Capacity:12V/200AH
	Servicelife : 5-6years Size:522*240*219mm / Weight:57KG
	Connect way: 32pcs battery in series connect to solar inverter
	Total : 32PCS
	Slope Rooftop or Flat rooftop including complete fittings
	wind load:55m/s,snow load:1.5kn/m2  structure:Anodized Aluminum+stainless steel, Angle adjustable
	Total : 1 Set
	pv cable
	35pcs 16mm2*35CM battery cable connect; 6pcs 16mm2*2M battery cable connect ;4mm2 PV cable 200M

Why choose our inverter?

SUNCHEES Can Provide What Service To Your ?

1：Professional R&D Team

We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries，Won five-star praise from 100% customers

2:OEM/ODM Service

Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ，Three new products lead the market every year.

3：Perfect after-sales service system

Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.

Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;

2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;

3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.

How does the off grid solar power system work:

• This system not only has solar power system function,but also has city grid complement function and UPS function
• At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
• At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
• When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

• 100%green energy，no pollution，no noise
• High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
• Stand-alone system,easy installation and operation
• Nice after-sale service,provide installation guide and technical support

Packing details:

• Solar panels are packed in carton and pallet
• PV combiners and inverter are packed in wooden box
• Solar charge controller,gel battery,and cables are packed in carton
• Solar panel racks are in cartons and bulk packing​

Our conpany:

100kw Solar system Nigeria case:

Warranty policy:

• Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
• lithium  battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
• Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement
