50KW-100KW solar power system
50KW-100KW solar power system
50KW-100KW solar power system
50KW-100KW solar power system

50KW-100KW solar power system

Solar Electriciy System Solar Energy Systems PWM Mppt Polycrystalline Silicon Roof Mounting 50KW Solar Power Plant 100KW

Place Of Origin : Guangdong,China

BrandName : SOLAR

MOQ : 1 set,Accpet OEM &ODM

Certificate : ISO, ETL, TUV, CE, RoHS

Payment : T/T, L/C, Paypal, Western Union

Produt Details

50KW  solar system configuration:

 Three Phase Off grid solar power supply system: T-SP50KW
System Basic Information  Solar panel rated output power:52800W
Suitable for daily power consumption : <273KWH
Allowable max loads power : 50KW
solar panel Mono                        Poly Solar panel               type: SP500W Half Cell mono
Max power :500w / Vmp:40.5V  Voc:48.7V Solar Cell Use  Half Cell
Imp 12.34A    Size : 2176*1098*40mm   Solar Panel  Effieciency : 22%
25 years life time  (CE TUV)
Connect way:10pcs solar panel in series is each string ,10 string connect to PV combiner
Total :100 PCS Terminal block: IP65 with MC4 connector
pv combiner box

PV combiner Model:PC6-400V ;

Multiple PV strings inputs.
Simplify wiring between PV array and controller. protections to controller  thunderstorm& surge protection
Total:2PCS

	 controller

controller model:400/100A; Charging efficiency; 90%-95%, charging mode, intelligent control.,
temperature compensation, various protection functions; Total:2PCS

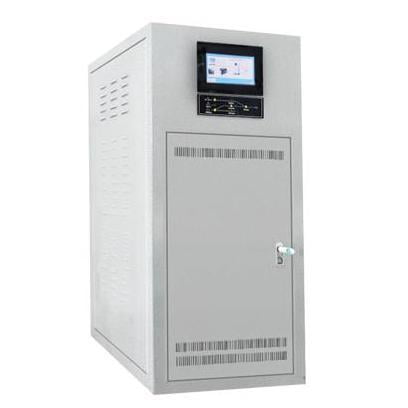

Three Phase hybrid inverter  Three Phase hybrid inverter
Solar three phase Inverter power:TSC50kw/400V
Low voltage protection:210v  High voltage proteciotn:300v; ;Charging efficiency; 90%-95%,

AC charger built-in connect city grid;Protection against short-circuit, over load, high-voltage and low-voltage protection

Output: 220V 380V 415V 50/60HZ
Total : 1 Set
gel battery Solar power gel battery Capacity:12V/200AH
Servicelife : 5-6years Size:522*240*219mm / Weight:57KG
 Connect way: 32pcs battery in series each string;3 string connect to solar hybrid inverter
Total : 96PCS
Rooftop panelFlat rooftop Slope Rooftop or Flat rooftop including complete fittings
wind load:55m/s,snow load:1.5kn/m2  structure:Anodized Aluminum+stainless steel, Angle adjustable
Total : 1 Set
cable 128pcs 16mm2*35CM battery cable connect; 8pcs 16mm2*1M battery cable connect ;4mm2 PV cable 300M


How does the off grid solar power system work:

  • This system not only has solar power system function,but also has city grid complement function and UPS function
  • At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
  • At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
  • When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads



Advantage:

  • 100%green energy,no pollution,no noise
  • High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
  • Stand-alone system,easy installation and operation
  • Nice after-sale service,provide installation guide and technical support

Packing details:

  • Solar panels are packed in carton and pallet
  • PV combiners and inverter are packed in wooden box
  • Solar charge controller,gel battery,and cables are packed in carton
  • Solar panel racks are in cartons and bulk packing​

Our conpany:

Corporate environment

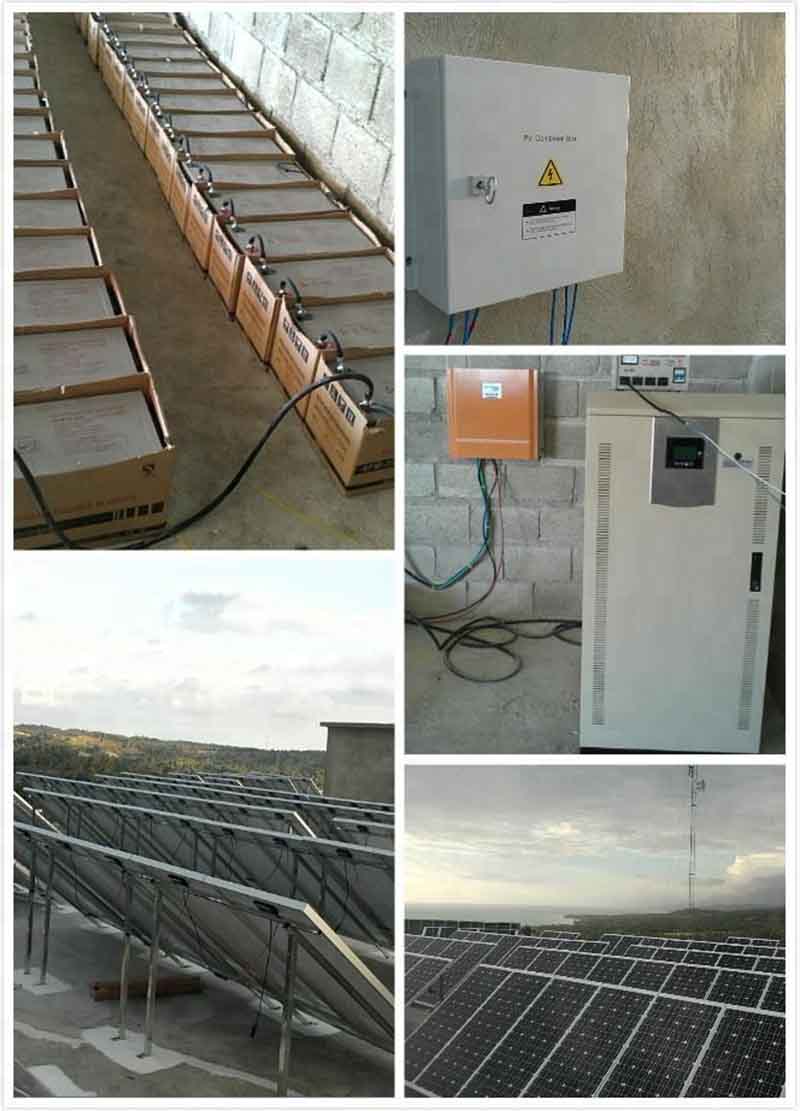

100kw Solar system Nigeria case:

Project feedback diagram

Project feedback diagram

Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • lithium  battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
  • Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement
