50KW Solar Power System Configuration:

Three Phase 50 KW Solar Power System: T-SP50KW
Mono                        Poly	Solar panel               type: SP600W Half Cell mono
	Max power :600w/ Vmp:39.18V Voc:48V
	lmp 13.90A Size : 2279mm*1134*30mm
	25 years life time (CE TUV)  Warranty:10years ,ship the free one for service
	PV combiner Modell PC10-48V Multiple Pv strings inputs :Simplify wiring between PV array and controller protections to controller , thunderstorm& surge protection
	Controller model 360 100A; Charging efficiency; 90%-95%, charging mode, intelligent control., temperature compensation, various protection functions

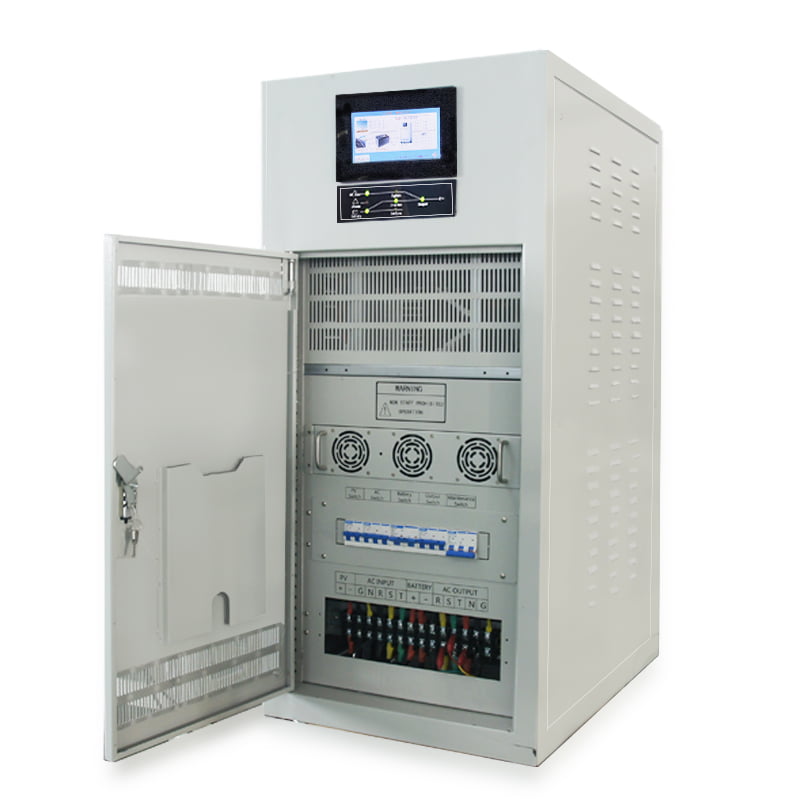

	Three Phase hybrid inverter
	Solar three phase Inverter power:TSC50kw360V
	Low voltage protection:210v  High voltage proteciotn:300v; ;Charging efficiency; 90%-95%,
	AC charger built-in connect city grid;Protection against short-circuit, over load, high-voltage and low-voltage protection
	Output: 240V 1120w
	Solar power lithium battery Capacity:360V1350AH 126KWH
	Lifespan: 8- 10 years.Full discharge cyde timesmore than 6000times
	Connect way: 1 string connect to solar hybrid inverter
	Solar panel rack Slope Rooftop or Flat rooftop in cluding complete fittings,
	wind load:55m/s,snow load:1.5kn/m2  structure:Anodized Aluminum+stainless steel, Angle adjustable
	Cable 4mm2 PV cable 200M

50 kw solar power system Connection Diagram

How does the 50 kw solar power system work:

• This system not only has solar power system function,but also has city grid complement function and UPS function
• At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
• At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
• When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

50 kw solar power system Solar Solutions For Hotels/Resorts Advantage:

• 100%green energy，no pollution，no noise
• High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
• Stand-alone system,easy installation and operation
• Nice after-sale service,provide installation guide and technical support

50 kw solar power system Packing details:

• Solar panels are packed in carton and pallet
• PV combiners and inverter are packed in wooden box
• Solar charge controller,gel battery,and cables are packed in carton
• Solar panel racks are in cartons and bulk packing​

Sunchees Solar System Supplier company:

100kw Solar system Nigeria case:

50kw solar system Company profile

Sunchees is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Main business: 5KW-50KW solar power system one stop solutions,  solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

FAQ

 Q: What can be included for 50kw solar system from Sunchees?
A: 50kw solar system includes: 600w solar panel, PV array combiner, 50kw Hybrid solar inverter with built-in MPPT controller, Maintenance-free Gel battery/Lithium Battery, Mounting structure, cables etc.

Q: Is the solution for complete 50kw solar system? If not, what else are needed?
A: Yes, we can provide complete 50kw solar panel system solution. If you don't need complete 50kw solar panel system, basic parts are available too.

Q: Is the 50kw solar power system solution always the same? Can I customize one?
A: No. We have professional teams make solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. Same power system may be with different configuration.

Q: Who will arrange the shipment?
A: We are doing FOB trade term. If you need, we could help you to arrange the shipment, we have long-term cooperation with good service forwarders.

Q: What's the difference between off grid and on grid solar power system?
A: Off grid solar power system doesn't connect to the power grid.  On grid solar power system connects to the power grid.

Q: Can the inverter switch automatically to national grid to protect batteries?
A: Yes. The inverter not only can connect to national grid but also can connect to third generator, as like diesel generator. When there is no sunshine and battery power is used out, the inverter will automatically switch to use national grid power and take the load and charge the battery at the same time. Please tell our sales before production.

Q: What is the lifetime of the 50kw solar power system?
A: Solar panel lifetime are 25 years, battery lifetime is 6~8 years. The whole set system can supply free power at least 6 years.When battery reaches its life expectancy, just change new one then the system will continue working. Sunchees always insists onhigh quality goods, we never sell cheap quality products that can only use few months. We are not doing one-time business!
If you have more questions about solar energy systems, please feel free to contact us. Choose Sunchees and choose satisfaction!
