5KW off grid solar system configuration:

Off grid solar power supply system Model: SP5000W
System Basic Information	Solar panel rated output power: 5KW
	Allowable max loads power : 5KW
	Solar panel type: SP500W Half Cell mono
	Max power :500w / Vmp:40.5V Voc:48.7V Solar Cell Use Half Cell
	Imp 12.34A Size : 2176109840mm
	25 years life time (CE TUV) Warranty:10 years ,ship the free one for service
	Connect way:2pcs solar panel in series is each string. 5strings connect to PV combiner
	Effieiency performace:25%years 80%,20years 85%.10 years 90%
Mono Poly	Total : 10PCS	Terminal block: IP65 with MC4 connector
	PV combiner Modell: PC4-48V
	Multiple PV strings inputs ;Simplify wiring between PV array and controller
	protections to controller	thunderstorm& surge protection
	Total :1PCS	Warranty:2 years , ship the free one for service
	Hybrid Solar Inverter
	Solar inverter with controller built it Inverter power:SI5000w/48v
	With built-in MPPT controller :60A/48V
	Charging efficiency：99%, Built-in AC charger (public network)
	Output:110v,120v,220v,230v,240v(optional) Product size:520420222mm
	Total : 1 Set Warranty :2 years, ship the free a main board for service
	Solar power Gel battery 13.31KWH(260AH/51.2V)
	Capacity:12V/200AH
	Servicelife : 5-6years Size:522240219mm / Weight:57KG
	Connect way: 20 pcs batteries in seriesconnect to inverter
	Weight:57kgs
	Total : 20Pcs Warranty :2 years, ship the free one for service
	Solar panel rack Slope Rooftop or Flat rooftop
	including complete fittings, wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable
	Total : 1 Set
	PV Cable
	2pcs 16mm2*1M battery cable ;4mm2 PV cable 100M;MC4 terminal connectors

5KW solar system load reference:

5000w Solar home System
Load Name	Load'S Watt	Qty	Total Watt
Lights	11w	8	88w
Fan	80w	2	160w
Computure	150w	2	300w
Printer	250w	1	250w
Fax Machine	150w	1	150w
Refrigerator	120w	1	120w
Washing Machine	300w	1	300w
Microwave	1000w	1	1000w
Electric Cooker	300w	1	300w
Air Conditioner	1500w	1	1500w
Satellite Tv Receiver/Vcd	25w	1	25w
Color Tv	100w	2	200w
Water Pump	200w	1	200w
Total			4513w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the off grid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

100%green energy，no pollution，no noise
High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
Stand-alone system,easy installation and operation
Nice after-sale service,provide installation guide and technical support

Packing details:

Solar panels are packed in carton and pallet
PV combiners and inverter are packed in wooden box
Solar charge controller,gel battery,and cables are packed in carton
Solar panel racks are in cartons and bulk packing

Solar Energy Power Plant

Our Factory:

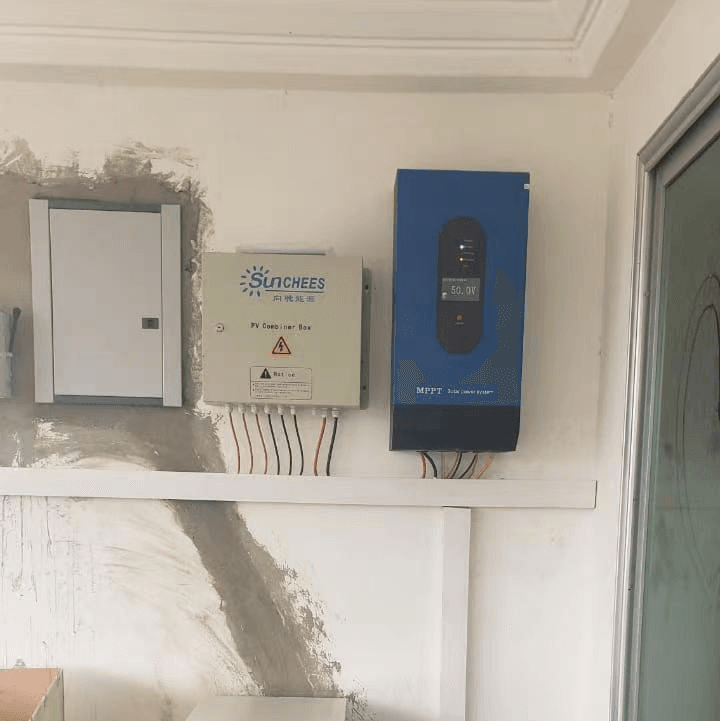

5KW Solar System Case:

Solar Powered Generator For Rv Residential Solar Panel Installation

Warranty policy:

Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
lithium battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement

Solar Panels For Your Home Cost 5Kw Solar Battery adventage

Parameter Name	Parameter Value
Solar Panel - Max power	600W
Solar Panel - Solar Cell	Monocrystalline
Solar Panel - Maximum Power Current (IMP)	13.90A
Solar Panel - Output Tolerance	±3%
Solar Panel - MaximumPowerVoltage(VMP)	39.18V
Solar Panel - Open Circuit Voltage(VOC)	47.40V
Solar Panel - Short Circuit Current(ISC）	14.01A
Solar Panel - Temperate coefficient of Isc	0.05%/℃
Solar Panel - Frame	Aluminum alloy frame
Solar Panel - Temperature range	－40℃～ +85℃
Solar Panel - Product Dimension	2115 * 1052 *40 mm
Solar Panel - Weight	20.5 kg
Solar Panel - Certificates	TUV、IEC,CE
Solar Panel - Warranty	25Years
Solar Inverter - Model	HIC5KW
Solar Inverter - Rated power	5000W
Solar Inverter - Rated voltage	24V/48V
Solar Inverter - Input Frequency	45-65Hz
Solar Inverter - Output Wave form	Pure Sine Wave
Solar Inverter - AC input voltage range	170-275VAC/80-135VAC
Solar Inverter - Battery voltage range	10.5-15VDC(single battery voltage)
Solar Inverter - Output voltage range	Inverter mode 220VAC-240VAC
Solar Inverter - Solar rated voltage	36V(24V)/72V(48V)
Solar Inverter - Maximum input voltage	150V
Solar Inverter - Floating charge voltage	27.5V(24V)/55V(48V)
Solar Inverter - Maximum efficiency	≥99%
Solar Inverter - Product size	610330200mm
Solar Inverter - N.W/G.W	33KGS/38KGS
Gel Battery - Nominal Capacity (20 hour rate)	200Ah
Gel Battery - Nominal Voltage	12V
Gel Battery - Capacity 25℃ 10 hour rate 9.99A	180Ah
Gel Battery - Charge Float	Initial Charging Current Less than 40A Voltage 13.6-13.8V
Gel Battery - Charge Cycle	Initial Charging Current Less than 40A Voltage 14.4-14.9V
Gel Battery - Internal Resistance	Full Charged Battery 25℃
Gel Battery - Battery Dimensions	522240 219mm
Gel Battery - Box Dimensions	537255 299mm
Gel Battery - Quantity Per Box	1 PC per box
Gel Battery - Net weight Per Cell	55.6kg+3%
Gel Battery - Net weight Per Box	55.6kg
Gel Battery - Gross Weight	56.2kg
PV combiner - PV array input numbers	4
PV combiner - Max single PV array current	10A
PV combiner - Single PV array fuse	10A
PV combiner - Output numbers	1
PV combiner - Max output current	40A
PV combiner - Reference weight (N.W/G.W)	5.3/9.3
PV combiner - Machine size (D X W X H)	340300140mm
PV combiner - Packaging size (D X W X H)	450420245mm
PV combiner - Ground wire size	≥6mm2
