Solar Energy System 100kw Solar System Battery Bank

100 kW solar power generation system is the most economical, reliable and mature renewable energy technology. 100 kW solar power system can generate electricity independently without the power grid and can achieve all-weather power generation. Are you still worried about power outages? Worried about high electricity bills? Learn about solar power systems and solve all your problems

What Does A Full Set 100kw Solar System Include?

Item	Model	Description	Quantity
1	Solar Panel	Mono 600W Longji	140 pieces or Customized
2	PV combiner	PC10-384V PV combiner	2 sets

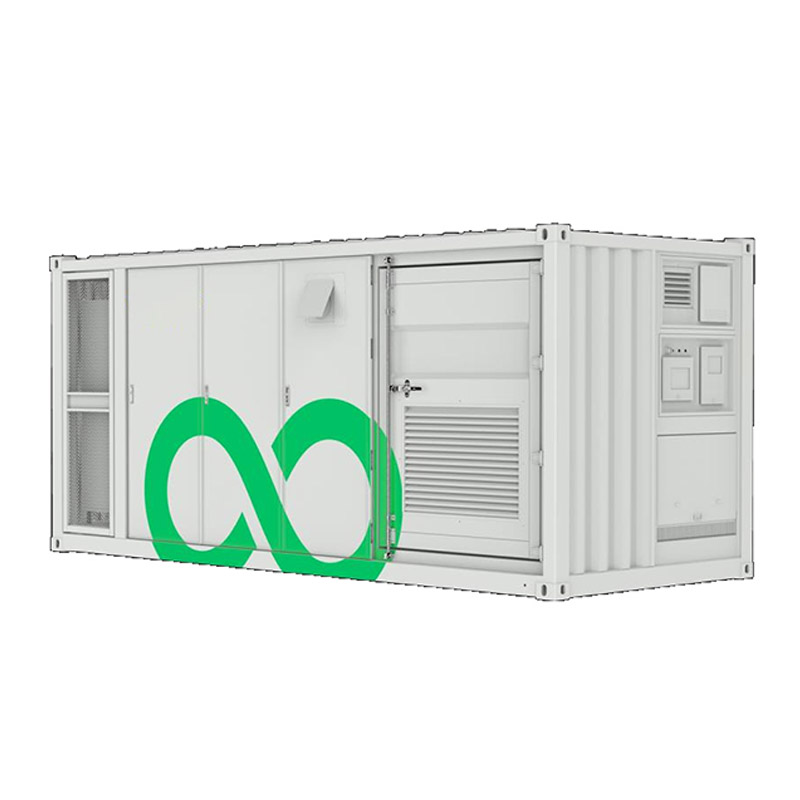

3	Commercial Energy Storage System	HC100KW-215kWh-02B	1 set or Customized
4	Battery	360V/300AH Lifepo4 Battery	1 sets
5	Mounting Support	Ground or Slope roof or Flat roof optional	160 sets or Customized
6	Cables and others	6mm2 PV cable 200M MC4 terminal connectors battery cable	Customized

Note: The 100kw solar system accessories are complete and can be installed directly according to the installation drawings. Online guidance can also be provided. If you have additional ideas, you can communicate at any time.

100kw solar system solves your power outage problem and the scenarios where it can be installed

How much solar panels do i need？

How many solar panels are needed for your own system is usually one of the issues that customers are concerned about. This is mainly based on the average daily or monthly electricity consumption in the past, the average peak sunshine hours in your location, etc. Our 100 kW solar power generation system is equipped with 160*600w solar panels, which is the standard configuration. If you want to know more details, please contact sunchees

Why choose our inverter?

Sunchees Customer Installation Feedback and Comments

What's the power output of a 100kW solar system?

100 kW solar power generation system is Suitable for daily power consumption of about 537kwh，Below is the parameter table of solar inverter

Rated power	100000w
Model	HC105k-215kWh-02B
Battery chemistry	LiFePO4@GF
Total Capacity	215kWh
Nominal Capacity	280Ah
Nominal voltape	768V
0peratingVoltage Range	650V-864V
Max Charging Current	140A
Max Discharge Cument	140A
Storage Temperature Range	20℃~45℃ & 4°F-113°F
0perating,Temperature Range	20℃-60℃ & 4°F- 140°F
Operating RH	10%~90%
Storage and Transportation RH	5%~95%
Working Altitude	<3000m
Communication Type	CAN/RS485
LW"H	*146014002203mm*
Net Weight	=2500Kg
PCS Parameters
Rated Output Power	1O5kW
MaxAC Current	167A
Max DC Power	126kW/1 Min
Rated Operating Voltage	230/400Vac
Approved Grid Fregvency Range	50Hz士5Hz
Voltape Deviation	< 5% Linear load Phase <3

100kw Solar Energy System Certificate

Company profile

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

sunchee solar system showroom and office

Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

600w solar panel factory

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

Solar Inverter Lithium Battery Factory Pictures

Parameter Name	Parameter Value
Solar Panel - Max power	600W
Solar Panel - Solar Cell	Monocrystalline
Solar Panel - Maximum Power Current (IMP)	13.90A
Solar Panel - Output Tolerance	±3%
Solar Panel - MaximumPowerVoltage(VMP)	39.18V
Solar Panel - Open Circuit Voltage(VOC)	47.40V
Solar Panel - Short Circuit Current(ISC）	14.01A
Solar Panel - Temperate coefficient of Isc	0.05%/℃
Solar Panel - Frame	Aluminum alloy frame
Solar Panel - Temperature range	－40℃～ +85℃
Solar Panel - Product Dimension	2115 * 1052 *40 mm
Solar Panel - Weight	20.5 kg
Solar Panel - Certificates	TUV、IEC,CE
Solar Panel - Warranty	25Years
Solar Inverter - Rated power	100000W
Solar Inverter - Model	HC105k-215kWh-02B
Solar Inverter - Battery chemistry	LiFePO4@GF
Solar Inverter - Total Capacity	215kWh
Solar Inverter - Nominal Capacity	280Ah
Solar Inverter - Nominal voltape	768V
Solar Inverter - OperatingVoltage Range	650V-864V
Solar Inverter - Max Charging Current	140A
Solar Inverter - Max Discharge Cument	140A
Solar Inverter - Operating RH	10%~90%
Solar Inverter - Working Altitude	<3000m
Solar Inverter - LWH	146014002203mm
Solar Inverter - Rated Output Power	105kW
Solar Inverter - Max AC Current	167A
Solar Inverter - Max DC Power	126kW/1 Min
Solar Inverter - Rated Operating Voltage	230/400Vac
Solar Inverter - Approved Grid Fregvency Range	50Hz±5Hz
Solar Inverter - Voltape Deviation	< 5% Linear load Phase <3
PV combiner-PV array input numbers	6
PV combiner-Max single PV array current	10A
PV combiner-Single PV array fuse	10A
PV combiner-Output numbers	1
PV combiner-Max output current	40A
PV combiner-Reference weight (N.W/G.W)	5.3/9.3
PV combiner-Machine size (D X W X H)	340300140mm
PV combiner-Packaging size (D X W X H)	450420245mm
PV combiner-Ground wire size	≥6mm2
PV Cables - Rated Voltage	DC:1.8kv ACU./U:0.6/1kv
PV Cables -Cross Section	4mm2
PV Cables -Color	Red /Black
PV Cables -Application	Solar panel, inverter, combiner box, PV power station
PV Cables -Rated current	55A
PV Cables -Number of cores	NO
PV Cables -conductor	copper wire structure NO./mm 56 /0.3
PV Cables -Conductor stranded outside diameter	2.58mm
PV Cables -Test voltage kV / min	6.5/5 No breakdown
PV Cables -Operating voltage AC / DC (KV)	0.6 ~ 1.0/1.8
PV Cables -conductor resistance (20 °C)	40~+90°C
PV Cables -Conductor	≤4.75Ω / km
PV Cables -Maximum operating temperature	120 ℃
PV Cables -Working environment temperature °C	-40 ~ +90
