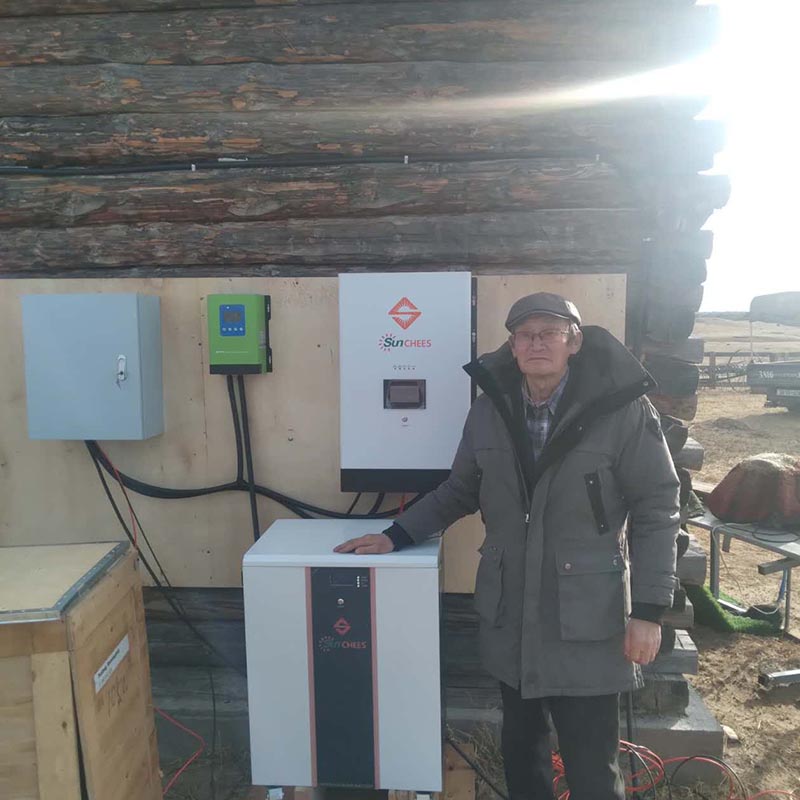

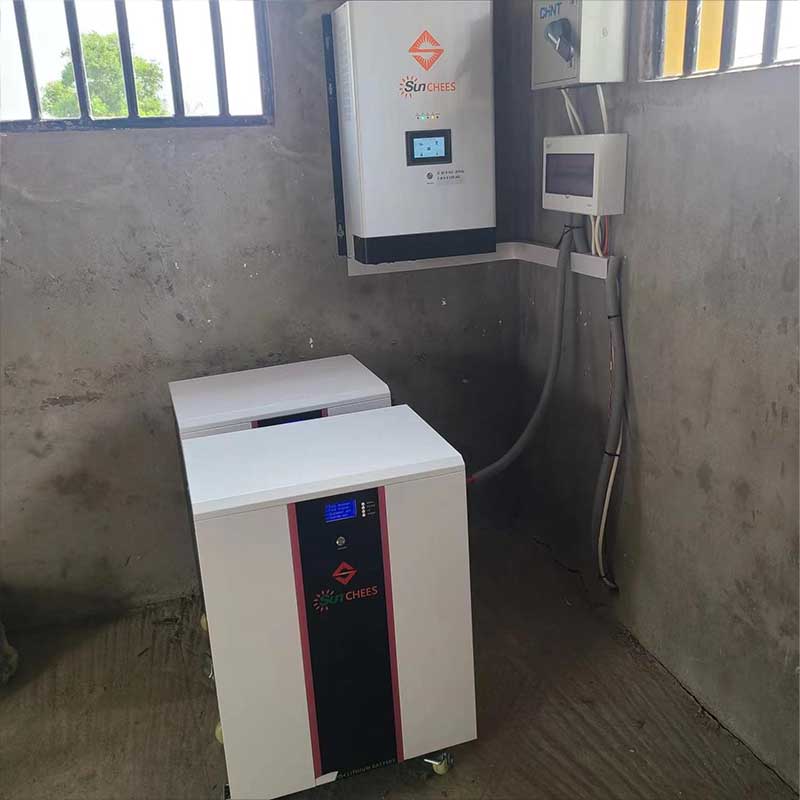

Sunchees Customer Installation Feedback and Comments

8kw-15kw Solar Power Plant System With Inverters For Home

Solar Panel System For Home

Home solar power generation system------Standard configuration solutions

The following solutions are different configurations of home power. If you have any special requirements, please let us know so that we can update the solutions for you. 10KW 20KW 30KW 40KW 50KW 60KW 70KW 80KW 90KW 100KW 150KW....

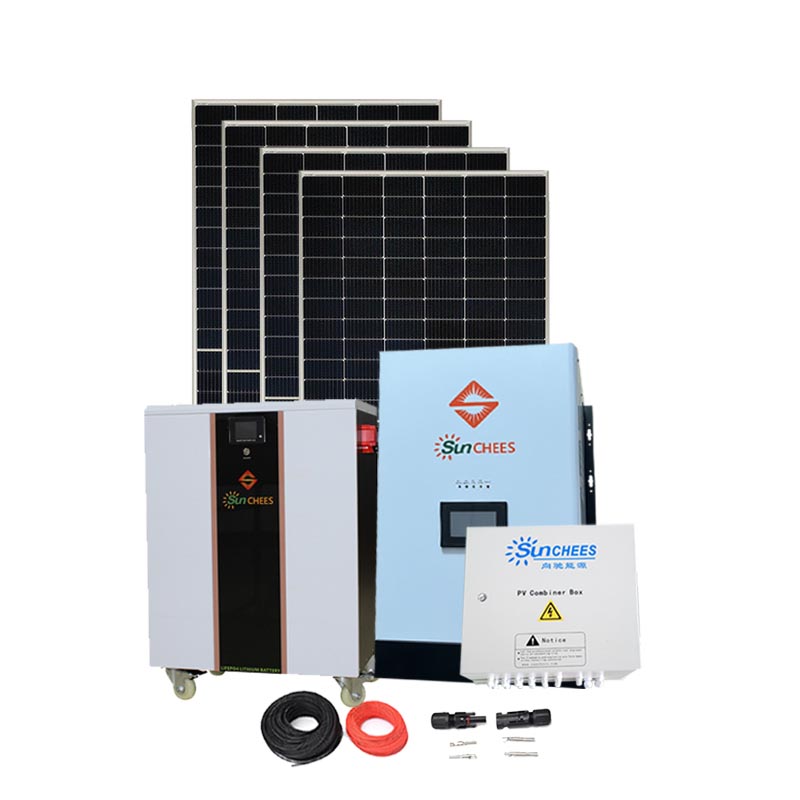

The full set of solar power generation system includes solar panels, solar controllers, batteries, inverters, cables, solar panel connectors, switches. Provide technical support, installation guidance videos, connection drawings and video online guidance.

Item	Model	Description	8KW	10KW	15kW
1	Solar Panel	Mono Perc 600W Solar Panel	9pcs	12pcs	15pcs
2	Combiner Box	Customized	1 pc	1 pc	1 pc
3	Lithium Battery or Lead Acid Battery	lithium battery racks, BMS and battery cables	1 set 51.2V/260AH	2 Set 51.2V/260AH	1 set 102.4V/300AH
4	Hybrid Inverter	220VAC 50HZ built in MPPT controller	8KW grid hybrid	10KW grid hybrid inverter	15KW grid hybrid inverter
5	Mounting Support	Roof/Ground	1 set	1 set	1 set
6	Cable	4mm² PV cable	500m	700m	1200m

Solar Generator With Panels

big capacity 51.2V 260Ah LiFePO4 lithium batteries
10KVA inverter are using large MPPT charging current 120A
Touch color screen, all the operation adjustment can be done on the touch screen easily
Big capacity Mosfet ,can withstand higher voltage and current

Why choose our inverter?

1. Lithium Battery Pack：95% DOD , More than 6000 cycle times
2. Long warranty period：10 years
3. Higher energy density,smaller volume for household.
4. Long Life and Safety.
5. Photovoltaic system：this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS)：the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
7. Expand ability： this battery pack can be easily expanded by adding expansion battery packs in parallel connection.

Solar System Advantage:

Our customers are located in 200 countries around the world

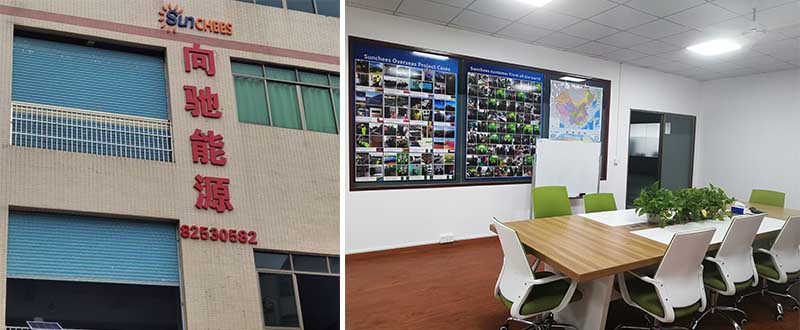

Company profile

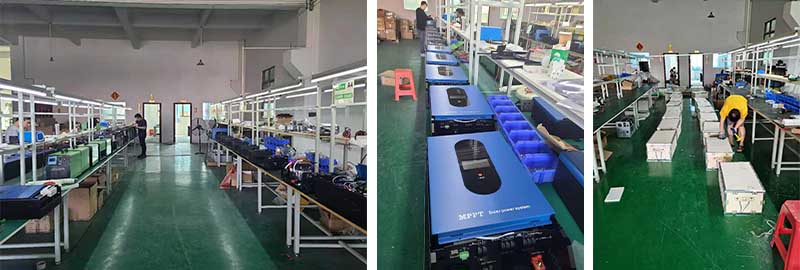

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Solar On Grid Inverter

Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

Solar Power Grid Tie Inverter

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

Wind Turbine Generator For Home

Parameter Name	Parameter Value
Solar Panel - Max power	600W
Solar Panel - Solar Cell	Monocrystalline
Solar Panel - Maximum Power Current (IMP)	13.90A
Solar Panel - Output Tolerance	±3%
Solar Panel - MaximumPowerVoltage(VMP)	39.18V
Solar Panel - Open Circuit Voltage(VOC)	47.40V
Solar Panel - Short Circuit Current(ISC）	14.01A
Solar Panel - Temperate coefficient of Isc	0.05%/℃
Solar Panel - Frame	Aluminum alloy frame
Solar Panel - Temperature range	－40℃～ +85℃
Solar Panel - Product Dimension	2115 * 1052 *40 mm
Solar Panel - Weight	20.5 kg
Solar Panel - Certificates	TUV、IEC,CE
Solar Panel - Warranty	25Years
Solar Inverter - PV Charging Current Range	120A
Solar Inverter - Max Input Power	10000W
Solar Inverter - MPPT Voltage Range	72-150VDC
Solar Inverter - Battery Voltage Range	40-60VDC
Solar Inverter - Output Wave form	Pure Sine Wave
Solar Inverter - Rated Output Power	10000W
Solar Inverter - Rated Battery Input Voltage	48V
Solar Inverter - Product size	630505840mm
LiFePO4 Lithium Battery - Battery Capacity	260Ah
LiFePO4 Lithium Battery - Battery Power	13312WH
LiFePO4 Lithium Battery - Battery Voltage	51,2V
LiFePO4 Lithium Battery - Maximum Charging Current	200A
LiFePO4 Lithium Battery - Discharge Voltage	89.6-113.4V
LiFePO4 Lithium Battery - Discharge Cut-Off Voltage	10V
LiFePO4 Lithium Battery - Operating Temperature	4°F to 140°F
LiFePO4 Lithium Battery - Cycle Life	≥6000
LiFePO4 Lithium Battery - Size	570405 810mm
LiFePO4 Lithium Battery - Lifespan	8-10 years
LiFePO4 Lithium Battery - Weight	115kg
PV combiner-PV array input numbers	4
PV combiner-Max single PV array current	10A
PV combiner-Single PV array fuse	10A
PV combiner-Output numbers	1
PV combiner-Max output current	40A
PV combiner-Reference weight (N.W/G.W)	5.3/9.3
PV combiner-Machine size (D X W X H)	340300140mm
PV combiner-Packaging size (D X W X H)	450420245mm
PV combiner-Ground wire size	≥6mm2
PV Cables - Rated Voltage	DC:1.8kv ACU./U:0.6/1kv
PV Cables -Cross Section	4mm2
PV Cables -Color	Red /Black
PV Cables -Application	Solar panel, inverter, combiner box, PV power station
PV Cables -Rated current	55A
PV Cables -Number of cores	NO
PV Cables -conductor	copper wire structure NO./mm 56 /0.3
PV Cables -Conductor stranded outside diameter	2.58mm
PV Cables -Test voltage kV / min	6.5/5 No breakdown
PV Cables -Operating voltage AC / DC (KV)	0.6 ~ 1.0/1.8
PV Cables -conductor resistance (20 °C)	40~+90°C
PV Cables -Conductor	≤4.75Ω / km
PV Cables -Maximum operating temperature	120 ℃
PV Cables -Working environment temperature °C	-40 ~ +90
