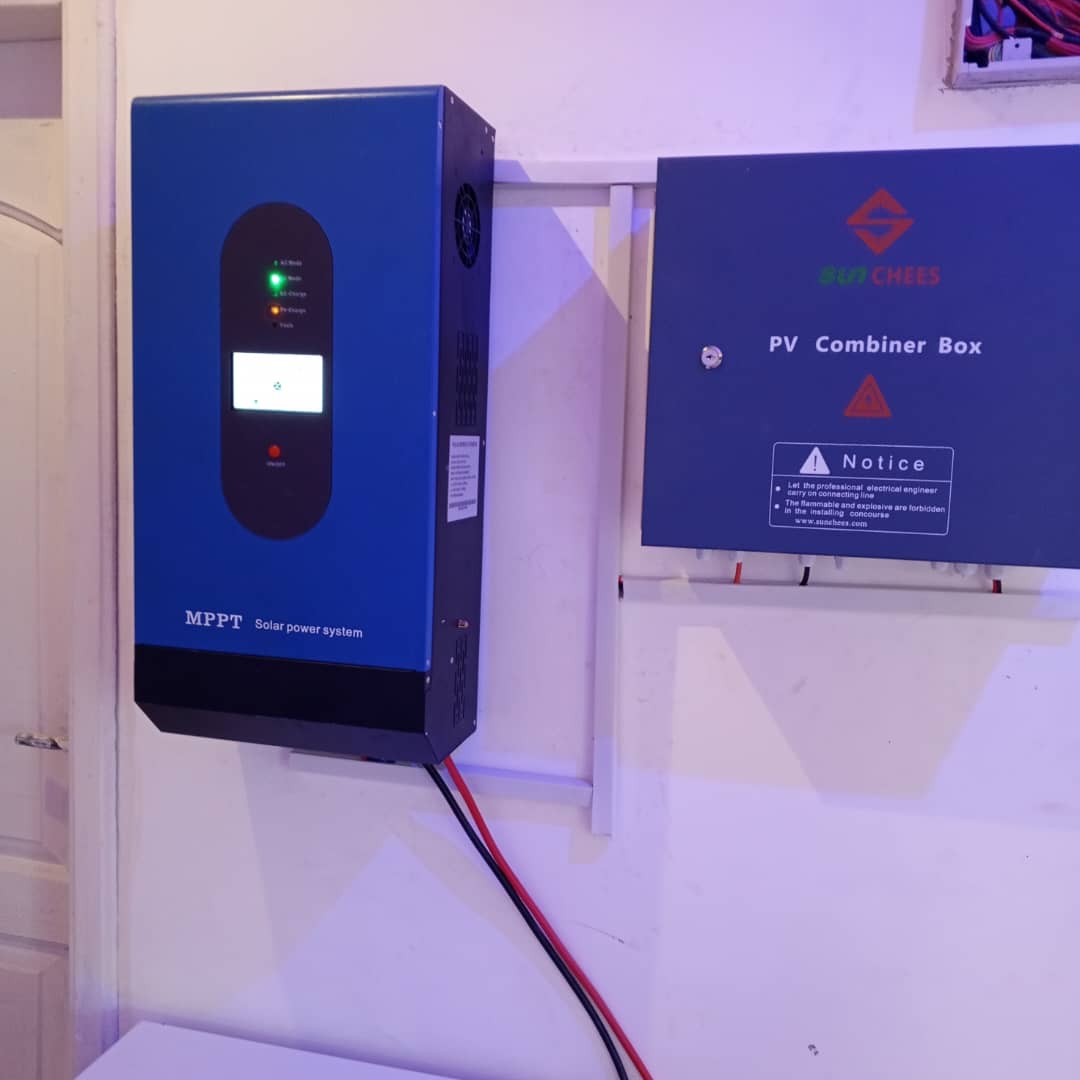

PV Combiner Product introduction

Photovoltaic power generation system, in order to reduce the photovoltaic module and inverter between the connecting cables, convenient maintenance, reduce the loss and improve the safety and reliability of the product, generally require in the photovoltaic module and inverter added between confluence device.

Photovoltaic junction box besides having the function of pv bus outside, and at the same time, should also have a current counter-attack, over current protection, over-voltage protection, lightning protection and a series of perfect protection function.

Main features:

two sets of independent photovoltaic array input/output, maximum opencircuit voltage 500 v
multiway photovoltaic array input, single way input array maximum currentof 10A
single wayphotovoltaictojointhehigh-voltagefusearrayprotection,counter-attack protection
Photovoltaic special high voltage lightning protection device protection;Photovoltaic special high voltage circuit breaker control output;
Meet outdoor installation requirements, protection class IP65;

Parameter Name	Parameter Value
PV combiner-PV array input numbers	4
PV combiner-Max single PV array current	10A
PV combiner-Single PV array fuse	10A
PV combiner-Output numbers	1
PV combiner-Max output current	40A
PV combiner-Reference weight (N.W/G.W)	5.3/9.3
PV combiner-Machine size (D X W X H)	340300140mm
PV combiner-Packaging size (D X W X H)	450420245mm
PV combiner-Ground wire size	≥6mm2
