Gel Battery Characteristics

Nominal Voltage			12V
Nominal Capacity (20 hour rate)			200Ah
Capacity 25℃(77°F)		10 hour rate 9.99A)	180Ah
		5 hour rate (32.9A)	164.5Ah
		1 hour rate (119.8A)	119.8Ah
Internal Resistance		Full Charged Battery 25℃	≤3.0mΩ
Capacity affected by Temperature (10 hour )		40℃ (104°F)	102%
		25℃ (77°F)	100%
		0℃ (32°F)	90%
		-15℃ (5°F)	70%
Self-Discharge 25℃(77°F) Capacity		after 3 month storage	92%
		after 6 month storage	84%
		after 12 month storage	65%
Charge (Constant Voltage) 25℃(77°F)	Float	Initial Charging Current Less than 40A Voltage 13.6-13.8V
Charge (Constant Voltage) 25℃(77°F)	Cycle	Initial Charging Current Less than 40A Voltage 14.4-14.9V

Product Dimensions

Parameter Name	Parameter Value
Gel Battery - Nominal Capacity (20 hour rate)	200Ah
Gel Battery - Nominal Voltage	12V
Gel Battery - Capacity 25℃ 10 hour rate 9.99A	180Ah
Gel Battery - Charge Float	Initial Charging Current Less than 40A Voltage 13.6-13.8V
Gel Battery - Charge Cycle	Initial Charging Current Less than 40A Voltage 14.4-14.9V
Gel Battery - Internal Resistance	Full Charged Battery 25℃

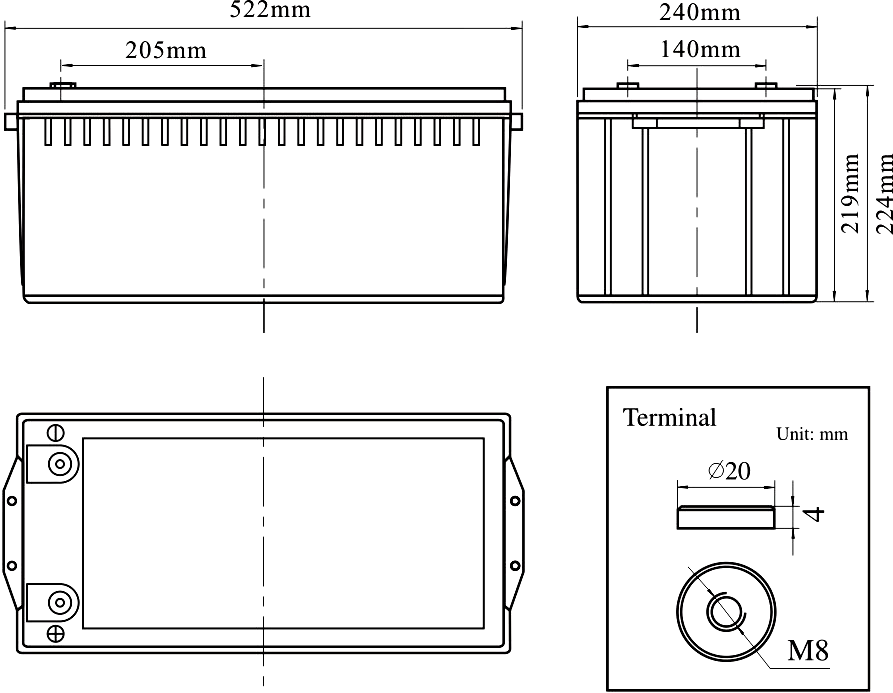

Gel Battery - Battery Dimensions	522240 219mm
Gel Battery - Box Dimensions	537255 299mm
Gel Battery - Quantity Per Box	1 PC per box
Gel Battery - Net weight Per Cell	55.6kg+3%
Gel Battery - Net weight Per Box	55.6kg
Gel Battery - Gross Weight	56.2kg
