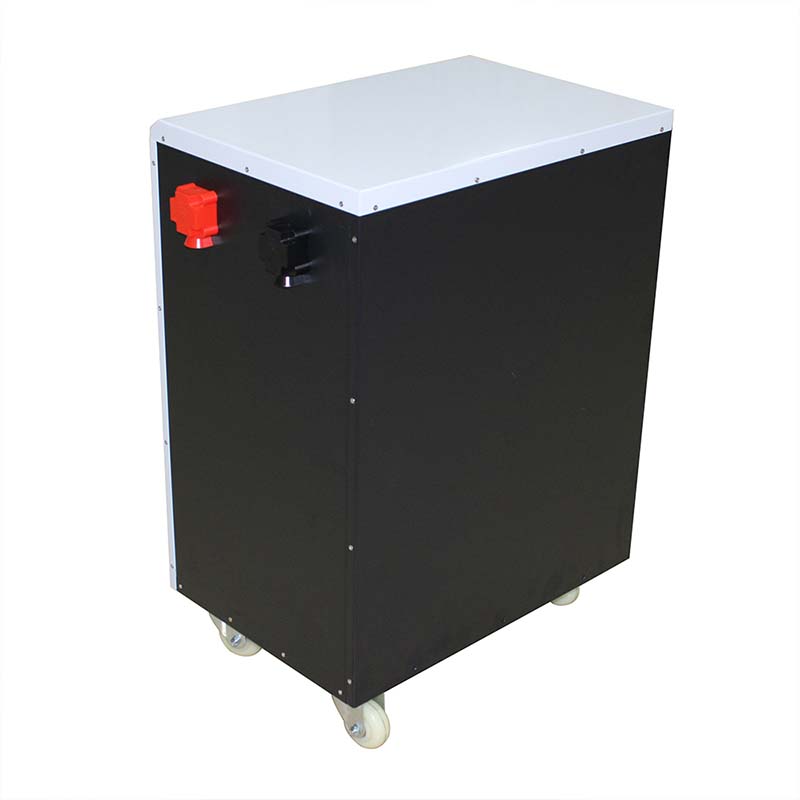

260AH Lithium Battery Datasheet

Model	LPBS48V260
Capacity	13312WH
Rated Voltage	51.2V
Charge Voltage	57.6V
Discharge Voltage Range	44.8V-56.7V
Max charge& Discharge Current	200A
DOD	95%
Modeles Connection	1-6 in parallel
Communication	CAN&RS485
Monitoring & Protection	With BMS protection in each Module, and breaker embedded in the system
Ingress Protection	IP21
Certifiction	TUV /CE
Cycle Life	>6000，@25°C
Working Temperature Range	-10-50°C
Life time	8 years
Net Weight(KG)	124
Gross Weight(kG)	135
Dimension(MM)	507408810

Lithium Battery Features:

1. Iron Phosphate-lithium Battery Powerwall ：95% DOD , More than 6000 cycle times
2. Long warranty period：5 years
3. Higher energy density,smaller volume for household.
4. Support Connected in parallel mode for expansion (up to 6 pieces）.
5. Photovoltaic system：this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS)：the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
7. Expand ability： this battery pack can be easily expanded by adding expansion battery packs in parallel connection.
8: Easy to move.Lithium battery box with 4 pcs wheels

Parameter Name	Parameter Value
LiFePO4 Lithium Battery - Battery Capacity	260Ah
LiFePO4 Lithium Battery - Battery Power	13312WH
LiFePO4 Lithium Battery - Battery Voltage	51.2V(43.2V-58.4V)
LiFePO4 Lithium Battery - Maximum Charging Current	200A
LiFePO4 Lithium Battery - Discharge Cut-Off Voltage	10V
LiFePO4 Lithium Battery - Max Charge Voltage	58.4V
LiFePO4 Lithium Battery - Operating Temperature	4°F to 140°F
LiFePO4 Lithium Battery - Cycle Life	≥6000
LiFePO4 Lithium Battery - Size	570408 810mm
LiFePO4 Lithium Battery - Lifespan	8-10 years
LiFePO4 Lithium Battery - Weight	115kg
