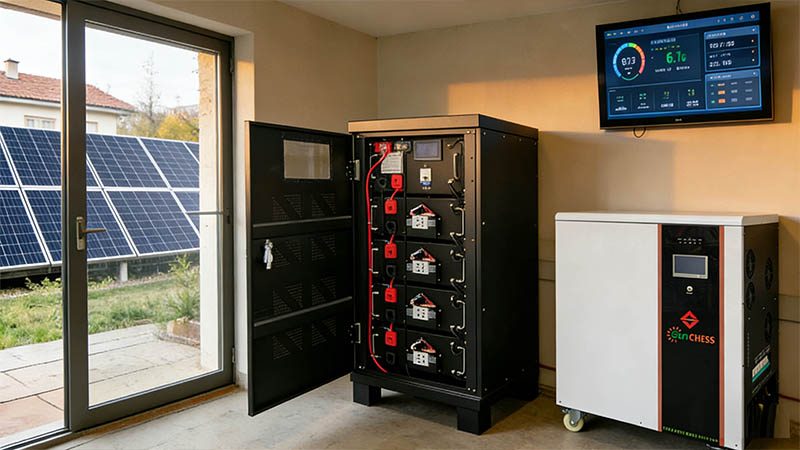

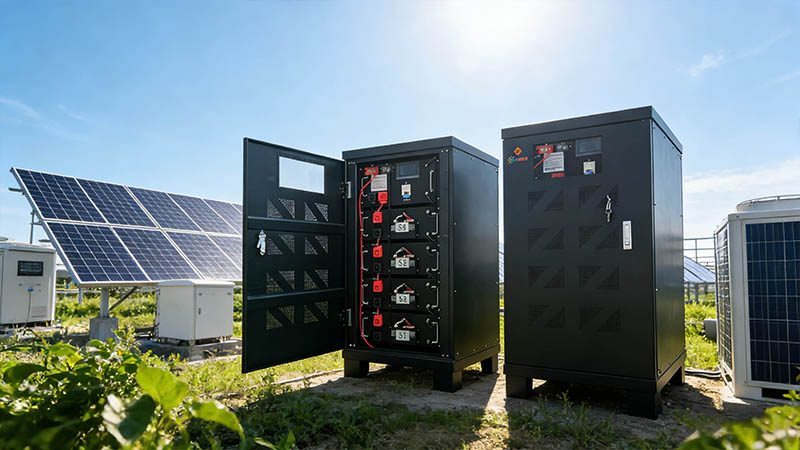

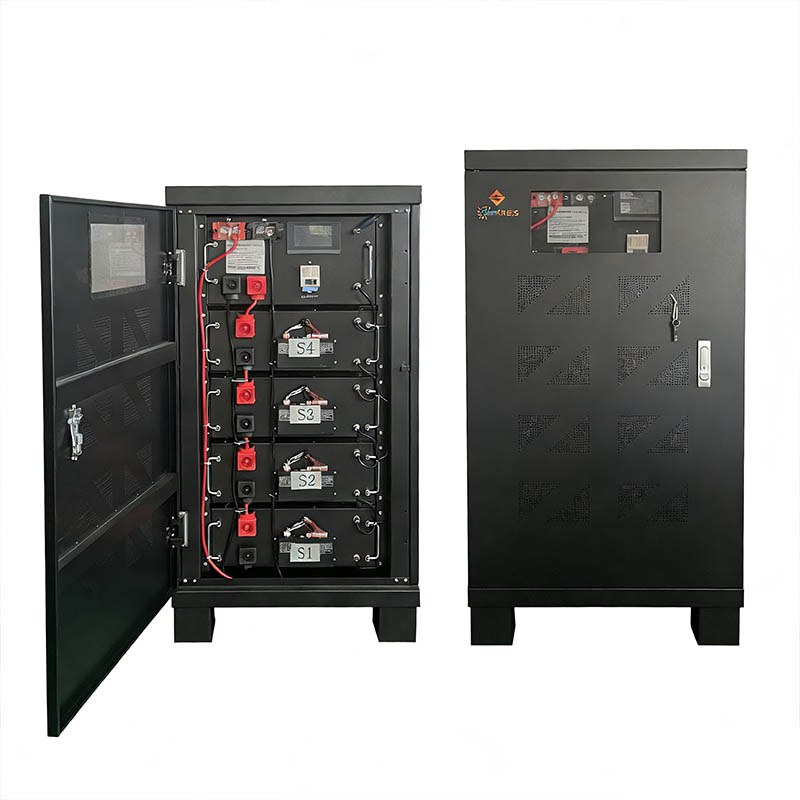

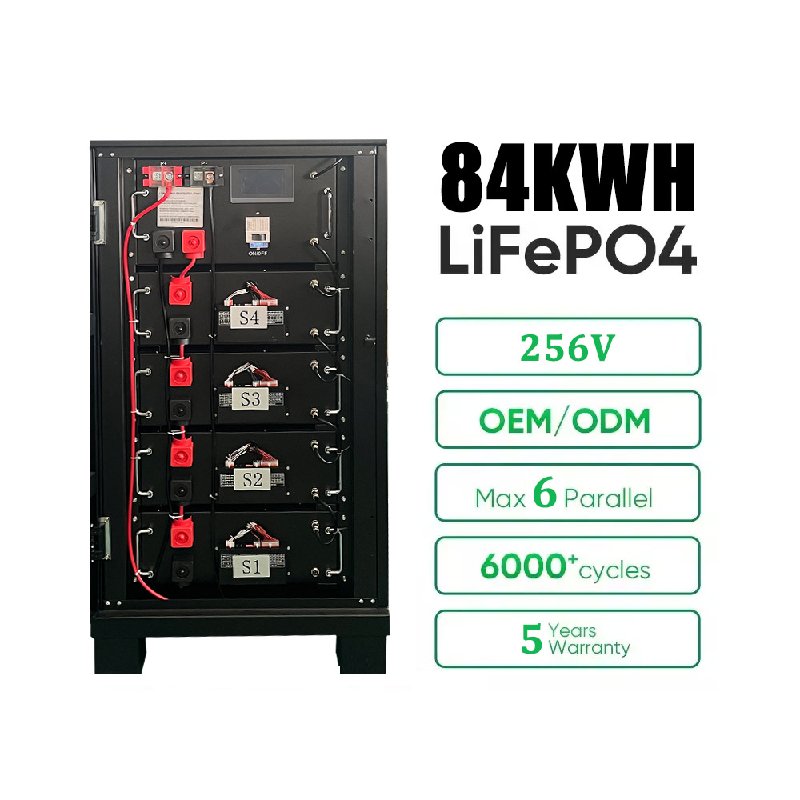

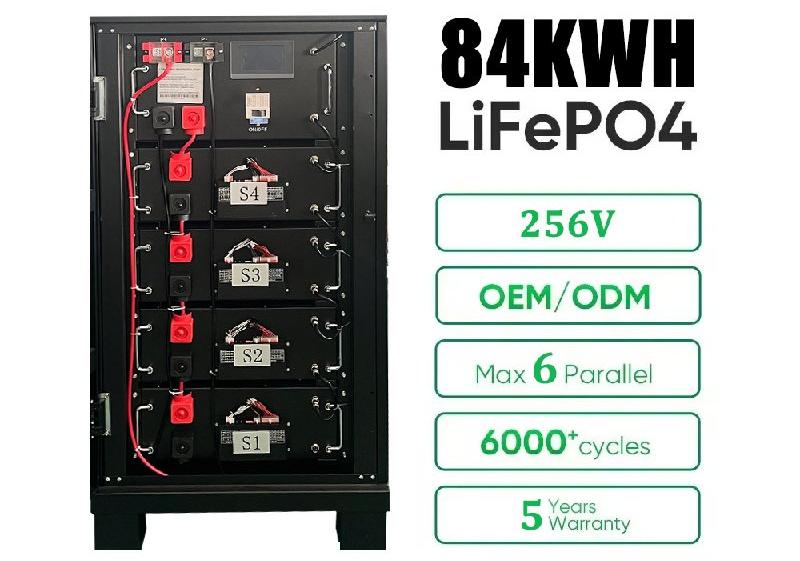

256V 330AH Lithium Battery Bank Parameter

Model	LPBS256VDC330
Capacity	256V84.4KWH
Voltage	256V
Rated Voltage	256V
Charge Voltage	216V
Discharge Voltage Range	214V-256V
Max charge& Discharge Current	120A
DOD	96%
Modeles Connection	1-6 in parallel
Communication	CAN&RS485
Monitoring & Protection	With BMS protection in each Module, and breaker embedded in the system
Ingress Protection	IP21
Alarms	Battery Operation/Out of Battery/System fault
Certifiction	TUV / CE
Cycle Life	>6000 ，@25°C
Working Temperature Range	-10-50°C
Life time	10 years
Net Weight(KG)	490
Gross Weight(KG)	530
Dimension(MM)	1630840675

Parameter Name	Parameter Value
LiFePO4 Lithium Battery - Battery Capacity	330Ah
LiFePO4 Lithium Battery - Battery Power	256V84.4KWH
LiFePO4 Lithium Battery - Rated Voltage	256V
LiFePO4 Lithium Battery - Maximum Charging Current	120A
LiFePO4 Lithium Battery - Maximum Discharging Current	120A
LiFePO4 Lithium Battery - Charge Voltage	216V
LiFePO4 Lithium Battery - Discharge Voltage Range	214V-256V
LiFePO4 Lithium Battery - Operating Temperature	4°F to 140°F
LiFePO4 Lithium Battery - Cycle Life	≥6000
LiFePO4 Lithium Battery - Size	1630840675 (mm)
LiFePO4 Lithium Battery - Lifespan	8-10 years
LiFePO4 Lithium Battery - Weight	530kg
