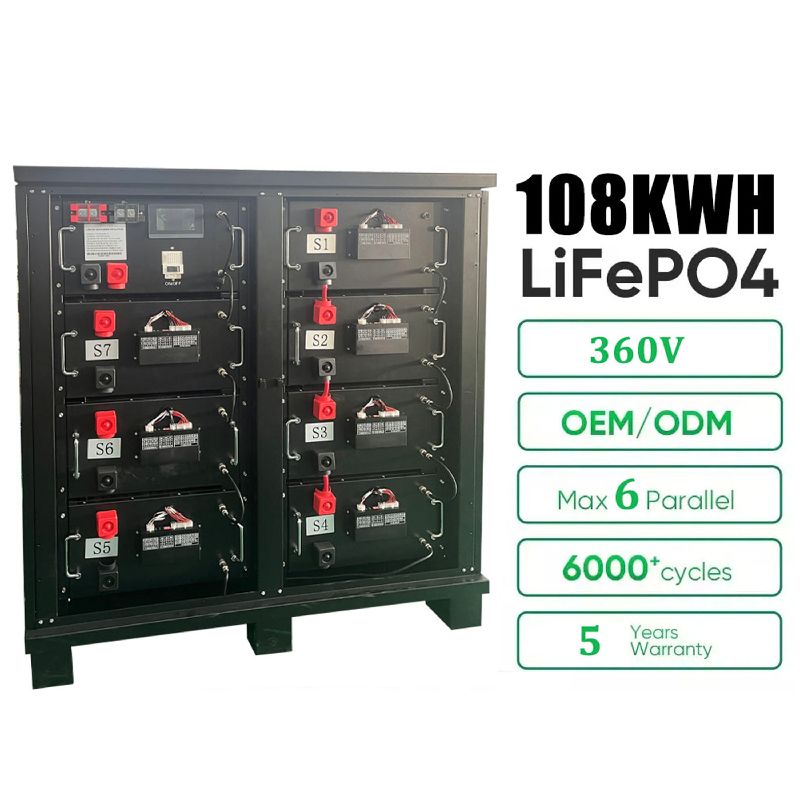

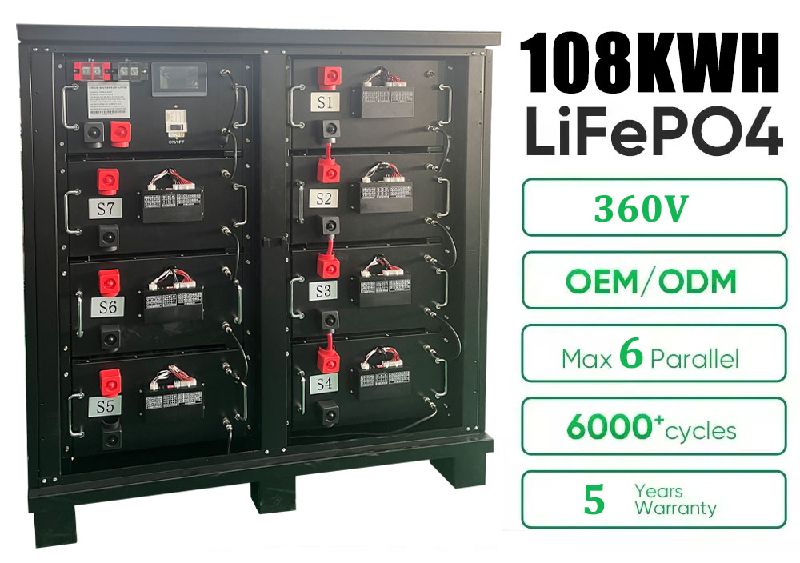

360V 300AH Lithium Battery Datasheet

Model	LPBS360VDC300
Capacity	360V108KWH
Voltage	360V
Rated Voltage	358.4V
Charge Voltage	403.2V
Discharge Voltage Range	313.6V-397.6V
Max charge& Discharge Current	150A
DOD	96%
Modeles Connection	1-6 in parallel
Communication	CAN&RS485
Monitoring & Protection	With BMS protection in each Module, and breaker embedded in the system
Ingress Protection	IP21
Alarms	Battery Operation/Out of Battery/System fault
Certifiction	TUV / CE
Cycle Life	＞6000，@25°C
Working Temperature Range	-10-50°C
Life time	10 years
Net Weight(KG)	650
Gross Weight(KG)	700
Dimension(MM)	135010101780
