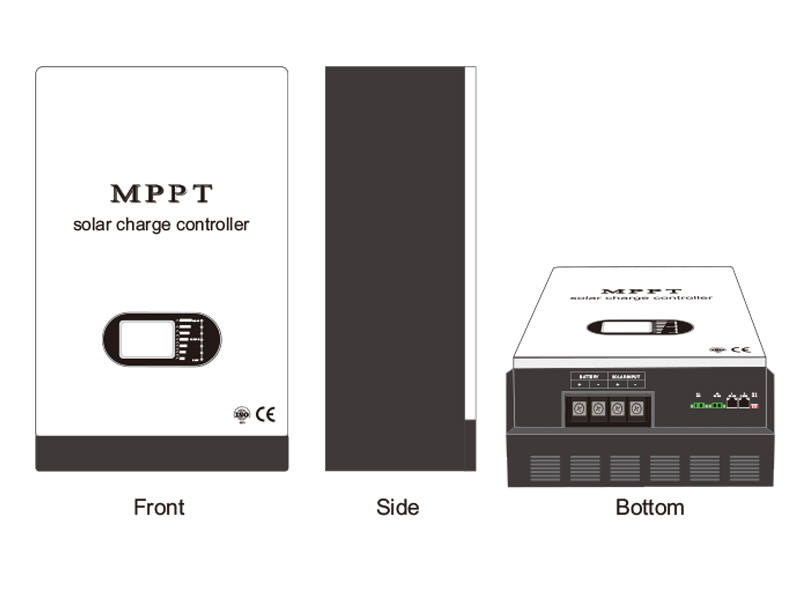

100A MPPT Solar CHARGE CONTROLLER for lithium batteries​

The HVC100A MPPT Solar Charge Controller is a professional-grade controller designed for large-scale residential, commercial, and industrial off-grid solar systems. With advanced Maximum Power Point Tracking (MPPT) technology, it ensures maximum efficiency and stable performance for solar battery charging.

Key Features

• Wide System Voltage Compatibility: Supports 192V / 220V / 240V / 360V / 384V systems, making it highly versatile for different solar applications.

• High Current Output: Rated at 100A with a maximum current of 101A, ideal for high-capacity solar arrays and battery banks.

• High Conversion Efficiency: Up to 96.5% efficiency, minimizing energy loss and maximizing solar power utilization.

• Fast Response & Reliable Startup: Startup time ≤10s and dynamic response recovery ≤500μs, ensuring quick and stable performance.

• Advanced Charging Method: Three-stage charging – constant current, equalization, and float charging – to extend battery life and improve system reliability.

• Multiple Protections: Built-in protection against reverse input/output, low & high voltage, short circuit, and overheating (up to +85℃).

• User-Friendly Display: Equipped with LCD and LED indicators to monitor charging status, system voltage, and protection modes in real time.

• Durable Cooling System: Intelligent air-cooling with temperature-controlled fan, ensuring quiet operation ≤50dB and long service life.

Technical Highlights

• Operating Voltage Ranges:

  • 192V: DC260–450V

  • 220V: DC260–450V

  • 240V: DC280–450V

  • 360V: DC450–750V

  • 384V: DC450–750V

• Max PV Input Capacity:

  • 192V: 10kW / 12kW / 15.3kW / 20kW

  • 220V: 11kW / 13.2kW / 17.6kW / 22kW

  • 240V: 12kW / 15kW / 19.2kW / 24kW

  • 360V: 18kW / 22kW / 28.8kW / 36kW

  • 384V: 20kW / 23kW / 31kW / 39kW

• Float Charging Voltage: 220V / 248V / 276V / 414V / 441V (depending on system voltage).

• Environmental Tolerance: Operating temperature from -20℃ to +40℃, storage from -40℃ to +70℃, humidity 0–90%RH, working altitude up to 3000m.

Why Choose HVC100A MPPT Charge Controller?

This controller is engineered for high-power solar systems requiring stable, efficient, and safe battery charging. Whether used in residential solar installations, commercial energy projects, or industrial off-grid applications, it guarantees optimized power conversion, intelligent protection, and long-term durability.
