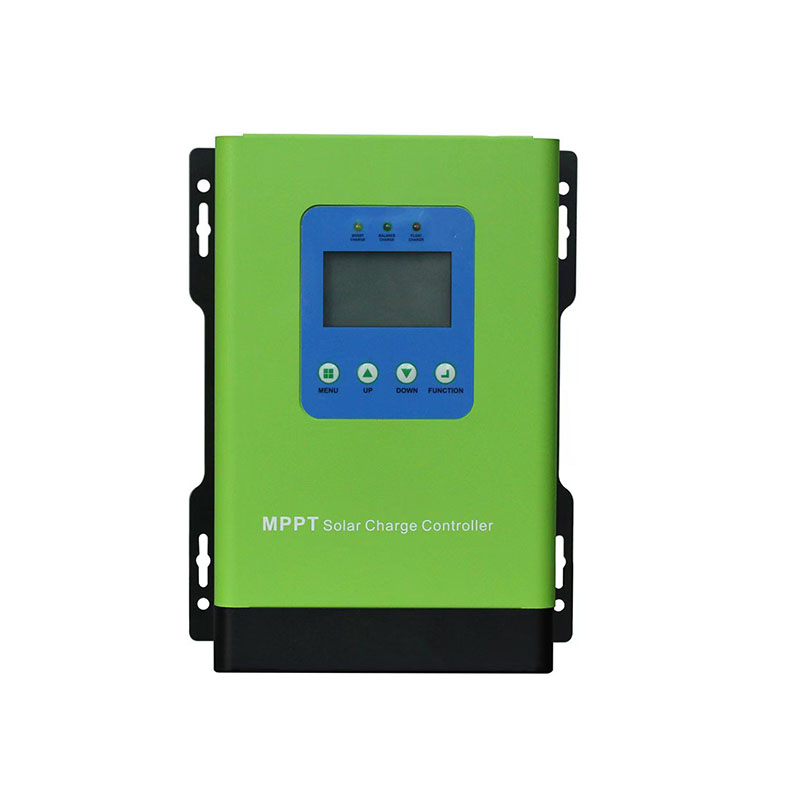

The LVC60A 60A MPPT Solar Charge Controller is designed for reliable and efficient solar power management in off-grid systems. With intelligent MPPT (Maximum Power Point Tracking) technology, it ensures up to 96.5% conversion efficiency, maximizing the energy harvested from your solar panels. Suitable for 12V, 24V, and 48V systems, this controller automatically recognizes system voltage and supports a wide range of solar applications, from small residential setups to larger off-grid systems.

Key Features

High Charging Capacity – Rated at 60A with a maximum current of 62A, supporting PV input power up to 3600W (48V systems).
MPPT Technology – Automatic real-time tracking for maximum power output from solar panels.
Multi-Stage Charging – Three-stage charging (Boost, Equalize, Float) to extend battery lifespan and improve performance.
Fast Response – Startup time ≤10s with a dynamic response recovery time ≤500µs.
Low Power Loss – Quiescent dissipation ≤2W for higher overall efficiency.

Protection & Safety

The LVC60A is equipped with a full set of protective features:

Reverse polarity protection (input & output)
Low voltage and high voltage protection
Short circuit protection
Over-temperature protection at +85°C
Intelligent cooling with temperature-controlled fan for long service life

Wide Compatibility

System Voltage Range: Auto-recognized 12V / 24V / 48V
Battery Voltage Range: 12V (DC9-15V), 24V (DC18-30V), 48V (DC36-60V)
MPPT Tracking Range: 12V (DC20-100V), 24V (DC38-150V), 48V (DC65-150V)
Max PV Input Power: 12V – 900W / 24V – 1800W / 48V – 3600W

Technical Specifications

Efficiency: ≥96.5%
Noise Level: ≤50dB
Working Temperature: -20℃ ~ +40℃
Storage Temperature: -40℃ ~ +70℃
Humidity: 0~90%RH
Altitude: ≤3000m

60A MPPT solar CHARGE CONTROLLER

ltems	LVC60A
System voltage	12V/24V/48V(Reconized Auto)
Rated current	60A
Max current	62A
Charge mode	MPPT Automatic maximum power point tracking
Charge method	Three stage:Boost,Equalize,Float
Startup time	≤10s
Dynamic response time to recover	≤500us
Quiescent dissipation	≤2W
Efficiency	≥96.5%
Identify range of battery voltage	12V	DC9V-15V
	24V	DC18V-30V
	48V	DC36V-60V
MPPT working Range	12V	DC20V-100V
	24V	DC38V-150V
	48V	DC65V-150V
Max PV Input	12V	900W
	24V	1800W
	48V	3600W
LCD	See LCD screen instruction
Input polarity reverse connection protection	Yes
Output polarity reverse connection protection	Yes
Low voltage protection	Yes
High voltage protection	Yes
Short circuit protection	Yes
Over temperature protection	+85℃
Cooling method	air cooling,fan speed is regulated by temperature,when internal temperature is low;when the controller stops working,the fan stops working
Noicy	≤50dB
humidity	0~90%RH
Height	0~3000M
Temperature	-20℃-+40℃
Storage temperature	-40℃~+70℃
