10Kva Complete Hybrid Solar Energy System
10Kva Complete Hybrid Solar Energy System
10Kva Complete Hybrid Solar Energy System
10Kva Complete Hybrid Solar Energy System
10Kva Complete Hybrid Solar Energy System

10Kva Complete Hybrid Solar Energy System

Complete Kit 10kva Lifepo4 Battery Pack Home Solar System BMS Household Solar Storage System For Solar System

MODEL : SP-10Kva

SYSTEM TYPE : Hybrid Solar System

PRODUCT ORIGIN : CHINA

SHIPPING : Support Express · Sea freight · Land freight · Air freight

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Whatapp:+86 13690853732

Email: candy@sunchees.com

Product Details

What’s in an hybrid solar system?

We assemble, wire, and test all the parts necessary to run your off-grid system right in our warehouse. Our designers are pros at building flexible systems that can be expanded if your energy needs change down the road.

10KW Hybrid solar system configuration:

Residential Solar Panel Kits

Half cell Solar panel

Model : 470W-500W Vmp:40.5V

Voc:48.7V Size :2176*1098*40mm

High reliability High efficiency up to 22%

Life time : 25 years

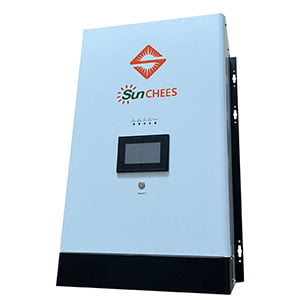

solar inverter with MPPT charger controller

Touch color screen Intelligent control,

easy operation Lithium battery , gel battery

all acceptable pure sine wave inverter and a UPS fuction .

Remote monitoring is Auail-able by Using WIFI monitoring kit.

Whole House Solar Panel Kit
10kw Solar System With Battery Storage

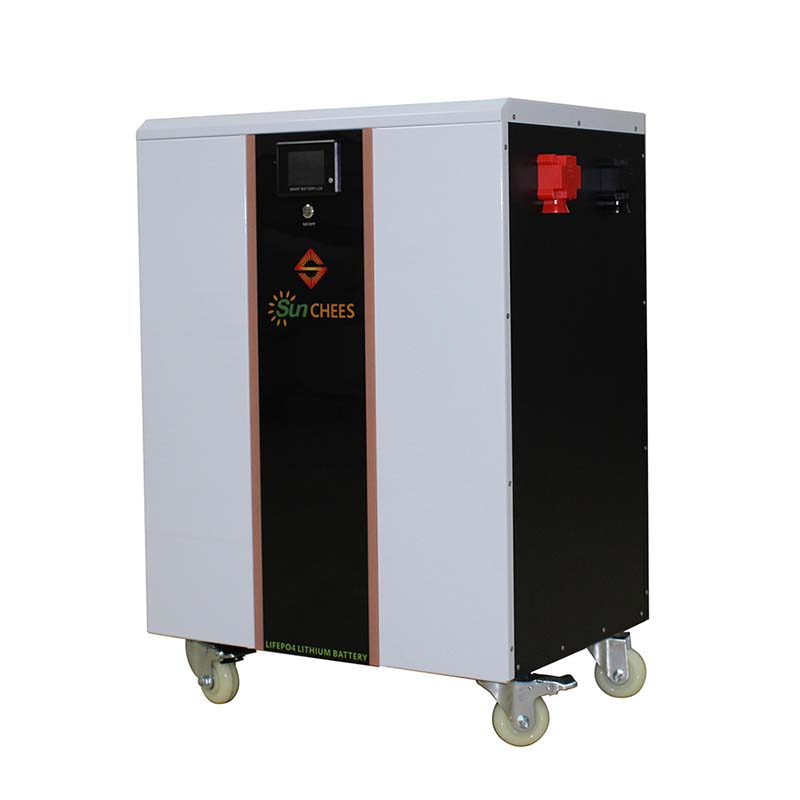

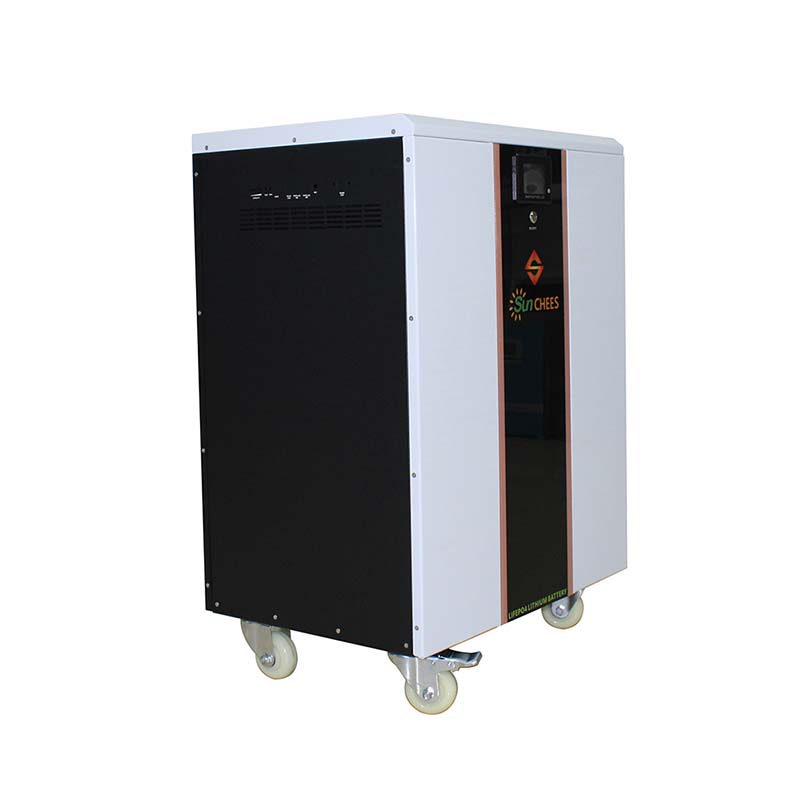

Lithium battery

Nominal voltage : 51.2V

Nominal Capacity : 260AH

Cycles time: 6000 Life time : 10 years

Main Disconnect Box

DC Disconnect

AC Disconnect

Battery Disconnect

PV Combiner

Flexible Inputs Optional

IP65 Protection Degree

DC Cable & MC4 Connect & YBranch

Cross Section:4mm2,6mm2 Optional

Rated Voltage:600VDC(UL)/1000-VDC(TUV)

Rated Current:55A,70A

Colors:Black For STD,Red Optional.

Lifetimes:≤25 years

PV Mounting System

Mounting Rail & Rail Splice Kit:

Al6005 & SUS304 Bolt. Mid & End Clamps:35,40,45,50mm

L Foot Asphalt Shingle Moount & Hanger Bolt Optional

Cable Clip & Tie Optional

Ground Clip & Lugs Optional

10KW  solar system load reference:

10Kva Solar home System
Load Name Load'S Watt Qty Total Watt
Lights 11w 20 220w
Fan 80w 4 320w
Computer(LCD display) 150w 2 300w
Printer 250w 1 250w
Fax Machine 150w 1 150w
Refrigerator 120w 2 240w
Washing Machine 300w 1 300w
Microwave 1500w 1 1500w
Electric Cooker 300w 1 300w
Air Conditioner(1HP) 750w 4 3000w
Satellite Tv Receiver/Vcd 25w 1 25w
Color Tv(32 inch) 150w 2 300w
Water Pump 200w 1 200w
Total 7105w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the hybrid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

  • 100%green energy,no pollution,no noise
  • High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
  • Stand-alone system,easy installation and operation
  • Nice after-sale service,provide installation guide and technical support ​

Packing details:

  • Solar panels are packed in carton and pallet
  • PV combiners and inverter are packed in wooden box
  • Solar charge controller,gel battery,and cables are packed in carton
  • Solar panel racks are in cartons and bulk packing​

Solar Photovoltaic System case:

residential solar power systems

Company profile

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

solor power panel self install

Main business: solar power system one stop solutions,  solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

complete solar system for home

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
