10kw Grid Solar System Good Quality 10Kw Complete On Off The Grid Solar System


SYSTEM TYPE : On/Off Grid Solar System


SHIPPMENT : Free shipping

PAYMENT : 30% deposit by T/T , 70% balance by T/T before shipment

Whatapp:+86 13690853732


Product Details

ON/OFF Grid  solar inverter combines the best from grid-tied and off-grid solar systems. These systems can either be described as off-grid solar with utility backup power, or grid-tied solar with extra battery storage.

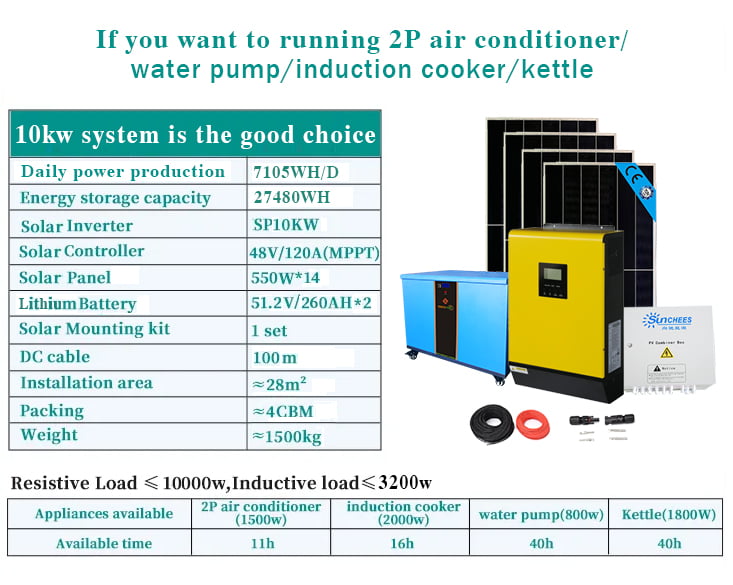

 Off grid solar power supply system Model: SP10000W
System Basic Information  Solar panel rated output power:   10KW
Allowable max loads power : 10KW

 Solar Panel With Battery

Mono             Poly

Solar panel               type: SP500W Half Cell mono
Max power :500w / Vmp:40.5V  Voc:48.7V Solar Cell Use  Half Cell
Imp 12.34A    Size : 2176*1098*40mm
25 years life time  (CE TUV) Warranty:10 years ,ship the free one for service
Connect way:2pcs solar panel in series is each string. 5strings connect to PV combiner
Effieiency performace:25%years 80%,20years 85%.10 years 90%
Total : 10PCS Terminal block: IP65 with MC4 connector
PV combiner    PV combiner                  Modell: PC4-48V
Multiple PV strings inputs ;Simplify wiring between PV array and controller
protections to controller ;  thunderstorm& surge protection
Total :1PCS  Warranty:2 years , ship the free one for service
Hybrid Solar Inverter  ON/OFF Grid Hybrid Solar Inverter
Programmable multiple
operation modes: Grid-tie, Offgrd and grid-tie with backup
with MPPT 48V 100A
Charging efficiency; 90%-95%, Built-in AC charger (public network)
Output: 220v, 230v, 240 V(optional) Product size:370*195*570mm
Total : 1 Set Warranty :1 years, ship the free a main board by DHL or FEDEX for service
LiFePO4 lithium battery LiFePO4 lithium battery         13.31KWH(260AH/51.2V)
Rated voltage:51.2V(43.2V-58.4V)
Lifespan: 8-10 years.Full discharge cycle times:more than 2000 times
 Connect way: 1pcs connect to solar hybrid inverter
Total : 1PC  warranty :3 years
Solar panel rack  Solar panel rack           Slope Rooftop or Flat rooftop
 including complete fittings, wind load:55m/s,snow load:1.5kn/m2  structure:Anodized Aluminum+stainless steel, Angle adjustable
Total : 1 Set
Solar panel rack  PV Cable
2pcs 16mm2*1M battery cable ;4mm2 PV cable 100M;MC4 terminal connectors
Home Made Solar Panel System HYBRID SOLAR SYSTEM
1. Generate solark
2. Use it directly
3. Store it for later use
4.Use stored energy
5. Feed surplus energy into the grid
6. Monitoring and control

ON-GRID Inverter With Energy Storage

Operation without battery
1.Pure sine wave output
2. Self-consupmtion and Feed-in to the grid
3. Programmable supply priority for PV. Battery or Gird
4User-adjustable charging current and voltage
5.Programmable mulitple operation modes: Grid-tie. off-gird and gird-tiewith backup
6.Monitoring software for real-time status display and control
7.Parallel operation up to 9 units
8.Battery Independent system

Solar Powered Generator 10000 Watts

 LiFePO4 Battery System For Households Use

Residential Wind Power Cost


  • Iron Phosphate-lithium Battery Powerwall: 95% DOD, More than 6000 cycle times
  • Long warranty period:5 years, Real life span can Last for more than 10 years.
  • Higher energy density,smaller volume for household.
  • Support Connected in parallel mode for expansion (up to 6 pieces)
  • Photovoltaic system: this battery pack is designed for household photovoltaic systems.
  • Battery management system(BMS): the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
  • Expand ability: this battery pack can be easily expanded by adding expansion battery packs in parallel connection.
  • Easy to move.Lithium battery box with 4 pcs wheels.

Solar Panel

5kw off grid solar power system EVA Sealed Film
*Top quality EVA sealed film in China
*Resistance in both high and low
*Sealed adhesive durability more than
Laser Half Cut Cell
*Solid PID resistance ensured by solar
*process optimization and careful
module BOM selection
*Laser accurately cut
* Both 6BB89BB available
home solar system cost
residential solar power systems Junction Box
*Standard photovoltaic cable
dedicated photovoltaic MC4
*Waterproof grade IP68
*Good heat dissipation
performance, low loss, long service

SUNCHEES advantages
We have a separate cell detection workshop, which will detect and sort cells from four aspects: cell efficiency / power / color / El;

solar system wholesale contact us

Best Batteries For Solar System 48V Lithium Battery Pack For Solar System 24V Lifepo4 Battery For Solar System

What is the purpose of solar cell sorting? (100% detection rate)
1. Encency s. powver sorting: with the povver difference of O. twiplete as the standard,. the battery pleces are dsunguished, unich can ensure tha: the power error of the tnished solar panel is reduced
controlled within sw every day and there will not be such a large power cimerence;
2. color the machine carries cuf color sorting on the battery pieces in the form of graboing lignt spots (1.9 for 9 color numbers). which can largely avoid the problam of color ciferene
3. Er El desecion is a very important detection rich can avoid or control the occurrence of hiccen cracks in tnisned products. if there are hidden cracks, the le cf the battery panel will be affected:

     Warranty policy:

  • Solar panel has 10 years warranty,during warranty if any quality problem,we will ship new one for replacement.
  • lithium  battery has 3 years warranty,during warranty if any quality problem,we will ship new one for replacement.Quality problem means acid leakage or irregular shape.
  • Inverter,charge controller,and PV combiner have 2 years warranty,during warranty if any quality problem,we will ship free PCB for replacement

Customer Installation Feedback​

solar power supply for home

Ghana 40 'container solar power  system

Company profile:

solor power panel self install

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Main business: solar power system one stop solutions,  solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

complete solar system for home
lithium battery for solar system

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

European CE certification standard

On Grid Solar System Price

solar system wholesale adventagesolar system wholesale contact us
