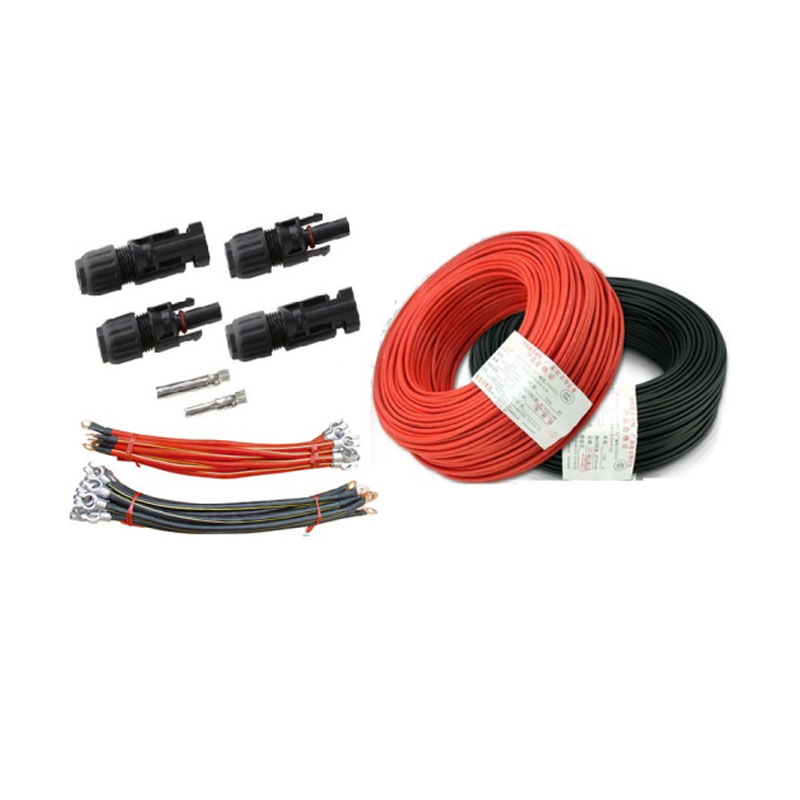

PV Cables Product Introduction

Sunchees 4mm² PV1-F solar cable is specially designed for photovoltaic power generation systems.
It adopts high-purity oxygen-free copper conductor and high-performance weather-resistant insulation material, with excellent UV resistance, high and low temperature resistance, aging resistance and waterproof performance.
It is widely used in DC power transmission between solar panels, inverters, combiner boxes and other equipment, ensuring stable and efficient operation of the solar system.

PV cable Features

• 4mm² Pure Copper Conductor
Low resistance, low power loss, high conductivity, improves overall solar system efficiency.

• PV1-F Standard Design
Professional photovoltaic DC cable, suitable for long-term outdoor use.

• UV & Weather Resistant
Withstands strong sunlight, rain, snow and extreme temperatures from -40℃ to +120℃.

• Halogen-Free & Flame Retardant
Low smoke, non-toxic, high safety, meets international environmental and safety standards.

• Red & Black Color Optional
Clear distinction between positive and negative poles for easier installation and maintenance.

• Stable & Durable
High mechanical strength, anti-aging, long service life even in harsh outdoor environments.

PV cable and ordinary cable difference: photovoltaic cable exposed to the sun, solar systems are often used in harsh environmental conditions, such as high temperature and ultraviolet radiation.

Parameter Name	Parameter Value
PV Cables - Rated Voltage	DC: 1.8kv AC U. / U: 0.6 / 1kv
PV Cables -Cross Section	4mm²
PV Cables -Color	Red / Black
PV Cables -Application	Solar panel, inverter, combiner box, PV power station
PV Cables -Rated current	55A
PV Cables -Number of cores	NO
PV Cables -conductor	copper wire structure NO./mm 56 / 0.3
PV Cables -Conductor stranded outside diameter	2.58mm
PV Cables -Test voltage kV / min	6.5 / 5 No breakdown
PV Cables -Operating voltage AC / DC (KV)	0.6 ~ 1.0 / 1.8
PV Cables -Rated temperature	-40 ~ +90 ℃
PV Cables -Temperature range	-40 ℃ ~ +90 ℃
PV Cables -conductor resistance (20 ℃)	≤4.75Ω / km
PV Cables - Conductor	IEC 60228, 5 type stranded tinned copper wire
PV Cables -Maximum operating temperature	120 ℃
PV Cables -Working environment temperature ℃	-40 ~ +90
