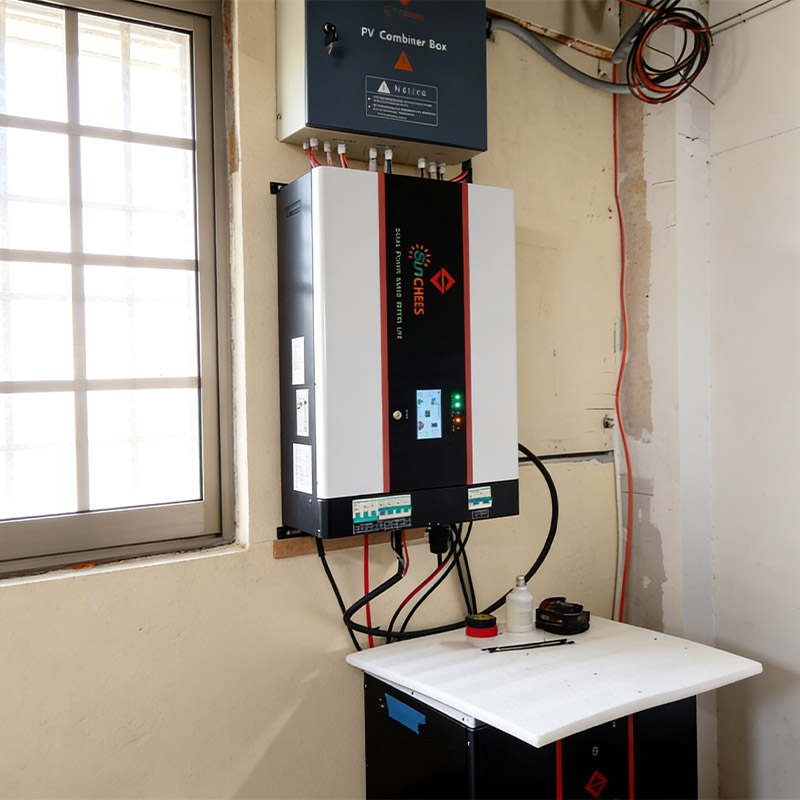

10KW 48V SPLIT PHASE SOLAR INVERTER Parameter Sheet

Model: MPPT		10kw
Power rating(w) 220VAC-240VAC		10000
Power rating(w) 110VAC-120VAC		5000
Battery	rated voltage(VDC)	48
	AC Charge Current	30A MAX
	Battery Type	Can be set
Input	Voltage Range	170-275VAC
	frequency	45-65Hz
Output	Voltage Range	110VAC-120VAC/220VAC-240VAC; ±5%
	frequency	50/60Hz±1%( Inverter mode)
	Output wave	Pure Sine Wave
	Change time	＜10ms(Typical load)
	Efficiency	＞85%（80% Resistive load）
	overload	110-120%/30S；＞160%/300ms；
	Protection function	Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller	MPPT Voltage Range	72V~150VDC
	PV Power	120A(7200W)
	Rated charge current	120A(Max)
	MPPT efficiency	≥99%
	Average charging voltage(lead acid battery	56.8VDC
	Floating charge voltage	55VDC
Operating ambient temperature		-15-+60℃
Storage ambient temperature		-20 - +60℃
Operating / storage environment		0-90% No Condensation
Dimensions:W * D * H (mm)		805475237

Why choose our inverter?

Low frequency inverter is transformer based inverter.The advantageof the low frequency inverter is its simple structure, and variousprotection functions can be realized at a lower voltage. Becausethere is a power frequency transformer between the inverterpower supply and the loads, the inverter operates stably,reliably, with strong overload capacityand shock resistance,and can suppress higher harmonic components in the wave form.However, the power frequency transformeralso has the problemsof large size, bulkines sand high price, and its efficiency is also lowerthan the high frequency inverter, and the no-load loss is higher.

Parameter Name	Parameter Value
Solar Inverter - PV Charging Current Range	150A
Solar Inverter - Max Input Power	12000W
Solar Inverter - MPPT Voltage Range	72-150VDC
Solar Inverter - Battery Voltage Range	40-60VDC
Solar Inverter - Output	110V 220V
Solar Inverter - Output Wave form	Pure Sine Wave
Solar Inverter - Rated Output Power	12000W
Solar Inverter - Rated Battery Input Voltage	48V
Solar Inverter - Product size	805475237mm
