About HIC Series Hybrid Solar Power Inverter

MHlC series with dual MCU design, PV chargecontroller and inverter integrated optimizationsolutions, to provide users with the best experience.Pure sine wave output to meet various types of load; mains supply preferred mode / power saving mode/battery preferred mode for easy meeting of theneeds ofdifferent users. Using intelligent optimization SOC control, a separate three-stage solar chargemanagement, improve the effectiveness of thecharging of the battery. LCD display integrated inverterand photovoltaic panels, equipment operating statusintuitive, concise manipulation.lt is widely applied tofamilies, schools, streets, border,pastoral, industrialequipment, satellite communications equipment,ships and so on.

15kw Solar Inverter

Model: MPPT		15KW
Power rating(w) 110V&220V		15000
Battery	rated voltage(VDC)	96
	AC Charge Current	30A MAX
	Battery Type	Can be set
Input	Voltage Range	170-275VAC
	frequency	45-65Hz
Output	Voltage Range	110V&220V; ±5%
	frequency	50/60Hz±1%( Inverter mode)
	Output wave	Pure Sine Wave
	Change time	＜10ms(Typical load)
	Efficiency	＞85%（80% Resistive load）
	overload	110-120%/30S；＞160%/300ms；
	Protection function	Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller	MPPT Voltage Range	130V~180VDC
	PV Power	100A(9600W)
	Rated charge current	100A(Max)
	MPPT efficiency	≥99%
	Average charging voltage(lead acid battery	113.6VDC
	Floating charge voltage	110VDC
Operating ambient temperature		-15-+60℃
Storage ambient temperature		-20 - +60℃
Operating / storage environment		0-90% No Condensation
Dimensions:W * D * H (mm)		740400930

Solar inverter smart display function

1. Real-time Data: Current power generation, load power, battery charging/discharging power, grid input/output power.

2. Key Status: Battery charge (SOC), input/output voltage/current.

3. Health Overview: Check for fault alarms and the operating status of each module.

4. Key Parameter Settings and Control Center

4.1 Battery Management (Most Commonly Used)
1. Switch Battery Type: Lead-acid, Lithium-ion
Fine-tuning Charging/Discharging Parameters: Set battery charging current, charging cut-off voltage, discharging cut-off voltage, equalization charging voltage, etc., to protect battery life.
Mode Settings: Set battery charging priority (e.g., whether to use electricity first or charge first).
2. Working Mode Switching
One-click Switching: Switch between "Mains Priority Mode" and "Battery Priority Mode".

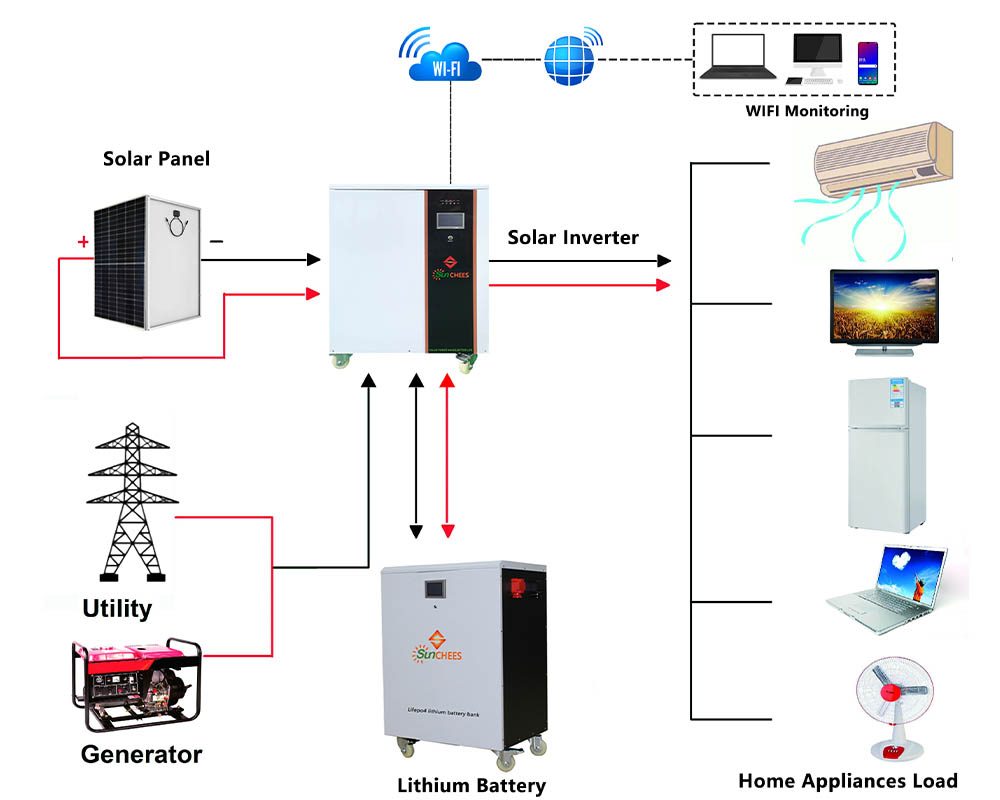

12kw 15kw solar inverter connect
