SUNCHEES Solar inverters are safe and worry-free, with intelligent monitoring, making them your home photovoltaic manager. An off-grid split-phase inverter is designed to accommodate a variety of loads, facilitating the simultaneous use of 110V and 220V loads, or 120V and 240V loads. Off-grid inverters are also convenient for locations with limited utility power, allowing appliances to be powered directly from solar power or batteries. SUNCHEES split-phase inverters are sold in numerous countries and are guaranteed quality. Individuals and dealers interested in solar inverters are welcome to inquire.

25kw Solar Inverter

Model: MPPT		20KW
Power rating(w) 110V&220V		20000
Battery	rated voltage(VDC)	240
	AC Charge Current	30A MAX
	Battery Type	Can be set
Input	Voltage Range	170-275VAC
	frequency	45-65Hz
Output	Voltage Range	110V&220V; ±5%
	frequency	50/60Hz±1%( Inverter mode)
	Output wave	Pure Sine Wave
	Change time	＜10ms(Typical load)
	Efficiency	＞85%（80% Resistive load）
	Overload	110-120%/30S；＞160%/300ms；
	Protection function	Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller	MPPT Voltage Range	130V~180VDC
	PV Power	100A(9600W)
	Rated charge current	100A(Max)
	MPPT efficiency	≥99%
	Average charging voltage(lead acid battery	113.6VDC
	Floating charge voltage	110VDC
Operating ambient temperature		-15-+60℃
Storage ambient temperature		-20 - +60℃
Operating / storage environment		0-90% No Condensation
Dimensions:W * D * H (mm)		9006001380

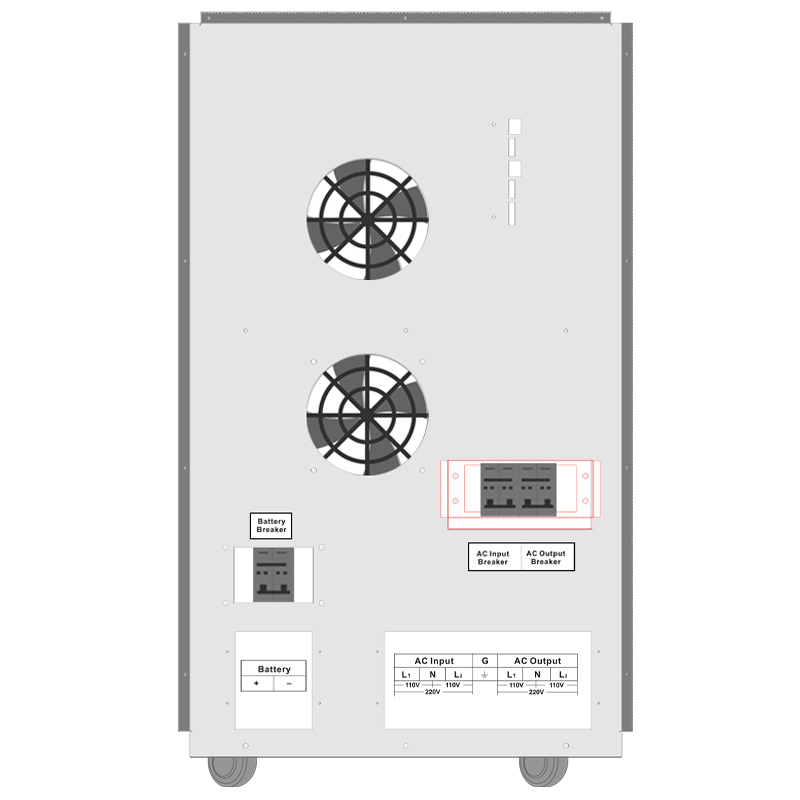

20kw Solar Inverter Side Port

L₁+N=120V
L₂+N=120V
L₁+L₂=240V
