36KVA Three-phase power frequency inverter Product features

The inverter uses digital vector control technology of DSP, MCU and DDC real-timeprocessing to monitor the system.
The combination of advanced IGBT high frequency pulse width modulation (PWM) technology reduces the system noise and power loss.
The AC output of inverter is equipped with isolation transformer, which can effectively protect the switching power supply of computer, network and communication equipment from being damaged by DC current. At the same time, it can also show excellent dynamic performance for nonlinear load, improve the load capacity of the machine, and have good load compatibility.
Perfect protection function, with AC input over-voltage and undervoltage protection, output over-voltage and undervoltage protection, output overload and short circuit protection, batteryundervoltage early warning protection and internal over-temperature protection, so as to greatly ensure the stability and reliability of system operation.
The use of high-power IGBT devices makes the inverter have strong overload capacity and
impact resistance, and enhances the adaptability to the power grid.

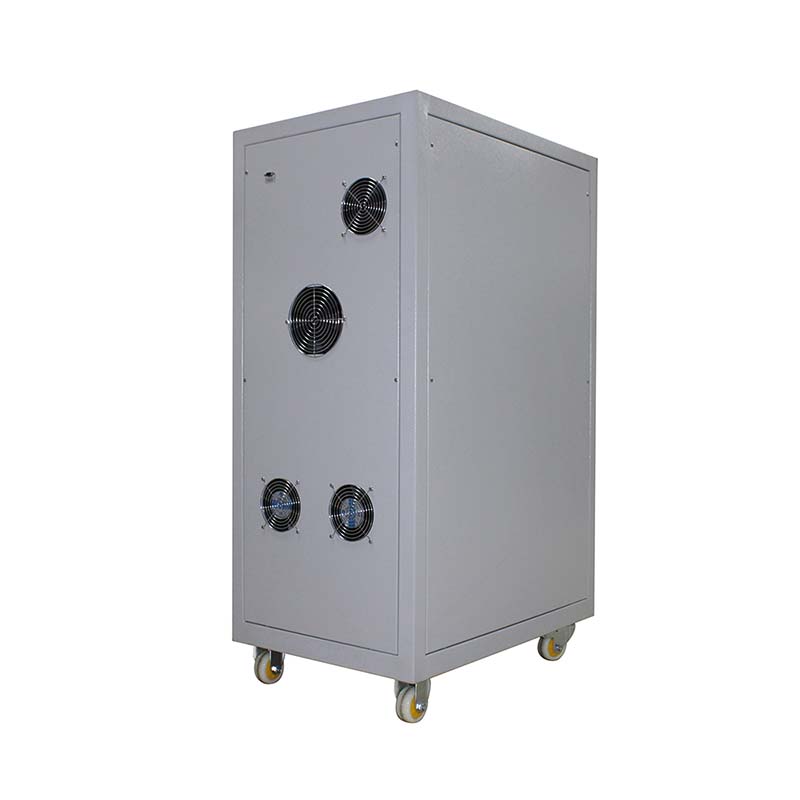

36KVA Three-phase power frequency inverter

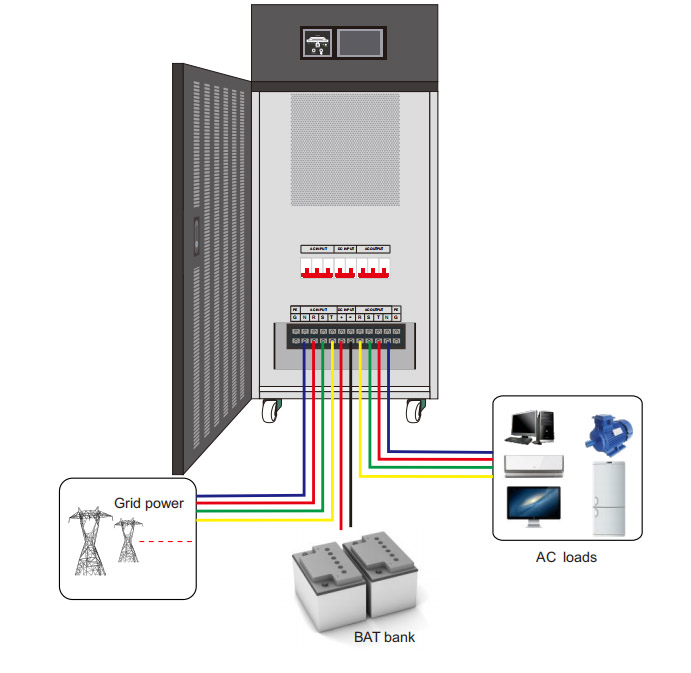

Connection diagram

Parameter Name	Parameter Value
Solar Inverter - Model	36kva
Solar Inverter - BAT voltage	192V/220V/240V/360V/384V
Solar Inverter - Phase	three-phase R+S+T+N+G
Solar Inverter - Input voltage range	220VAC+20%
Solar Inverter - Frequency	60hz
Solar Inverter - Output voltage	INV mode: 220VAC+3%, AC mode: 220VAC+20%
Solar Inverter - Frequency (AC mode)	60hz
Solar Inverter - Frequency (INV mode)	60hz±0.1Hz
Solar Inverter - Over-load (AC mode)	110%~130% with 1mins, 110%~130% with 1min, >130% with 1s
Solar Inverter - Over-load (INV mode)	110%~110% with 30s, 110%~130% with 10s, >130% with 1s
Solar Inverter - Current peak ratio	3 max
Solar Inverter - Switching time	<10ms (Typical load)
Solar Inverter - Wave form	Pure sine wave
Solar Inverter - Total harmonic distortion	Linear load<3%; nonlinear load<5%
Solar Inverter - Balance load voltage Unbalance	<±1%
Solar Inverter - Unbalance load Voltage	<±5%
Solar Inverter - Efficiency	85%
Solar Inverter - Transient load voltage transients (from 0 to 100%)	<±5%
Solar Inverter - Cooling	Fans cooling
Solar Inverter - Operating temp	0-40°C (The life of battery will be shortened in the environment of >25°C)
Solar Inverter - Operating humidity	<95% and there is no condensation
Solar Inverter - Operating altitude	<1000m (Power decreases by 1% for every 100m increase. Max 5000m)
Solar Inverter - Noise	<58dB (1meter)
Solar Inverter - Display	7inch touch screen system
Solar Inverter - Computer communication interface	RS232, (RS485, Network remote monitoring options)
Solar Inverter - Machine size (WDH)	7305701150
Solar Inverter - Package size (WDH)	8507001250
Solar Inverter - Net weight (kg)	330
Solar Inverter - Gross weight (kg)	360
