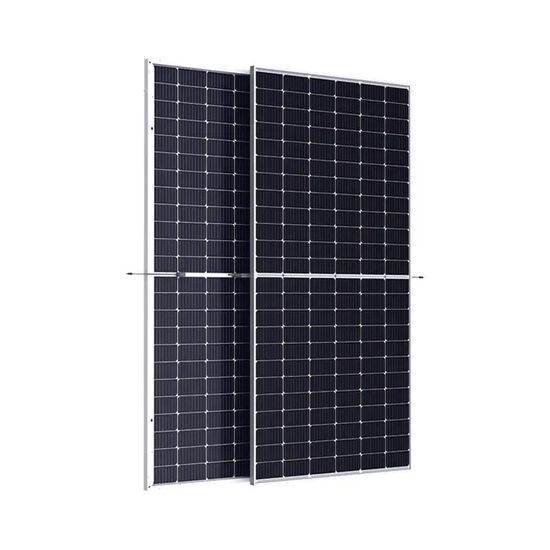

600W double-glass solar panel

Solar Panel Electrical Parameter at STC

Maximum Power	600W
Operating Voltage at Maximum Power	44.66 V
Operating Current at Maximum Power	13.44 A
Open Circuit Voltage	52.81 V
Short Circuit Curent	14.46A
Module Efficiency	23.20
Power Tolerance	0~+5W W

*Standard test conditions(STC):airmass AM1.5,irradiance 1000W/m2,cell temperature 25℃.

Electrical Parameter at NOCT

Maximum Power	445W
Operating Voltage at Maximum Power	40.62V
Operating Current at Maximum Power	10.97A
Open Circuit Voltage	49.44V
Short Circuit Current	11.63A

Solar panel Data

Cell Type	182Monocrystalline
Number of Cells	144 pcs(6x24)
Module Dimension	2279113430mm
Weight	33kg
Glass	3.2mm high transmittance,anti-reflection coated tempered glass
Back Sheet	transparent
Frame	Anodized aluminum alloy
Junction Box	Protection degree IP68
Cable	4mm区，+400-200MM/±1400MM Photovoltaic dedicated cable
Quantity of diodes	3
Wind Load/Snow Load	2400pa/5400pa
Connector	Compatible MC4 connector

Company profile

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Exterior and interior view of a solar energy company office, featuring Sunchess headquarters and international project display boards.

Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

Automated solar panel production line with quality inspection and robotic assembly, supporting high-efficiency 15000 watt solar systems.

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

Solar inverter and battery production line showing MPPT solar system assembly and packaging for 15KW off-grid solar kits.
