What’s Included in the 20KW Split Phase Off-Grid Solar Kit (20000 Watt Solar System)

Item	Model/Description	Qty
Solar Panels	SP600W mono solar panel	24 pcs (Total 14.4kW)
Combiner Box	PC4-192V	1 pc
MPPT Charge controller	100A/192V	1 pc
Lithium Battery Pack	40.8kwh (200Ah/204.8V) with Battery Management System (BMS) & Cables	1 set
20KW Inverter	110V&220V Pure Sine Wave IGBT Module solar Inverter with WIFI	1 unit
Mounting Structure	Ground or Roof Mounting Support Kit	1 set
PV Cable	4mm² Solar-Grade Cable	1200 meters

Stable and reliable self-generation can resist electricity price fluctuations and ensure energy security! 20kw Solar power system Suitable for homes, farms, villas and other places

Why choose our inverter?

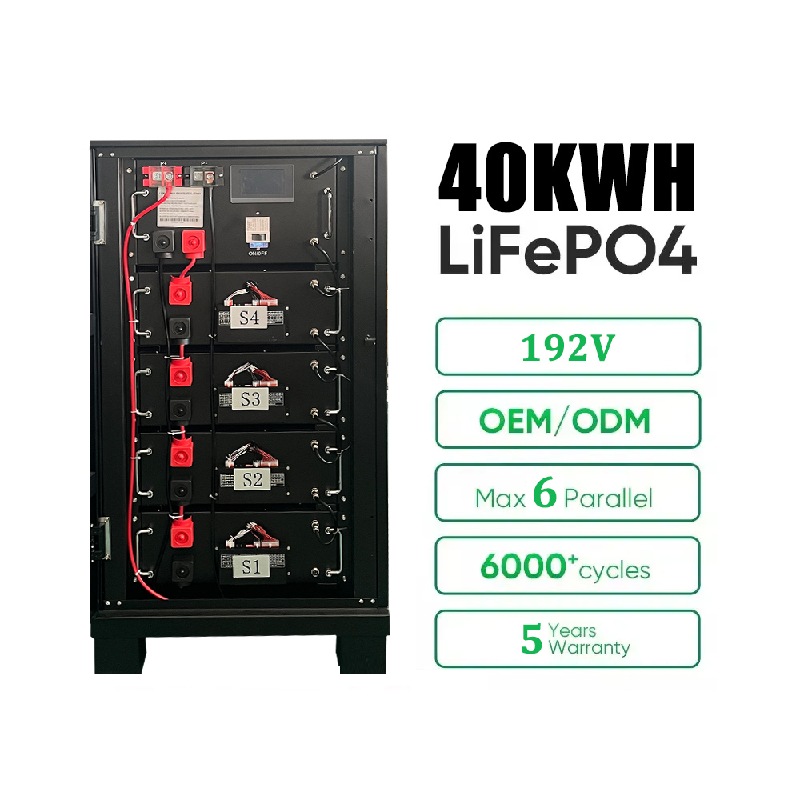

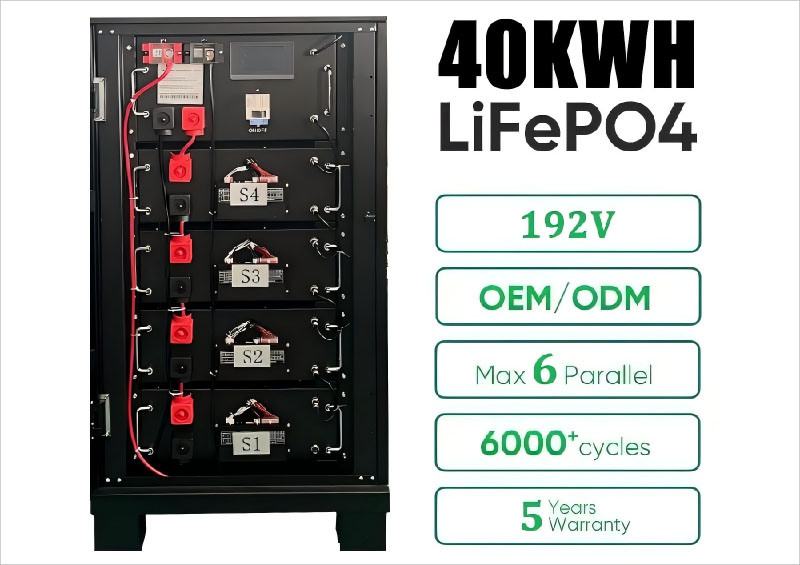

LiFePO4 lithium battery
Mode	LPBS204.80VDC200
Rated Voltage	192V
Capacity	204.8V41KWH
Lifespan	8-10 years
Cycle Life	more than 6000 times
Charge voltage	216V
Discharge Voltage Range	174V-216V
DOD	96%
Certifiction	TUV/CE
Battery pack dimensions	*135010101780(mm)*

**SP600W mono solar panel**
Max power	600w
Solar Cell	Monocrystalline
Maximum Power Current (IMP)	14.3A
MaximumPowerVoltage(VMP)	43.32V
Open Circuit Voltage(VOC)	51.45V
Product Dimension	*2279 1134 30 mm*
Warranty	25Years
Certificates	TUV、IEC,CE

After-sales and repair

	Warranty	After-sales service
Solar panel	30 years	Free replacement
Lithium battery	5 years	Free replacement
Solar inverter	2 years	Free replacement of power board
Other parts	2 years	Free replacement

Company profile

Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.

Exterior and interior view of a solar energy company office, featuring Sunchess headquarters and international project display boards.

Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .

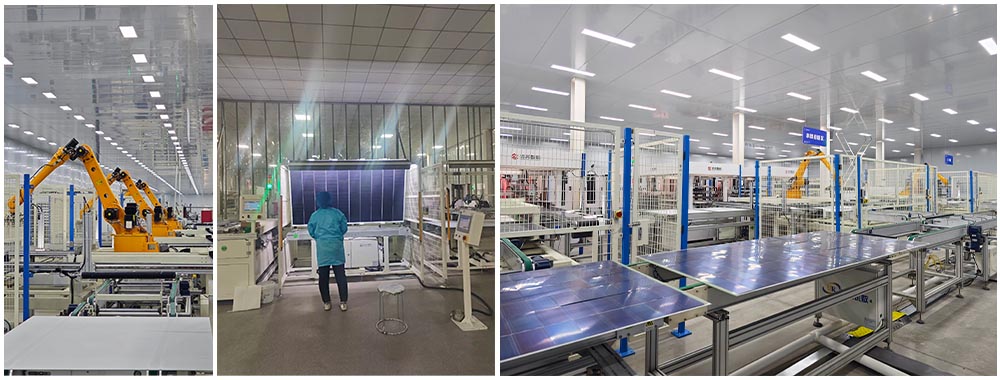

Automated solar panel production line with quality inspection and robotic assembly, supporting high-efficiency 15000 watt solar systems.

Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.

Solar inverter and battery production line showing MPPT solar system assembly and packaging for 15KW off-grid solar kits.

600W Monocrystalline Solar Panel
Max power：600w	Solar Cell：Monocrystalline
Maximum Power Current (IMP)：13.90A	Output Tolerance: ±3%
MaximumPowerVoltage(VMP)：39.18V	Open Circuit Voltage(VOC)：47.40V
Short Circuit Current(ISC）：14.01A	Temperate coefficient of Isc: 0.05%/℃
Frame: Aluminum alloy frame	Temperature range: －40℃～ +85℃
Product Dimension：2115 * 1052 *40 mm	Weight: 20.5 kg
Certificates：TUV、IEC,CE	Warranty：25Years

20kW 192V Inverter
Rated power：20000W	Rated voltage：192V
Output power wave: Pure sine wave	AC input voltage range :170-275VAC
Input Frequenc : 45-65Hz	Battery voltage range:10.5-15VDC
Invert Mode
Output Waveform: Pure Sine Wave	Efficiency (100%load) : >85%
Output frequency range：50/60HZ±1%	Battery voltage :192V
Product size：7335201000

204.8V 300Ah LiFePO4 Lithium Battery
Battery Capacity: 300Ah	Battery Power: 204.8V41KWH
Rated Voltage: 192V	Maximum Charging Current: 150A
Maximum Discharging Current: 150A	Charge Voltage: 216V
Discharge Voltage Range : 174V-216V	Operating Temperature: -4°F to 140°F
Cycle Life: ≥6000	Size: 5508601150(mm)
Weight: 440kg	Lifespan：8-10 years
