Project Case Study: 30kW Split-Phase Solar System for Restaurant in Ecuador

Project Background

 "El Sabor Andino" Restaurant (Quito, Ecuador)

Objectives

   Reduce high commercial electricity rates ($0.22/kWh)

   Enhance sustainability branding

    Mitigate grid instability

   Lower operational costs

 2. System Specifications

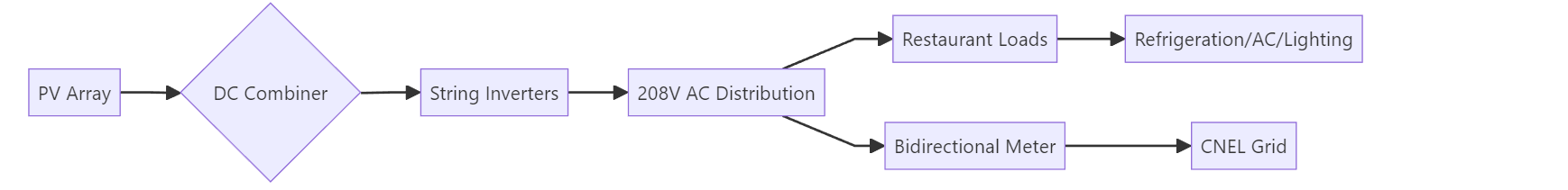

3. Technical Architecture

Key Features

✅ Native 208V split-phase compatibility

✅ Phase balancing for kitchen equipment

✅ 15ms grid-failover transition

 4. Installation Highlights

-Roof Integration

•    300m² flat concrete roof at 15° tilt (rainwater optimization)
•    Zero-penetration mounting system

-Grid Compliance

  ⚡ 72-hour CNEL interconnection approval

  ⚡ ARCONEL 004/2021 regulation adherence

-Smart O&M

   >92% generation forecast accuracy (Quito solar database)

 5. Performance Metrics (Year 1)

6. Economic Analysis

Text {Annual Savings} = 42,000kWh \times \$0.22 \times 0.89 = \$8,240

-ROI Profile

• 30% CLEER Program subsidy
• Payback: 4.2 years (8-10% annual tariff escalation)
• 25-year savings: >\$180,000

 7. Client Testimonial

> "The system powers our full operational load - especially AC and kitchen equipment during lunch peaks. During outages, our walk-in freezer maintains temperature, preventing food spoilage. 75% reduction in monthly bills and positive customer feedback on our sustainability commitment."

> ― Carlos Mendoza, Operations Director

 8. Technical Innovations

| Challenge                         | Solution                          |

| High UV radiation            | Anti-PID modules (<0.5% degradation/yr) |

| Grid volatility (190-250V)| Wide-input voltage inverter (180-280V) |

| **Synergy Innovation**   | HVAC load matching with PV output |

Ecuador-Specific Design Advantages

1. Grid Architecture: Native split-phase compatibility

2. Altitude Optimization: 3,000m+ certification

3. Corrosion Resistance: Marine-grade components

4. Rainy Season Performance:

   - 15° tilt enhances self-cleaning

   - Hydrophobic coating boosts wet-season yield by 15%

This project is recognized by Ecuador's Ministry of Tourism as a "Sustainable Gastronomy Model" with 20% capacity headroom for future battery integration.

Key Terminology Localization:

- Ecuadorian grid operator: CNEL(Centro Nacional de Control de Energía)

- Regulatory standard: ARCONEL 004/2021

- Incentive program: CLEER (Clean Energy Economic Development)

- Voltage specification: 208V split-phase(Commercial standard)
