SUNCHEES Solar Energy System For Home, Home Solar Systems Complete, Solar Systems Complete Kit

What’s in an off-grid solar system?

We assemble, wire, and test all the parts necessary to run your off-grid system right in our warehouse. Our designers are pros at building flexible systems that can be expanded if your energy needs change down the road.

10KW off grid solar system configuration:

	Solar panel： Simply put, panels absorb sunlight and convert it into electricity. We hand-select panels that are compatible with the batteries, power centers and other components packaged with your off-grid system. We double-check the math on voltage, amperage and string size to make sure you don’t damage your components. Where possible, we feature US-made panels with warranties that eclipse the industry standard. Your off-grid system runs 24/7, so your panels should be as reliable as possible. We’ve got you covered.

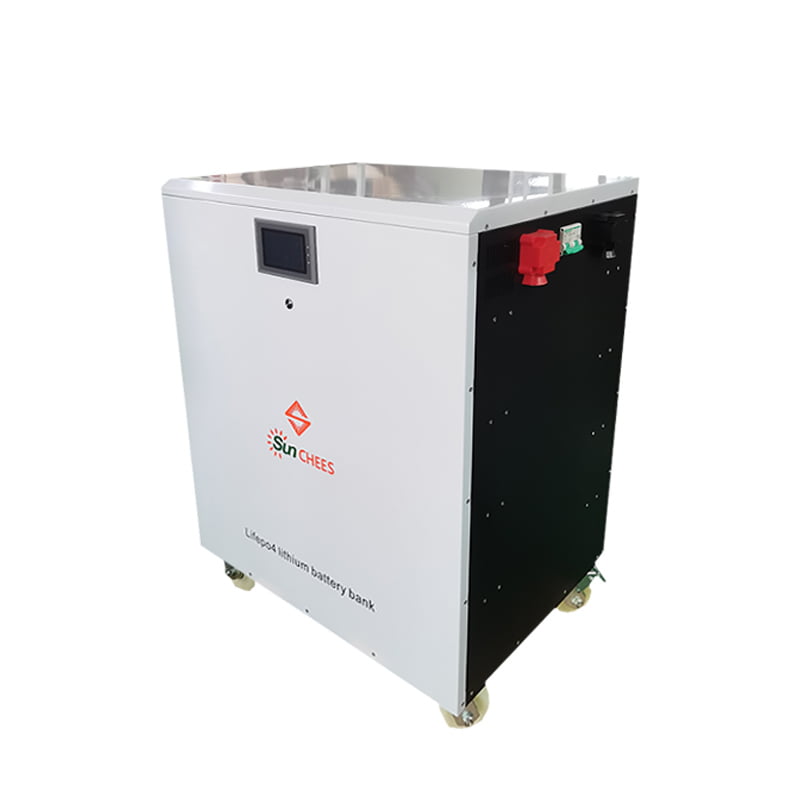

LiFePO4 lithium battery ： Batteries make off-grid solar possible. Without access to the utility grid, you need a reliable way to store the energy you generate for later use. Your battery bank keeps your appliances running — even at night or during winter, when the sun isn’t shining. It’s critical to build a battery bank that can store enough energy to get you through off-peak production periods. Our available battery banks come packaged with the capacity to get the job done.
	solar inverter： solar inverter is off-grid system with everything you need to get started: inverter, charge controller,and circuit breakers. We assemble in a one box and test them on our workbench to make sure everything works the first time and every time. Once the solar inverter passes our internal tests, we label the final connection points for you to make installation as easy as possible.
Once you have the components, you’ll need to mount them in place. We offer several racking solutions to mount your system. Ground mounts can be aligned at the perfect angle to get the most output from your panels. Roof mounts are more cost-effective because they take advantage of your existing roof structure.

10KW solar system load reference:

10Kw Solar home System
Load Name	Load'S Watt	Qty	Total Watt
Lights	11w	20	220w
Fan	80w	4	320w
Computer（LCD display）	150w	2	300w
Printer	250w	1	250w
Fax Machine	150w	1	150w
Refrigerator	120w	2	240w
Washing Machine	300w	1	300w
Microwave	1500w	1	1500w
Electric Cooker	300w	1	300w
Air Conditioner（1HP)	750w	4	3000w
Satellite Tv Receiver/Vcd	25w	1	25w
Color Tv（32 inch）	150w	2	300w
Water Pump	200w	1	200w
Total			7105w

Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

How does the off grid solar power system work:

This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads

Advantage:

100%green energy，no pollution，no noise
High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
Stand-alone system,easy installation and operation
Nice after-sale service,provide installation guide and technical support

Packing details:

Solar panels are packed in carton and pallet
PV combiners and inverter are packed in wooden box
Solar charge controller,gel battery,and cables are packed in carton
Solar panel racks are in cartons and bulk packing

Solar Photovoltaic System case:

Company profile：

	Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.
Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .
	Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
