Sunchees Customer Installation Feedback and Comments
What’s Included in the 25KW Split Phase Off-Grid Solar Kit (25000 Watt Solar System)
| Item | Model/Description | Qty |
|
Solar Panels |
SP600W mono solar panel |
40 pcs (Total 24kW) |
|
Combiner Box |
PC4-192V |
1 pc |
|
100A/192V |
1 pc | |
|
Lithium Battery Pack |
61kwh (300Ah/204.8V) with Battery Management System (BMS) & Cables |
1 set |
|
25KW Inverter |
110V&220V Pure Sine Wave IGBT Module solar Inverter with WIFI |
1 unit |
|

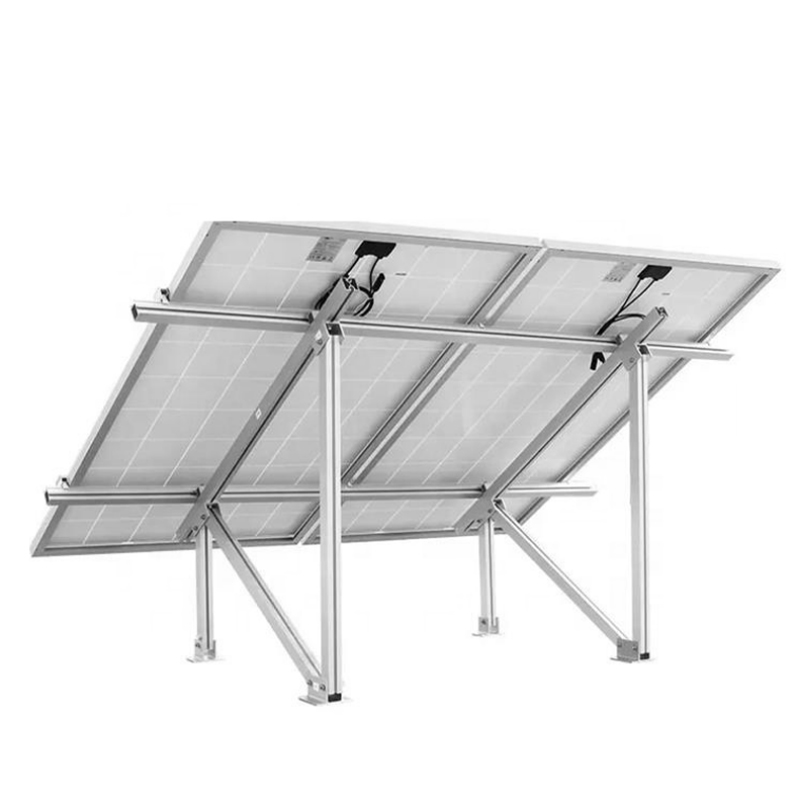

Mounting Structure |
Ground or Roof Mounting Support Kit |
1 set |
|
PV Cable |
4mm² Solar-Grade Cable |
1200 meters |
Stable And Reliable Self-generation Can Resist Electricity Price Fluctuations And Ensure Energy Security! SUNCHEES 25kw Solar power system Suitable for homes, farms, villas and other places
LiFePO4 lithium battery |
|
|
Mode |
LPBS204.80VDC300 |
| Rated Voltage | 192V |
| Capacity |
204.8V41KWH |
|
Lifespan |
8-10 years |
|
Cycle Life |
more than 6000 times |
|
Charge voltage |
216V |
|
Discharge Voltage Range |
174V-216V |
|
DOD |
96% |
| Certifiction | TUV/CE |
|
Battery pack dimensions |
1350*1010*1780(mm) |
|
Max power |
600w |
 |
| Solar Cell | Monocrystalline | |
| Maximum Power Current (IMP) |
14.3A |
|
| MaximumPowerVoltage(VMP) |
43.32V |
|
| Open Circuit Voltage(VOC) |
51.45V |
|
| Product Dimension |
2279 * 1134 *30 mm |
|
| Warranty | 25Years | |
| Certificates | TUV、IEC,CE |
After-sales and repair
|
|
Warranty |
After-sales service |
|
Solar panel |
30 years |
Free replacement |
|
Lithium battery |
5 years |
Free replacement |
|
Solar inverter |
2 years |
Free replacement of power board |
|
Other parts |
2 years |
Free replacement |
Company profile
Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.
Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .
Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
FAQ
Q: What can be included for this system from Sunchees?
A: This system includes: solar panel, PV array combiner, Hybrid solar inverter with built-in MPPT controller, Maintenance-free Gel battery, Mounting structure, cables etc.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide complete set solution. If you don't need complete set, basic parts are available too.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams make solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. Same power system may be with different configuration.
Q: Who will arrange the shipment?
A: We are doing FOB trade term. If you need, we could help you to arrange the shipment, we have long-term cooperation with good service forwarders.
